I include the source file in OpenScad and several preset exports, in dimensions S, M, MS, XL. Size M is recommended, MS reduced for Prusa MK3 and MK4 printers. I also include the following data for each dimension:

• BOM
• Steel cover .DXF

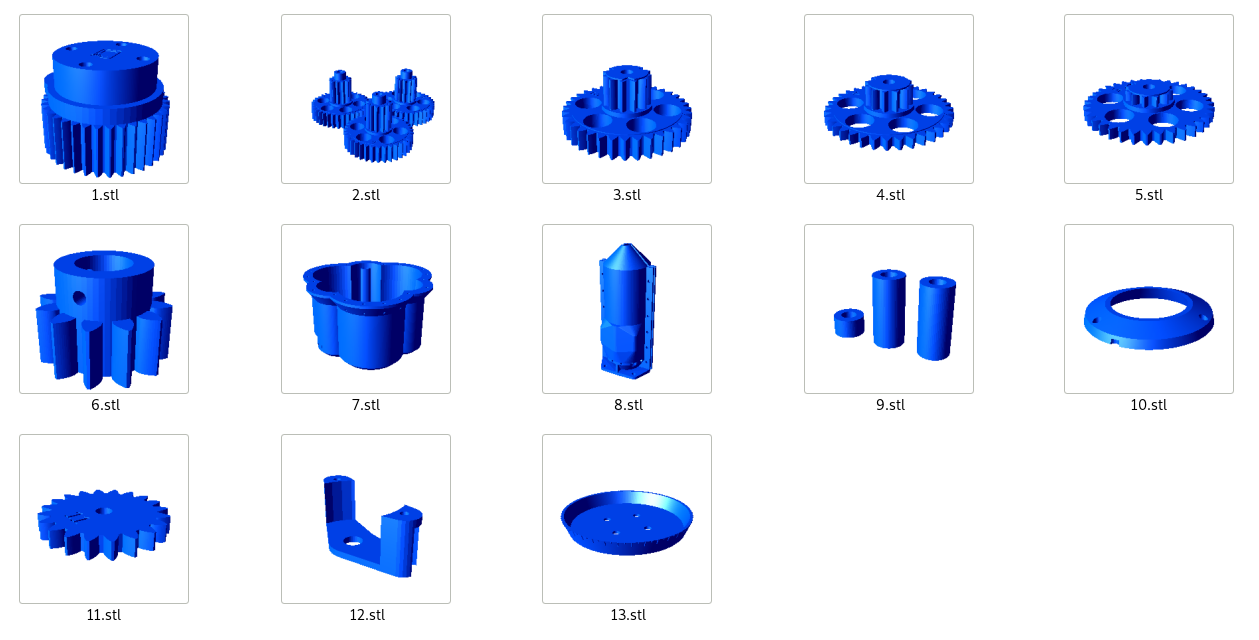

• .STL files
• .3mf preset

It can be controlled via a web interface, using electronics Simple rotator interface V.

Max torque 2200 kg/cm (215 N/m) without destroy

You can use 3D printing to order, for example at mirex3d.cz.

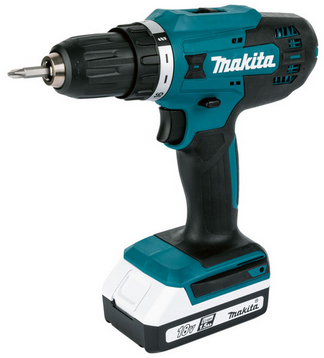

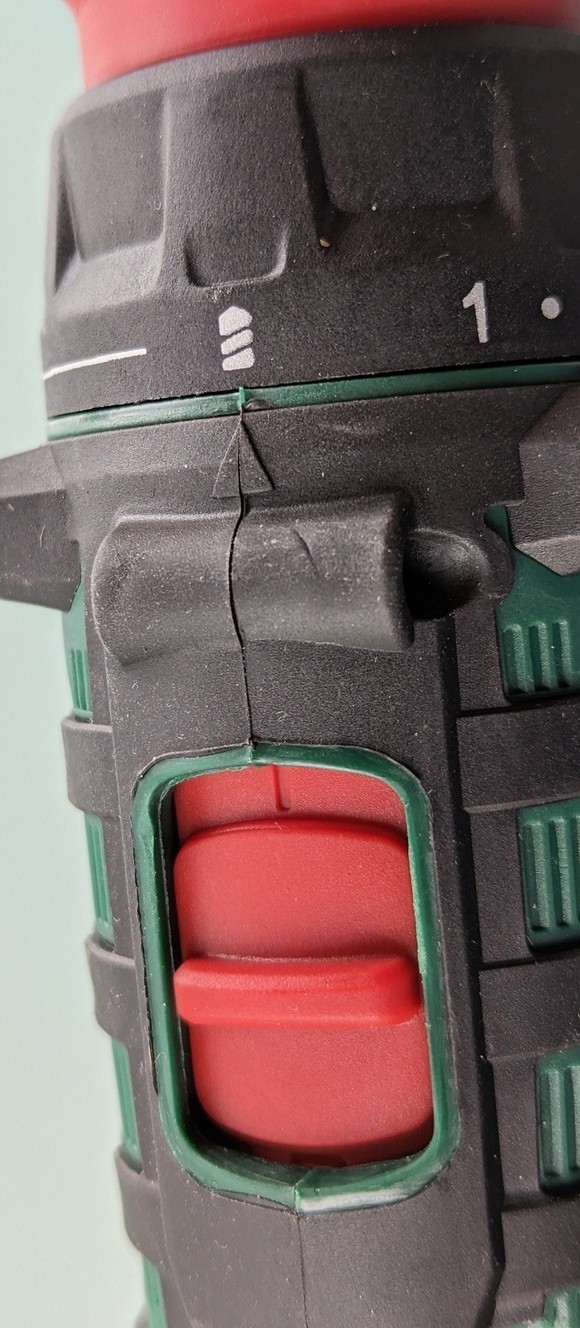

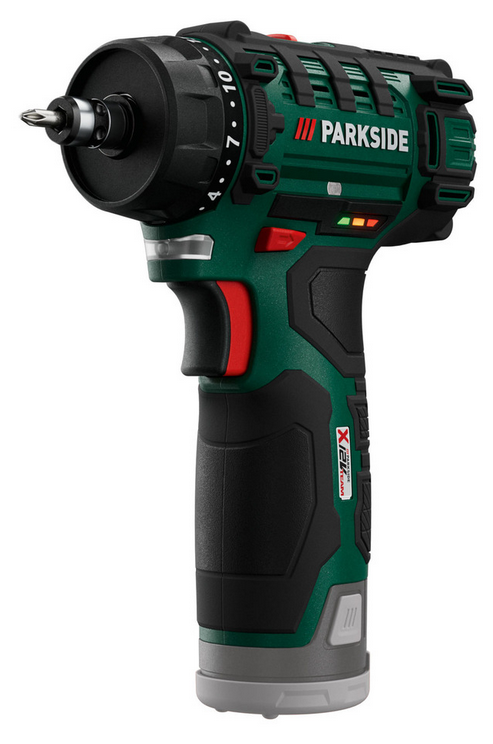

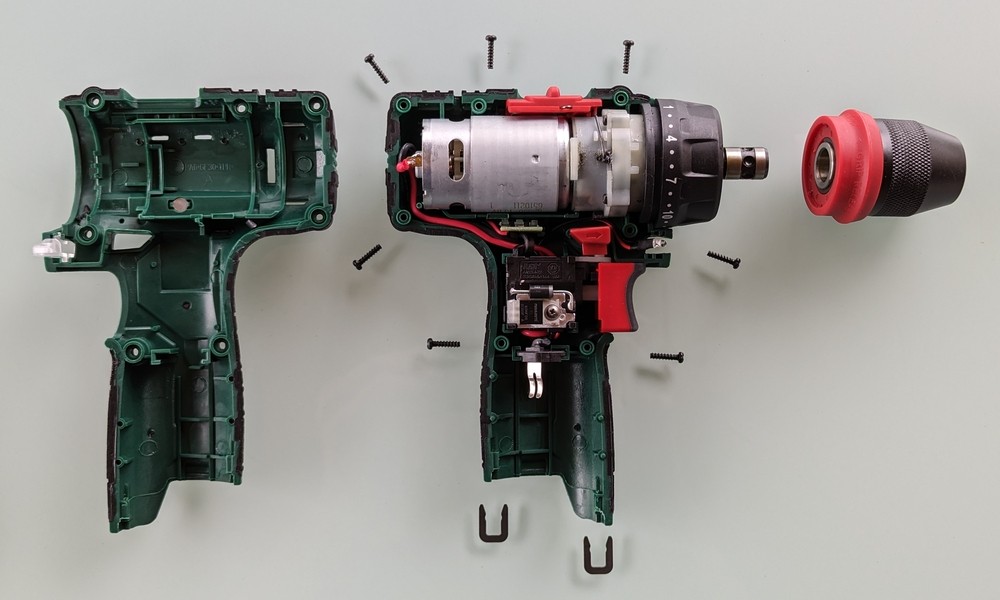

1. Before disassembly drill tool for extract motor, set the gear ratio to 1 (slow), and the torque to maximum (drill)

2. Remove the two U-shaped springs from the battery space

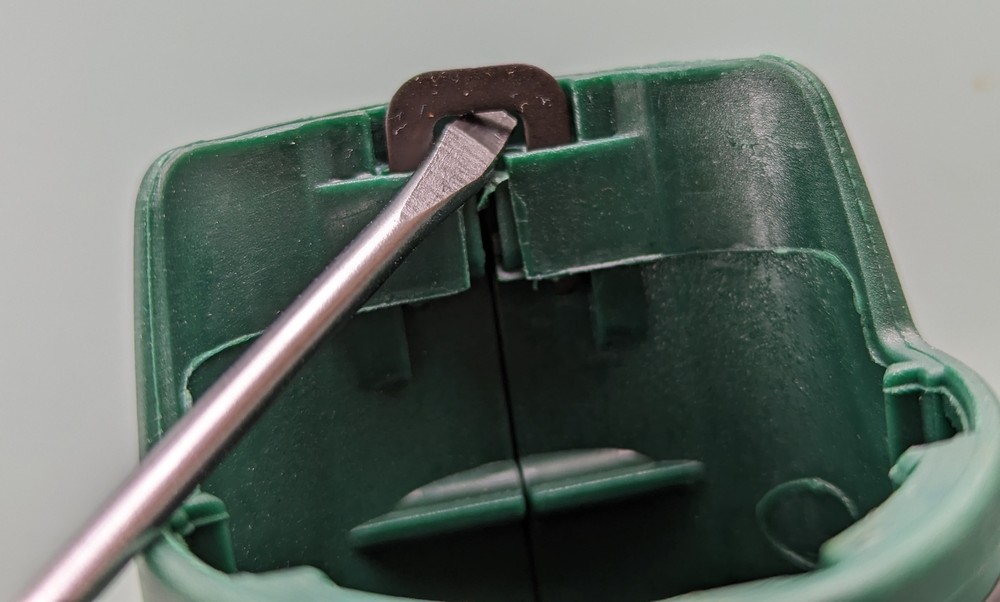

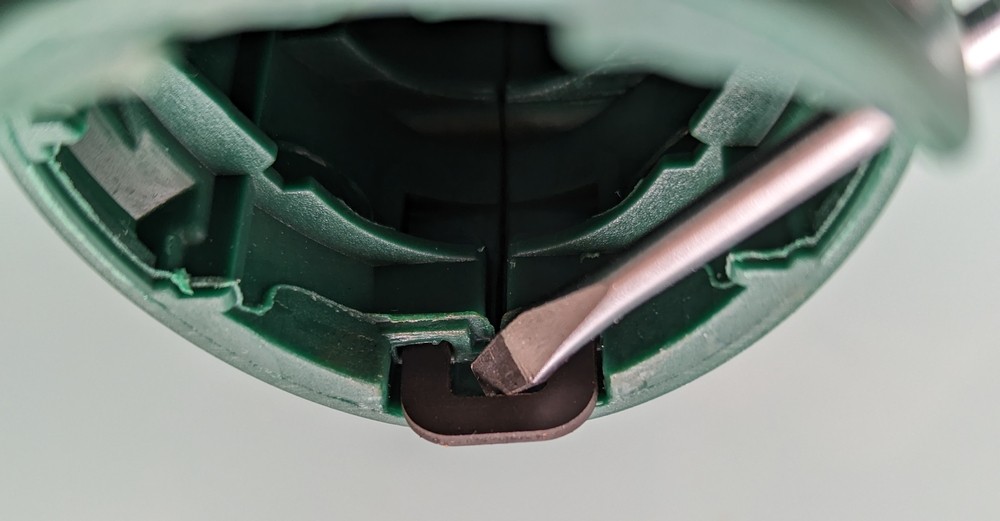

3. Unscrew the seven screws, remove the chuck and open cover

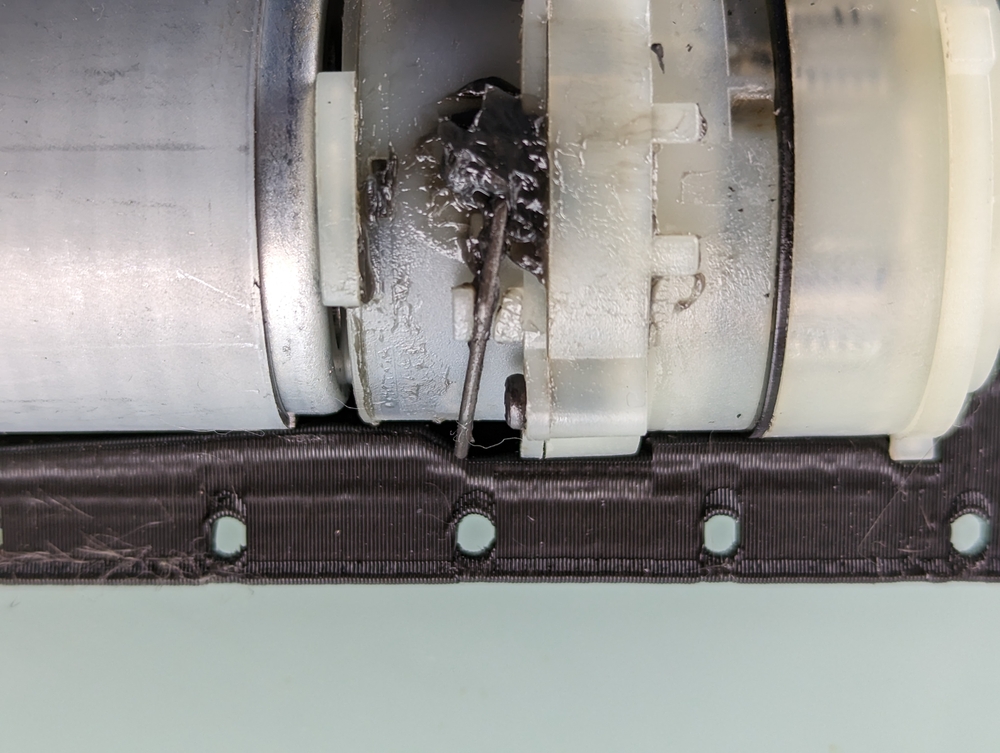

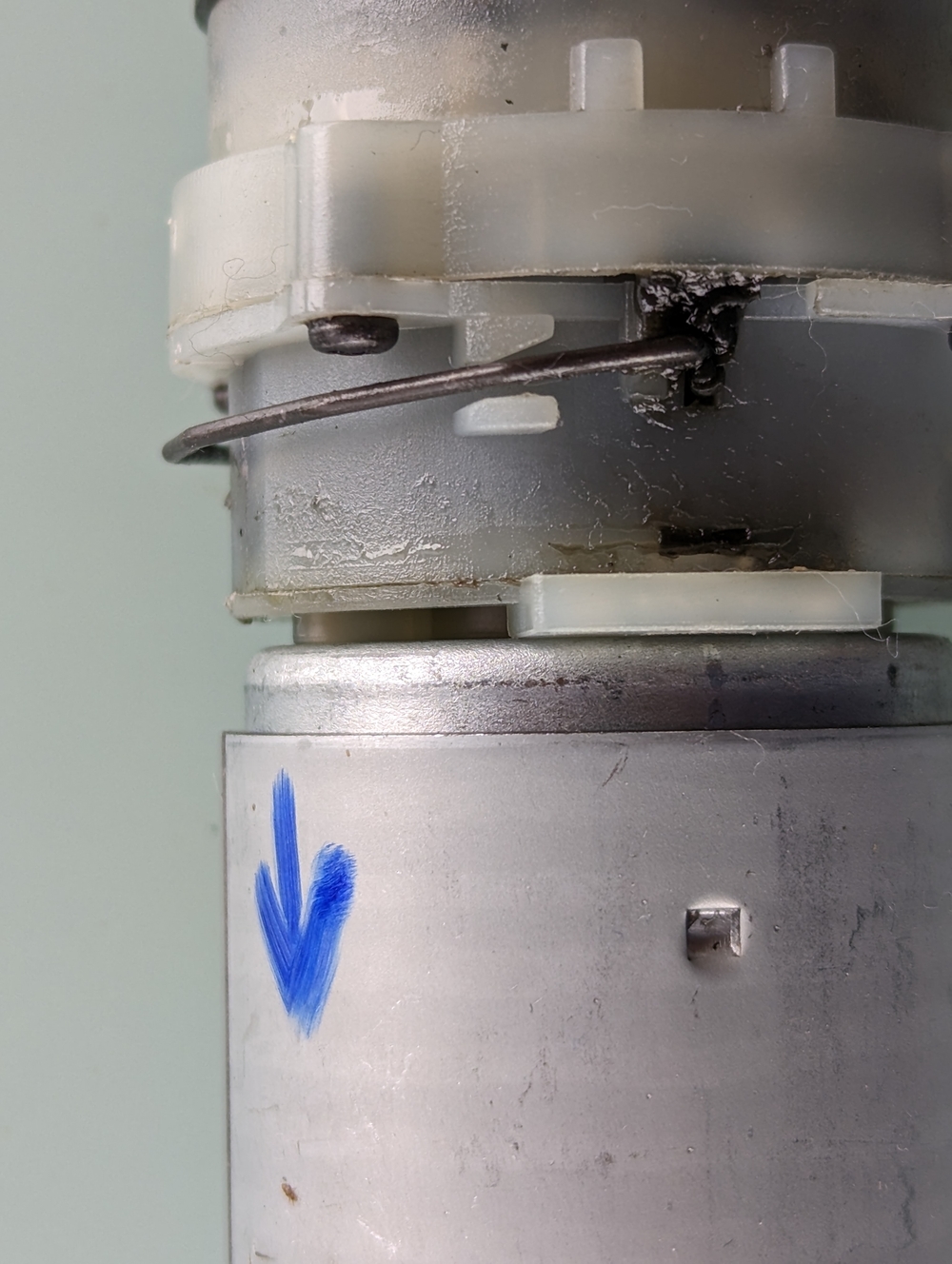

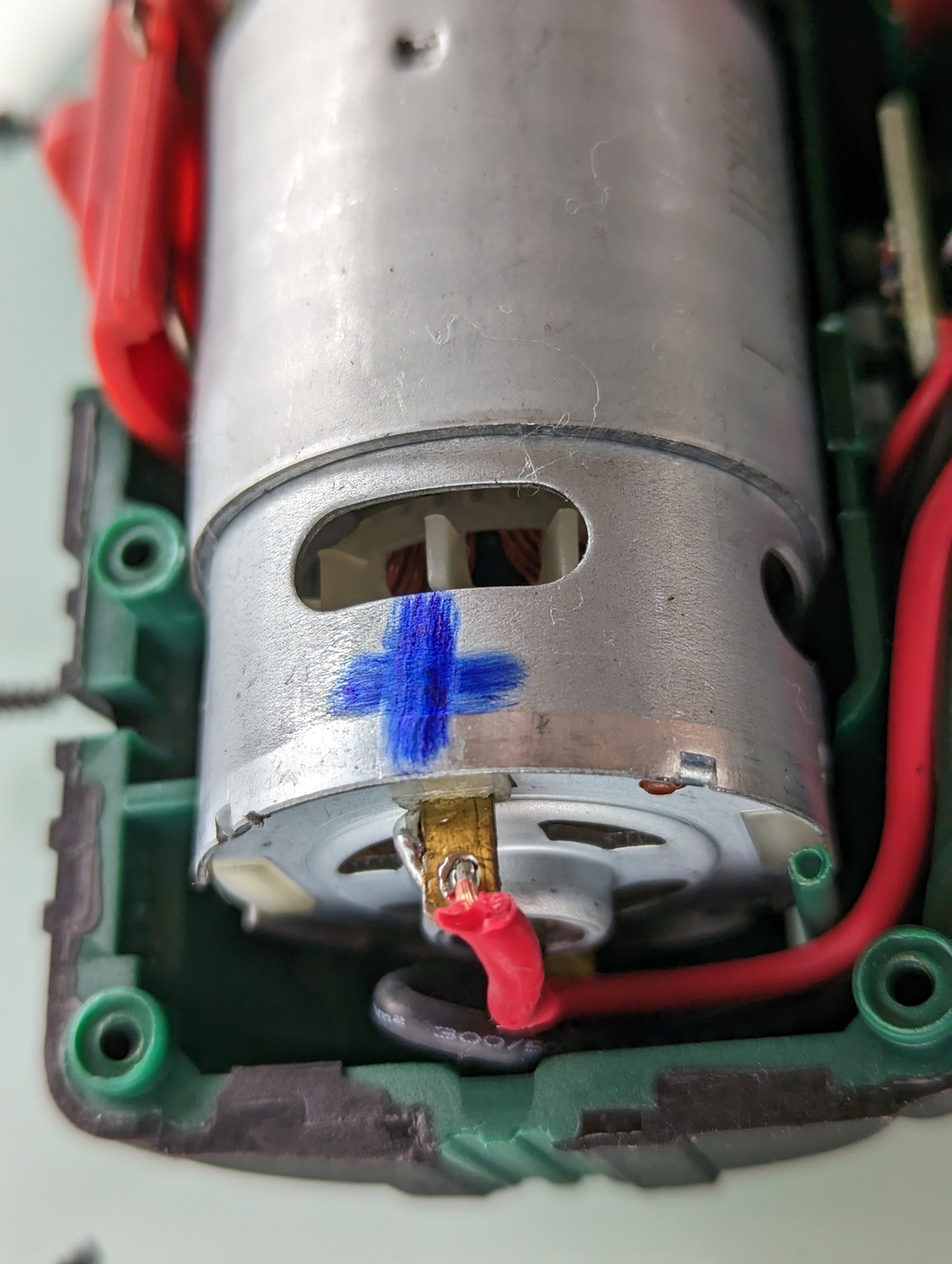

4. Sign polarity on the motor (+ on red wire)

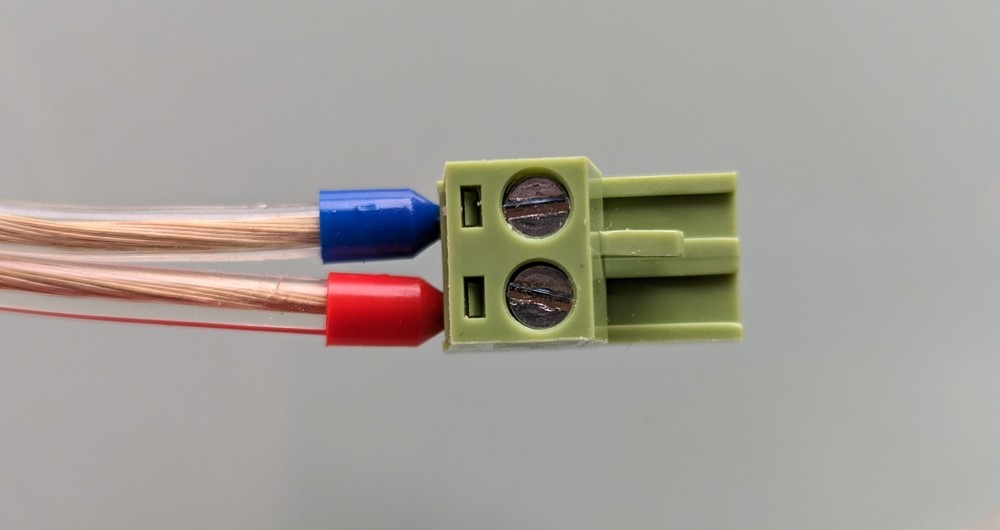

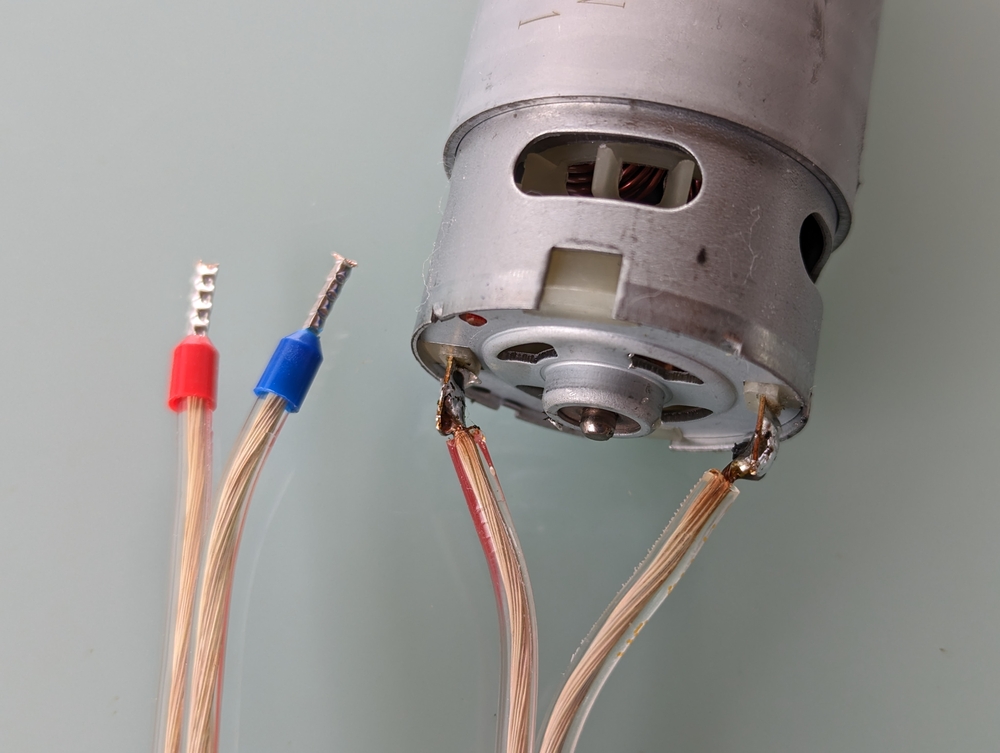

5. Solder 20 cm of power cable with crimped ends

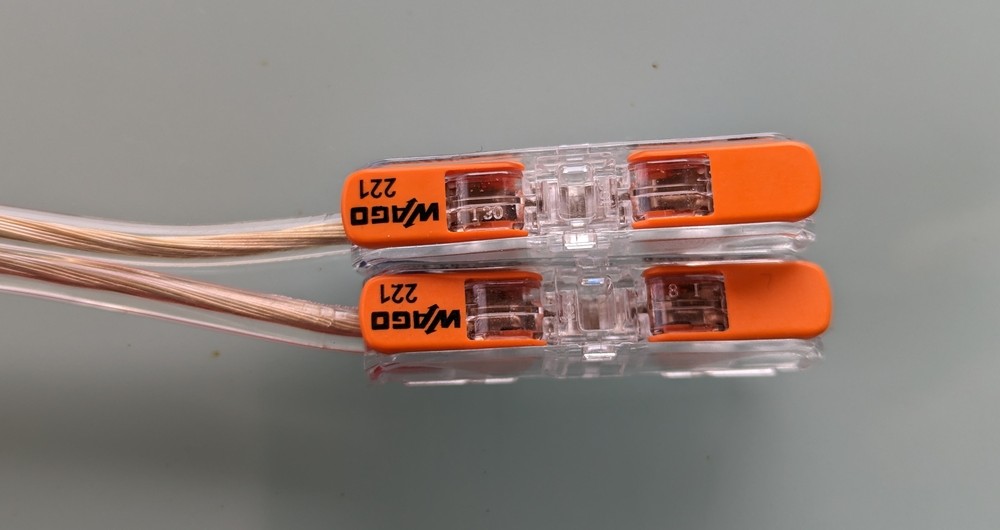

6. The wago terminal block is suitable for general use, for the connection of the Simple Rotator Interface V. use the prescribed connector


7. Make sure the gear ratio stick is set to the slow position


8. Insert the motor into the half of the printed plastic housing 8.stl

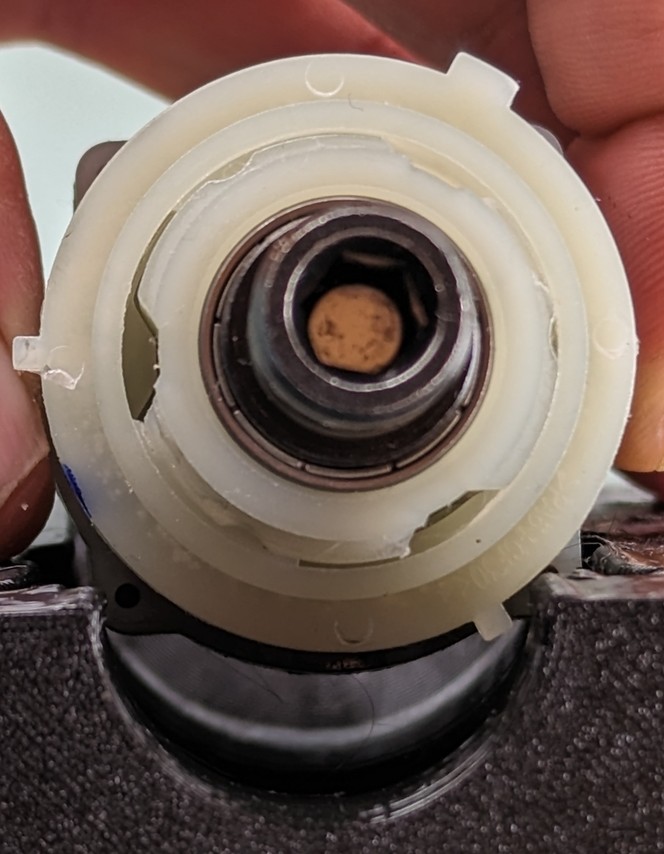

9. The orientation of the motor can be seen in the photo. The plastic wheel in the middle is facing up.

10. Again make sure the gear ratio stick is set to the slow position

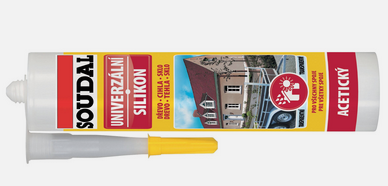

11. Apply silicone sealant around the entire perimeter of the plastic holder
    Fix the gearbox spring in the slow position with silicone

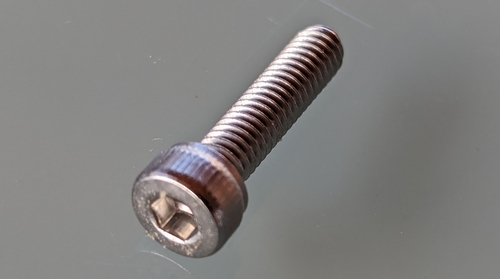

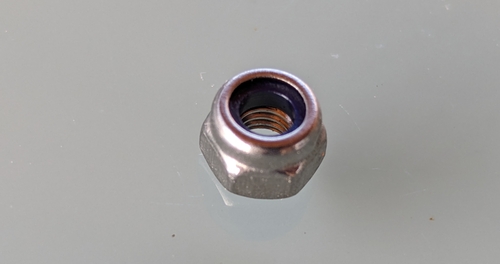

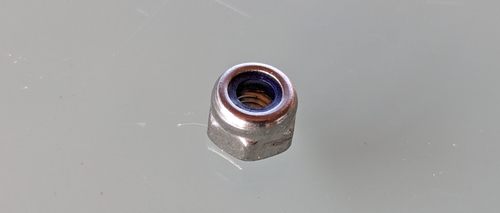

12. Close the motor using the second pulley of the plastic motor holder, and secure with a minimum of four M3x10 screws with a lock nut on each side

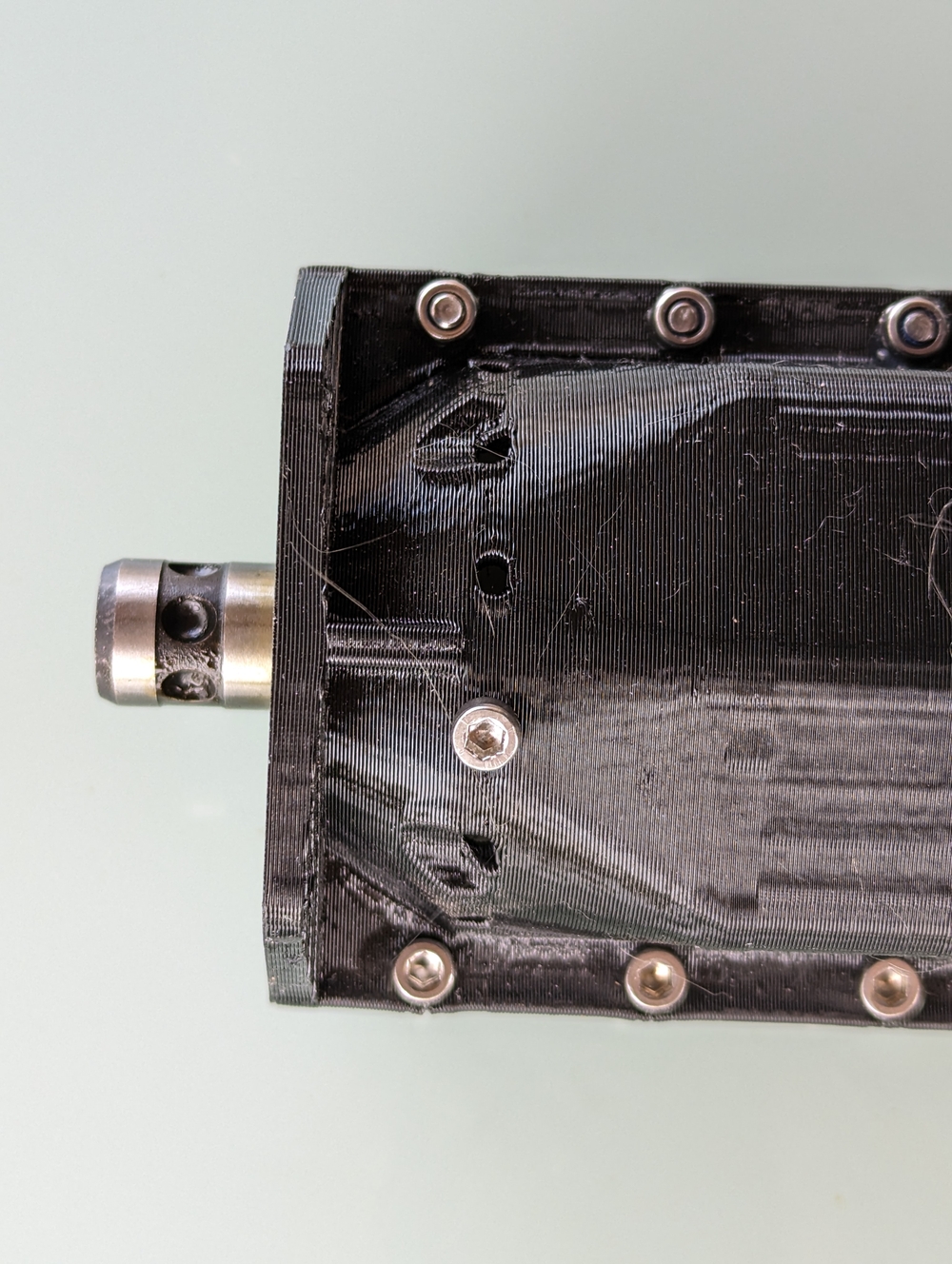

13. Install three M3x6 screws around the perimeter so that they do not collide with the three protrusions from step 8. Tighten very sensitively, the screws do not have metal nuts, but screw directly into the plastic.

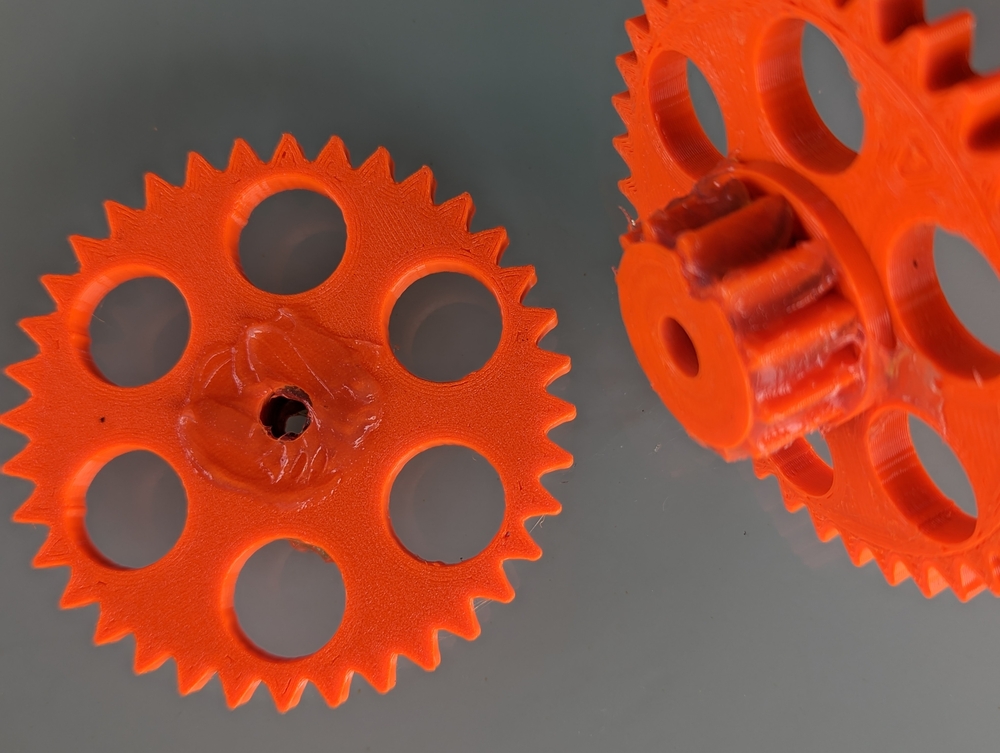

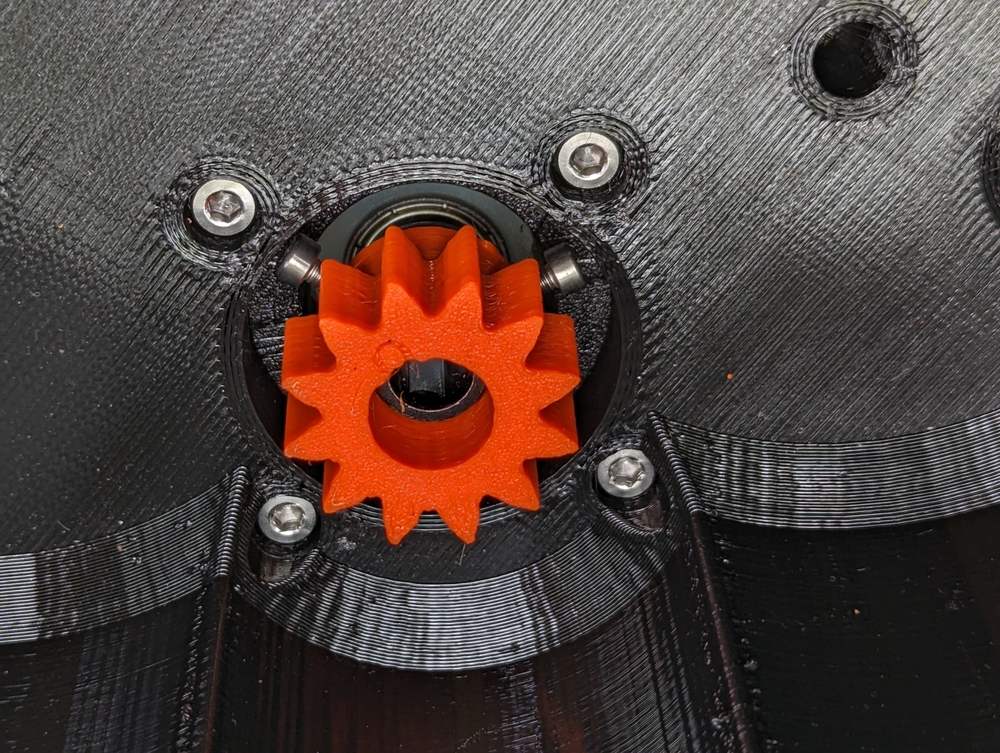

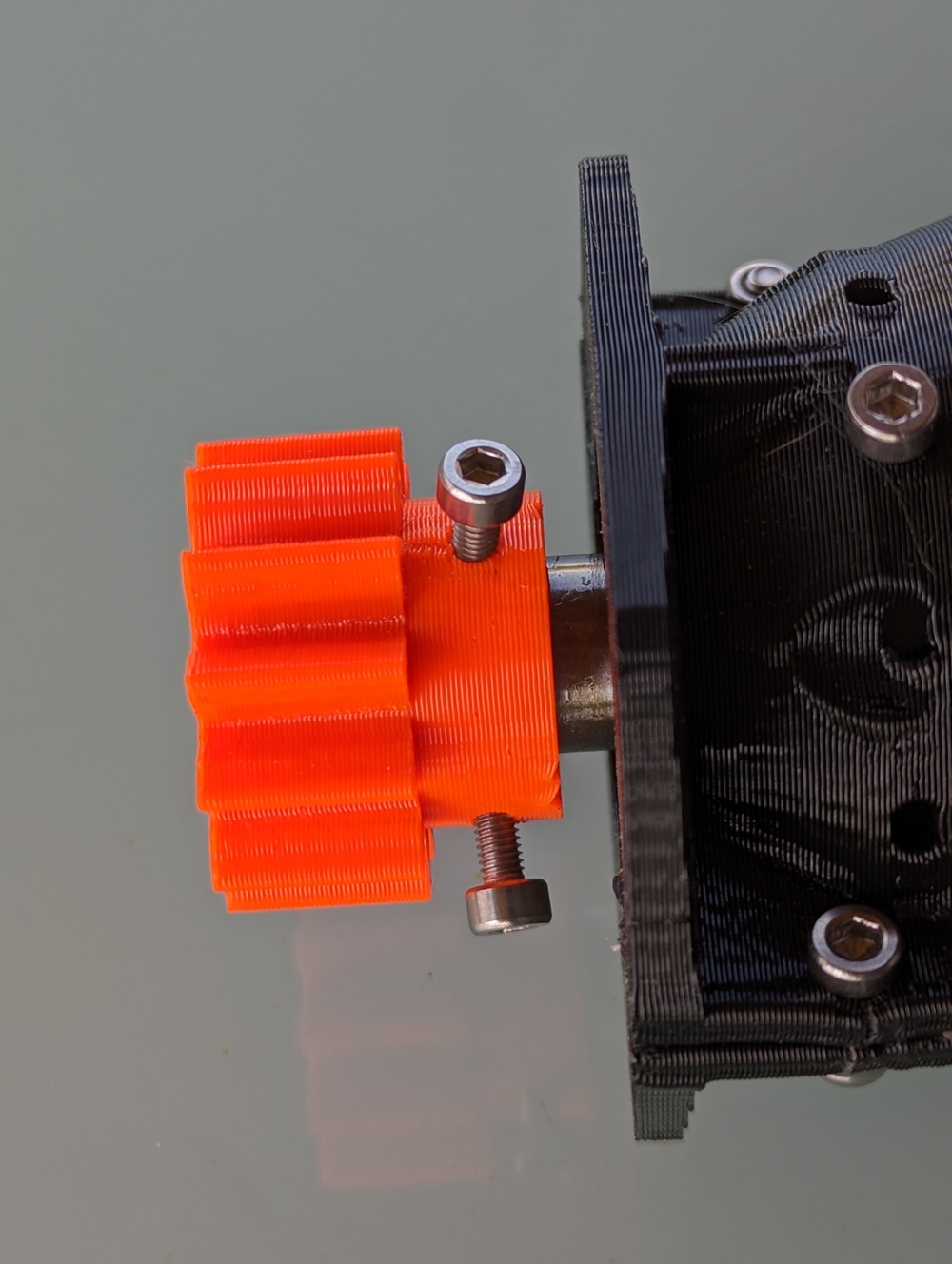

14. Press the 6.stl gear onto the motor shaft so that the side holes are directly against the depressions in the motor shaft. Then screw three M3x10 screws into the hole - screw in sensitively and stop as soon as the resistance increases - it is screwed directly into the plastic. We recommend applying secondary glue to the plastic hole before inserting the screw.

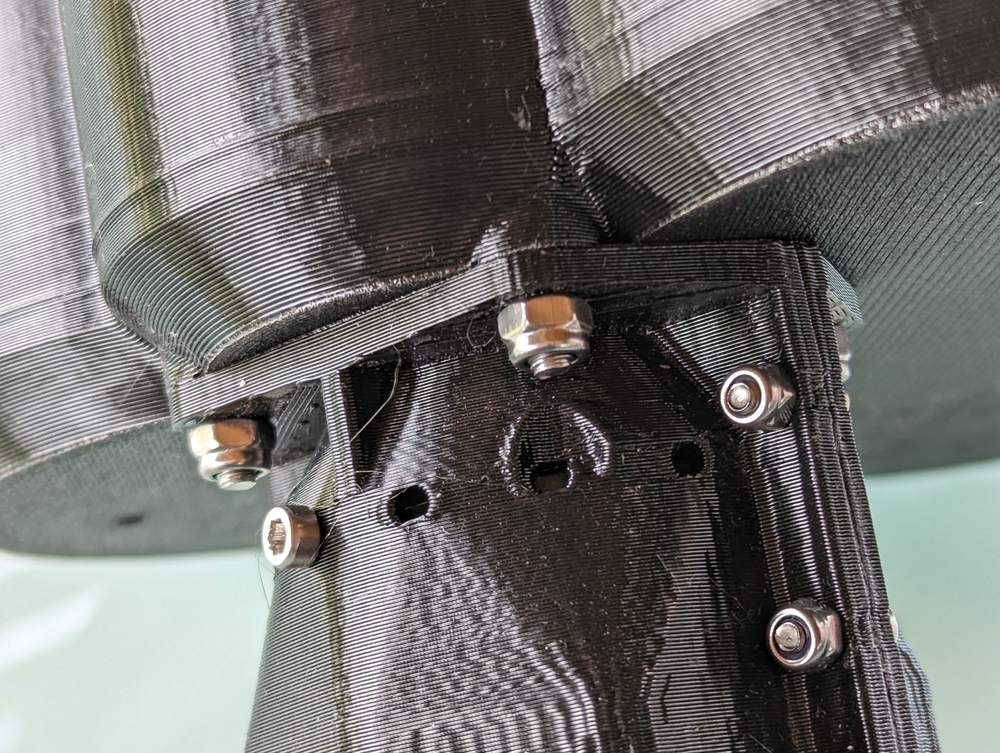

15. Attach the entire motor body to the rotator 7.stl main tank using four M4x16 screws with lock nuts

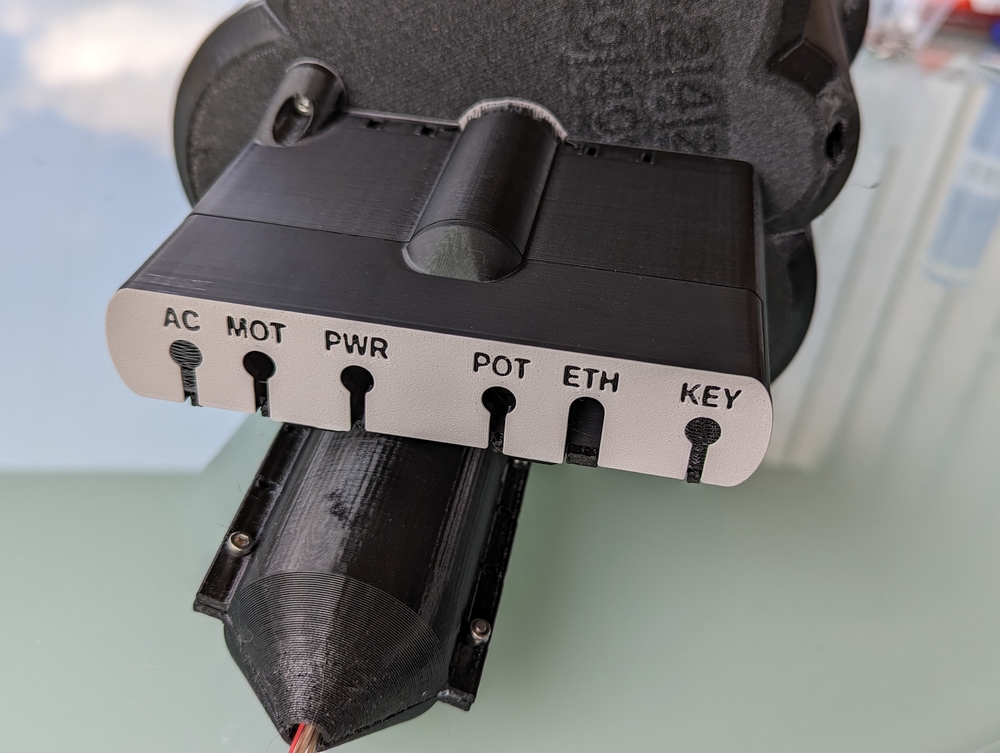

16. If you will use the Simple Rotator Interface V. to control the rotator, screw its printed box with two M4x16 screws directly to the plastic body of the rotator

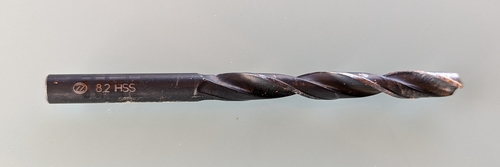

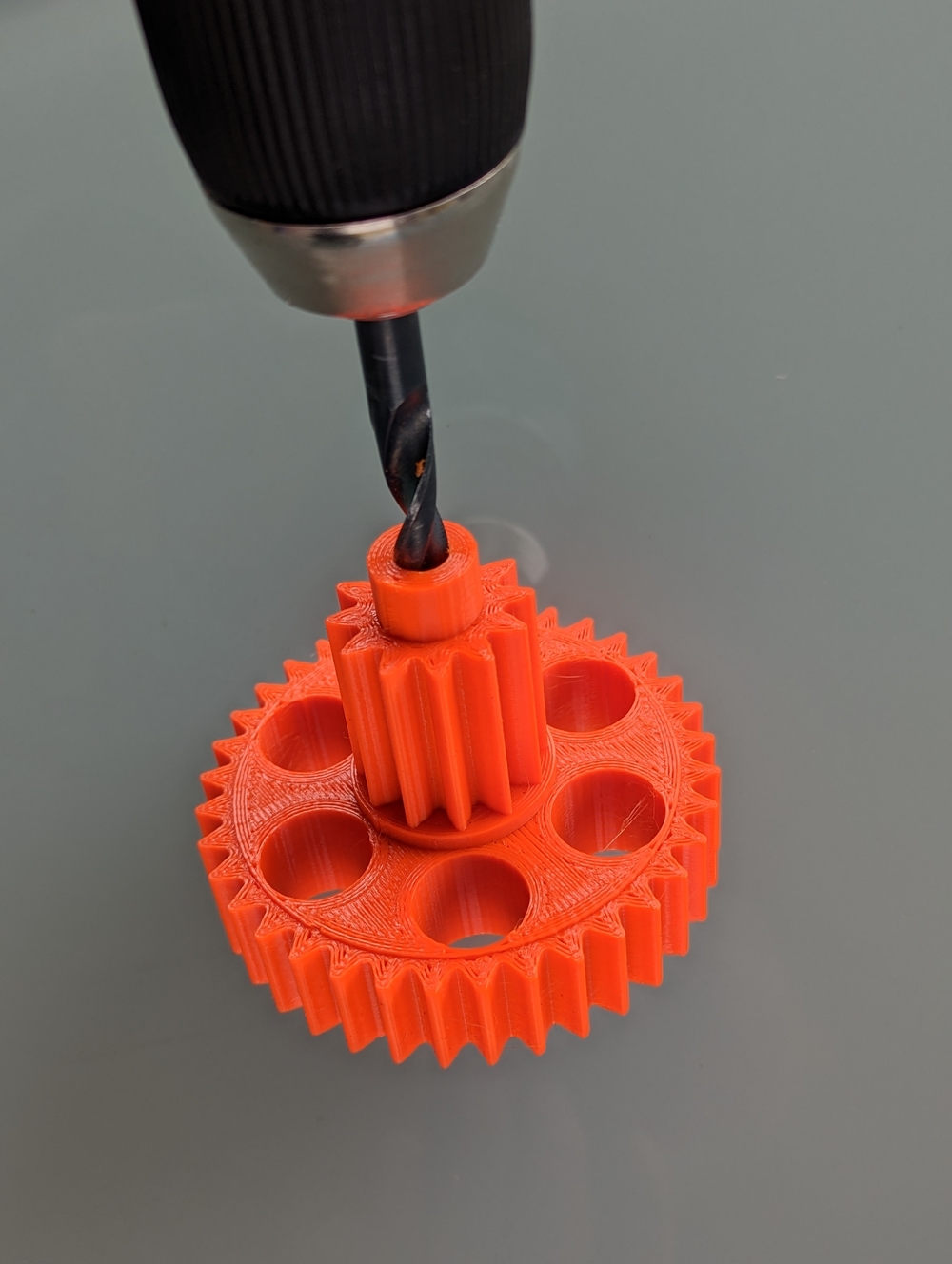

17. In the next step, drill out the axes of the plastic parts number 1, 2, 3, 4, 5 and 9, with a drill with a diameter of 8.2 mm, so that they rotate freely on a smooth axis with a diameter of 8 mm.

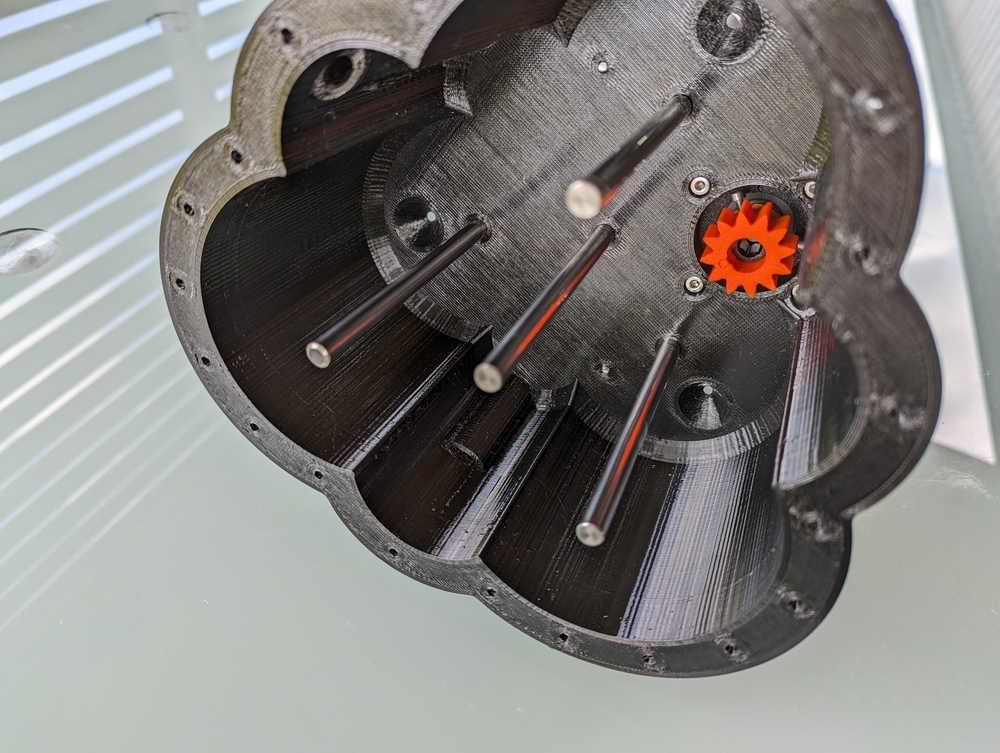

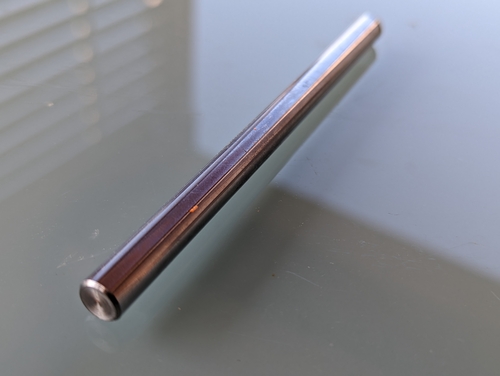

18. Fit the four smoothed axes into the rotator body

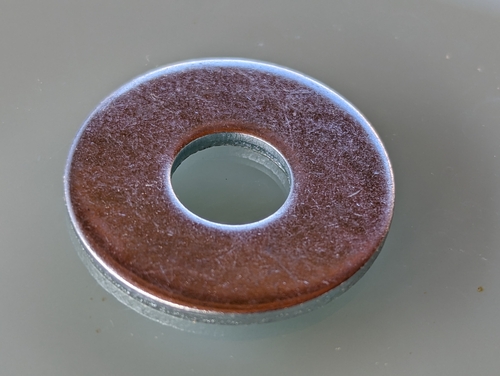

19. You put the metal washer on the central axis, and the low ring from the 9.stl on the opposite axis of the motor

20. Now you will fit the gears. Apply universal lubricant to them before putting them on

21. Place gear number five on the central axis, and the metal washer on the opposite axis of the motor

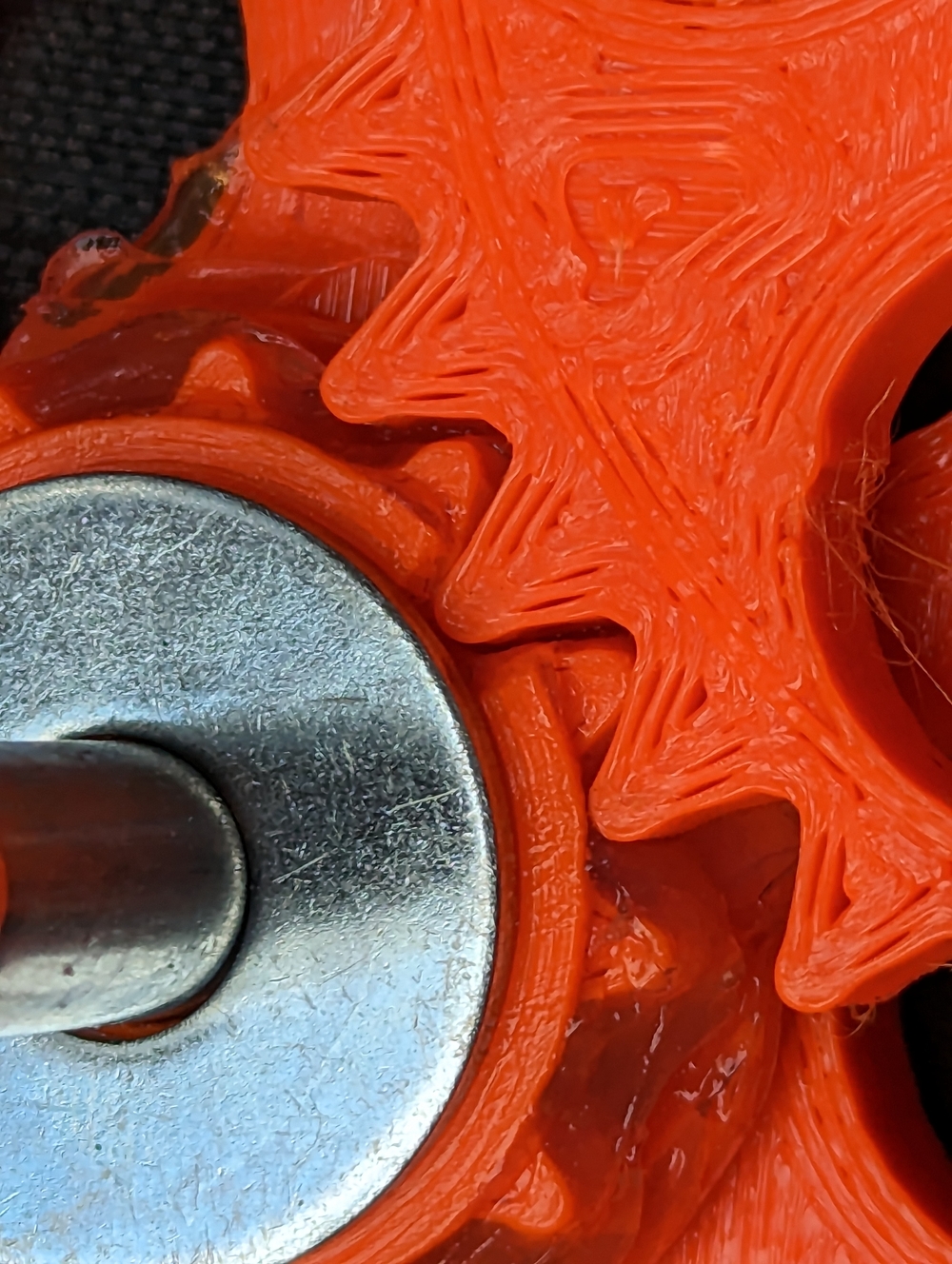

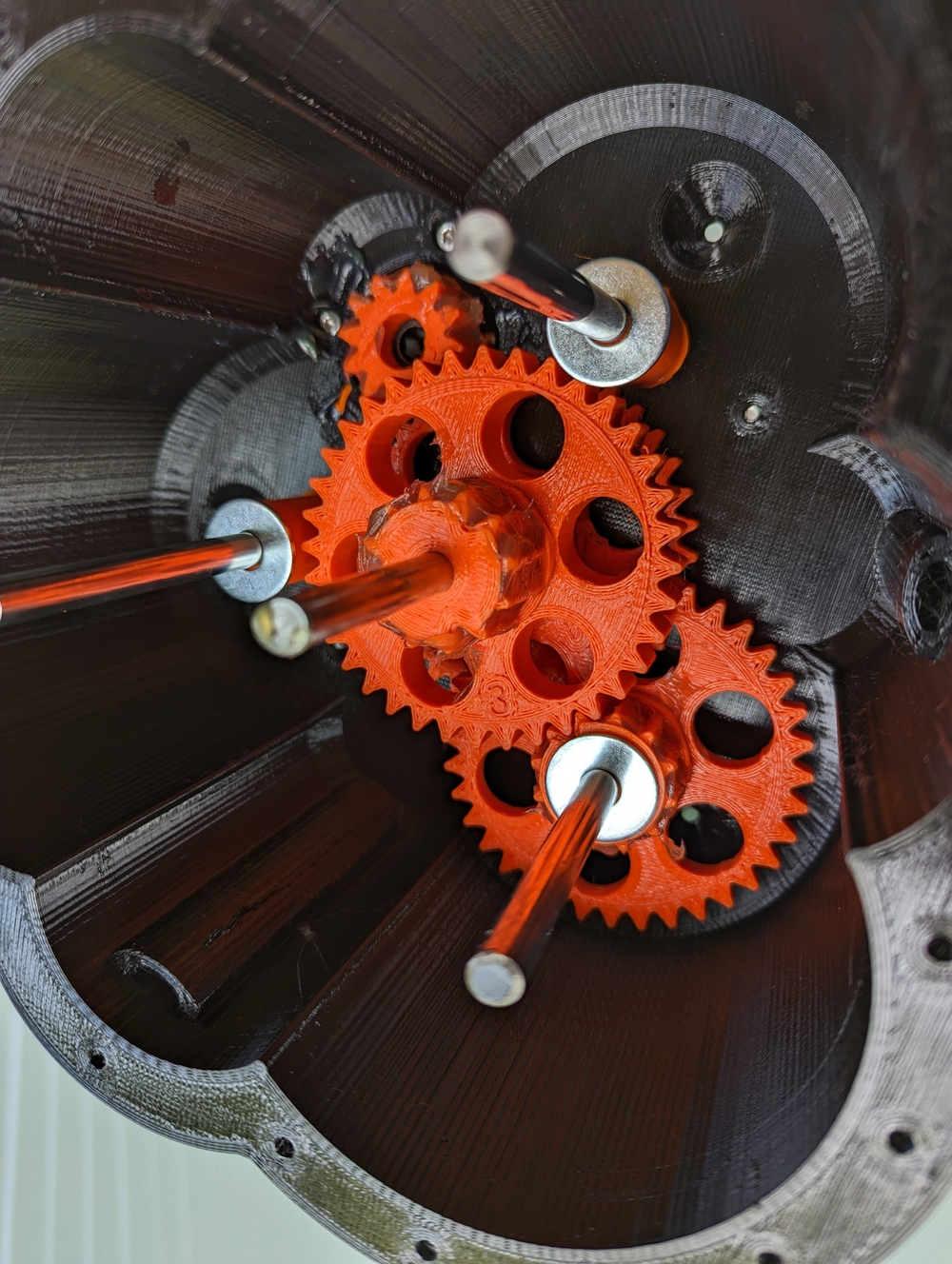

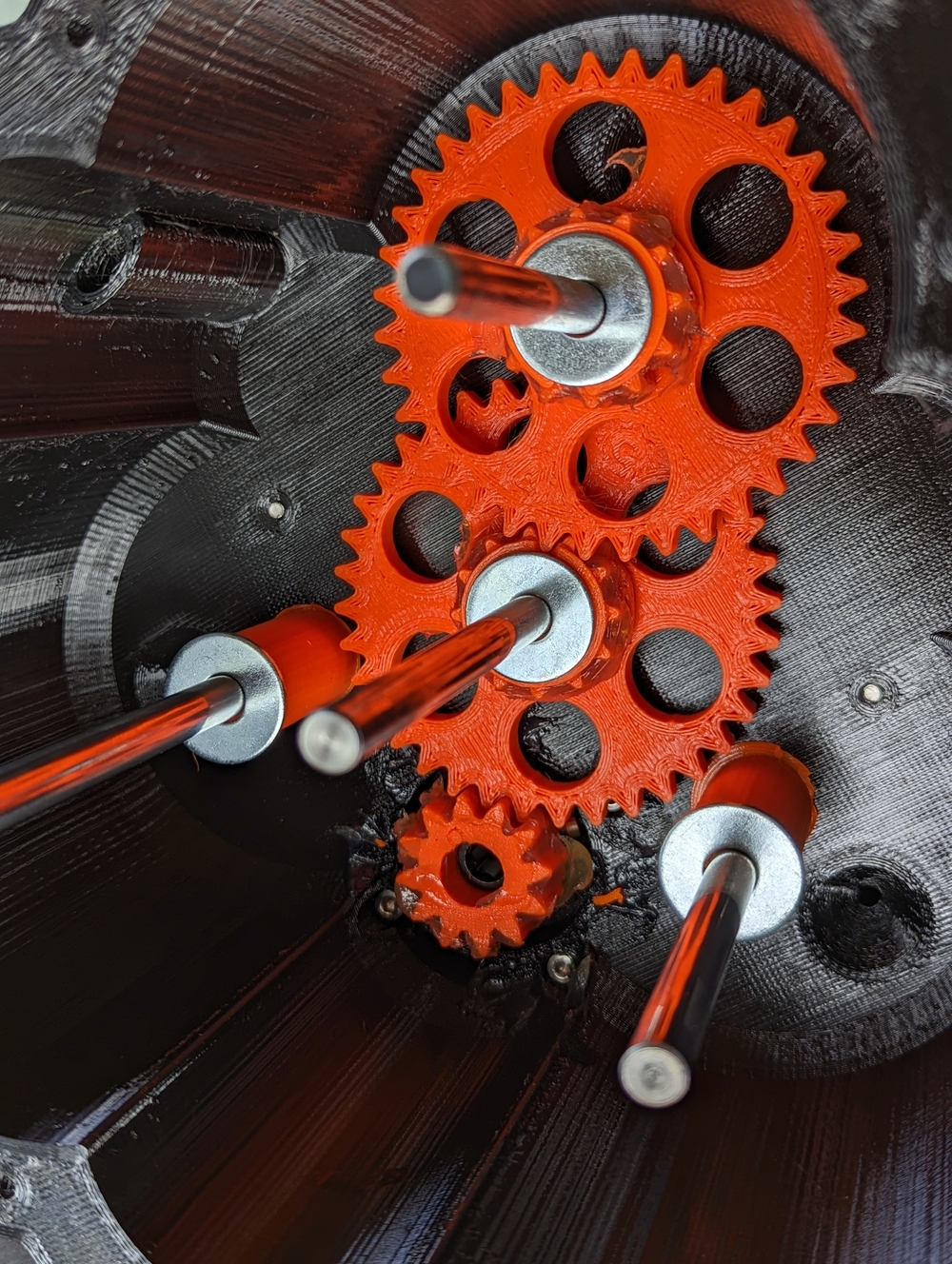

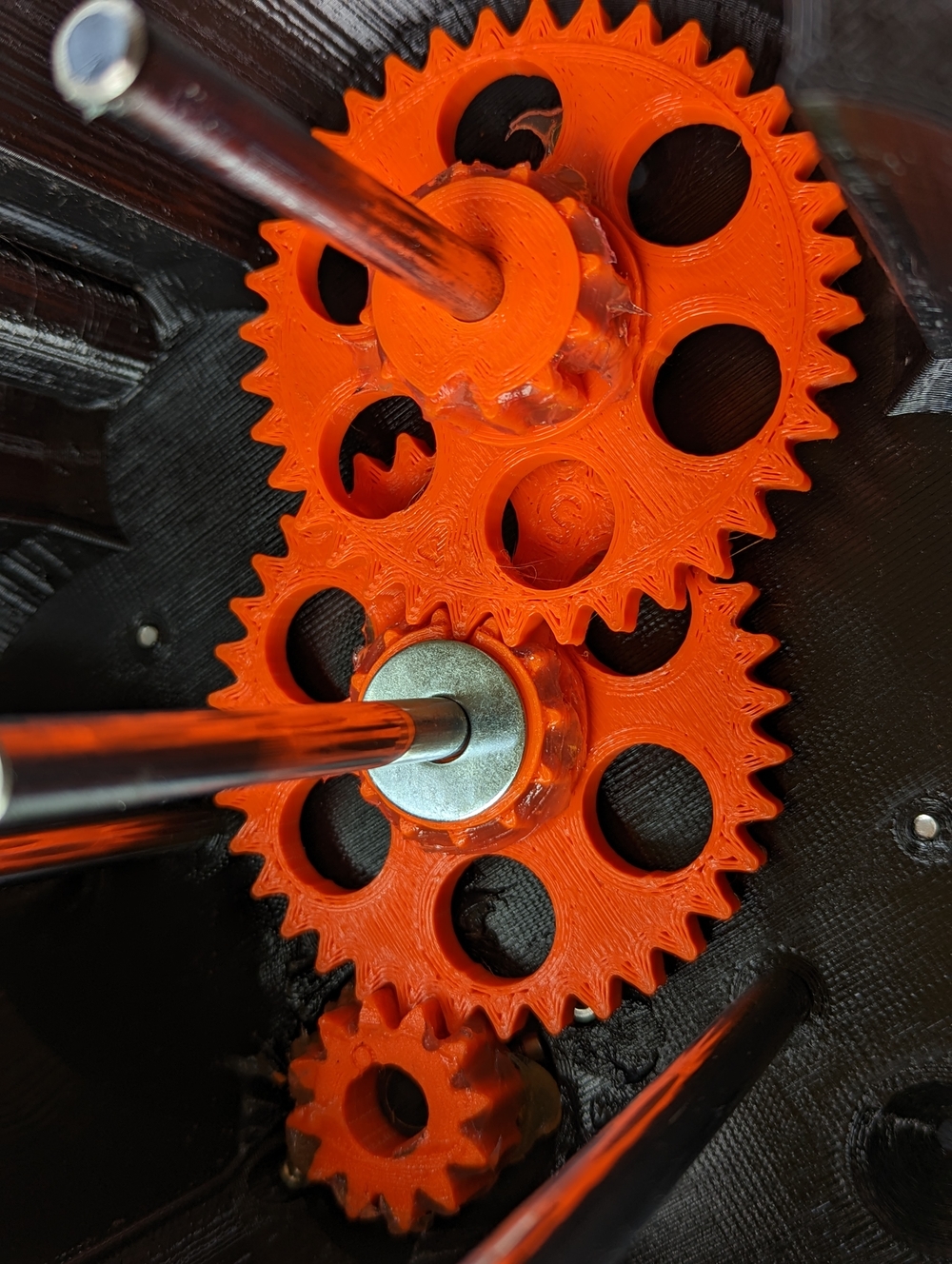

22. The previous picture has the center gear turned backwards. Turn the bottom gear so that the V slot on the top faces the next gear above it. Then put gear number 4 on the axis opposite to the motor so that its V slot is facing the center axis, and slide the metal washer onto the center axis.

23. On the two free axes, you put on the higher printed washers of the 9th stl and on all the outer axes, you put on three metal washers.

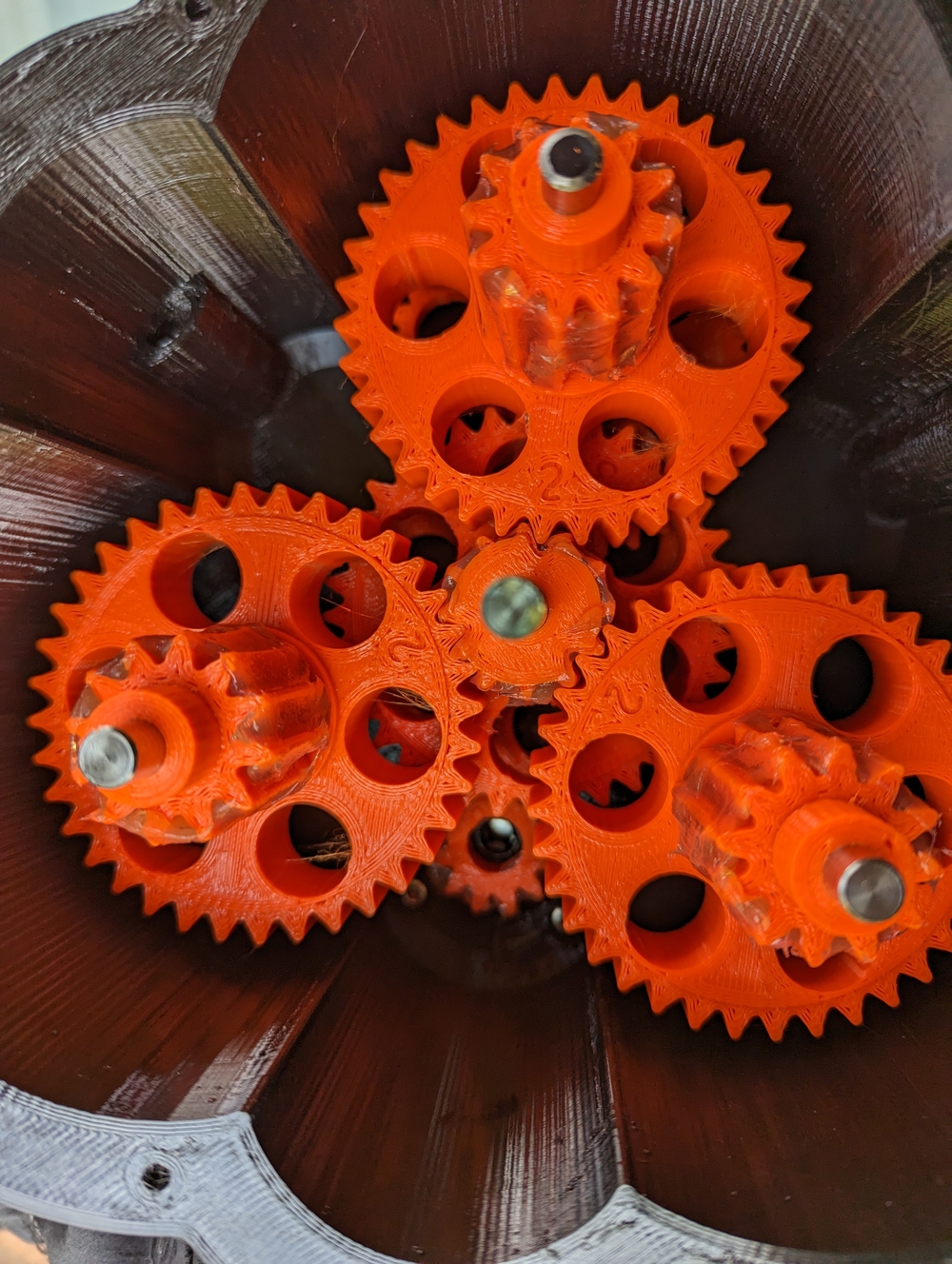

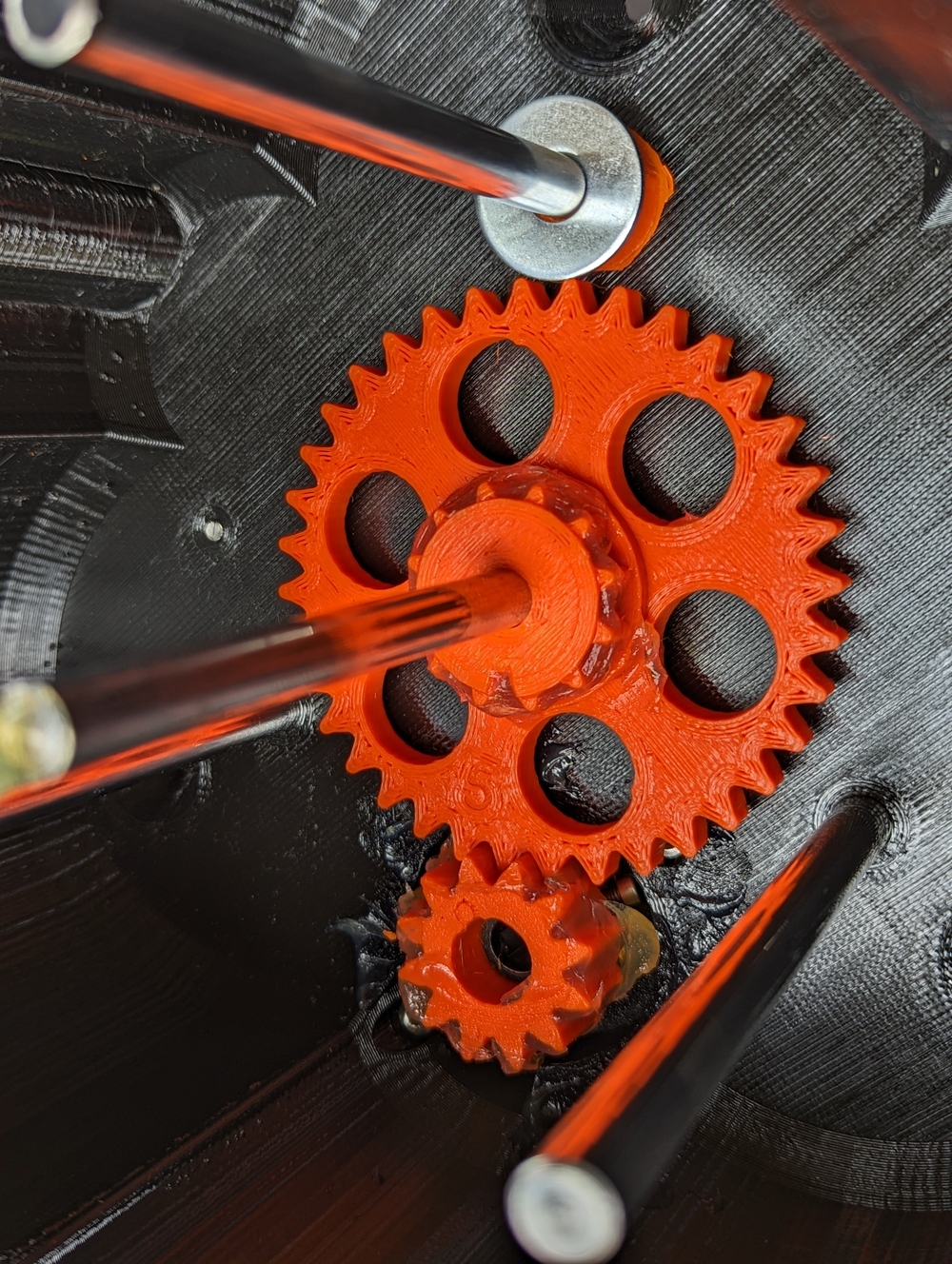

24. Detail of the orientation of the cogwheels, including the V-groove


25. Before fitting other gears, don't forget to lubricate them with universal grease


26. Place the 3.stl gear on the center axis so that the V splines point to the surrounding axes


27. Place the three 2.stl gears on the edge of the axle so that the number marking points to the center axle

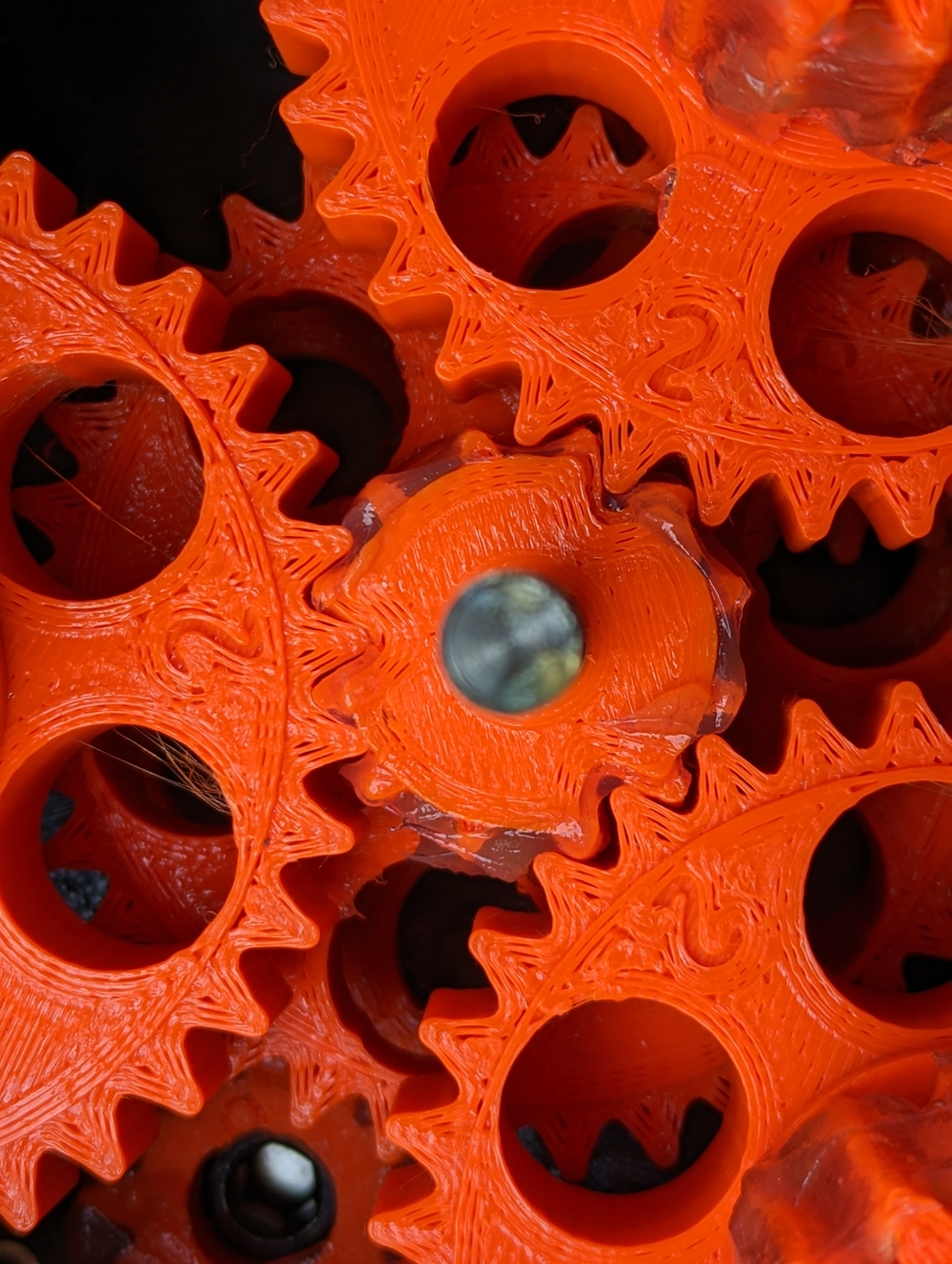

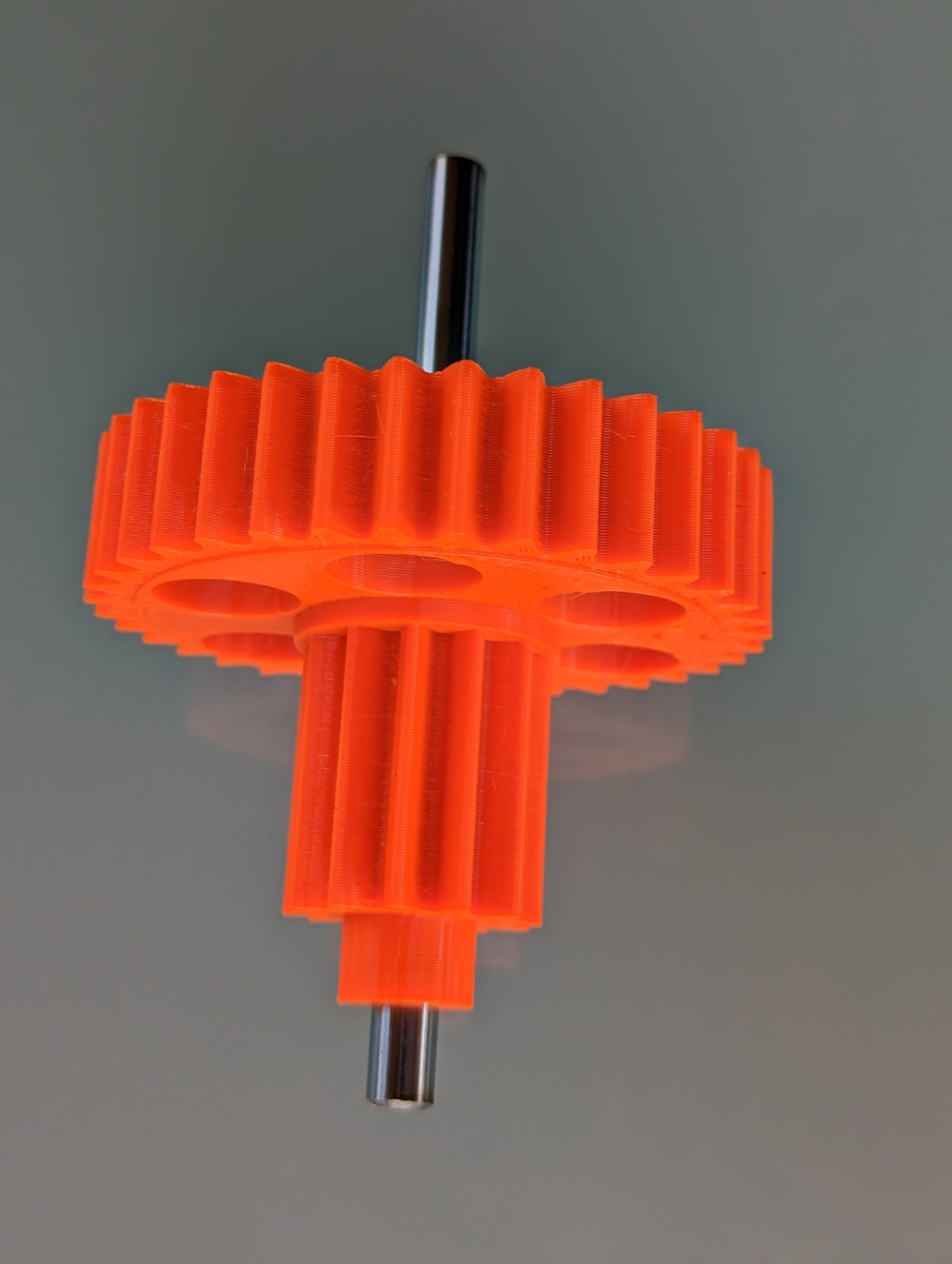

28. Detail of mutual position


29. Place the metal washer on the center axis

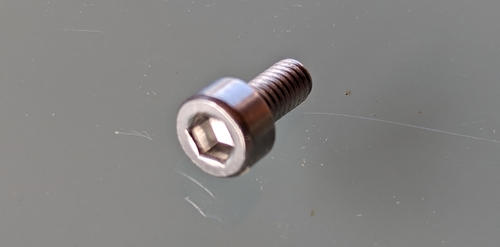

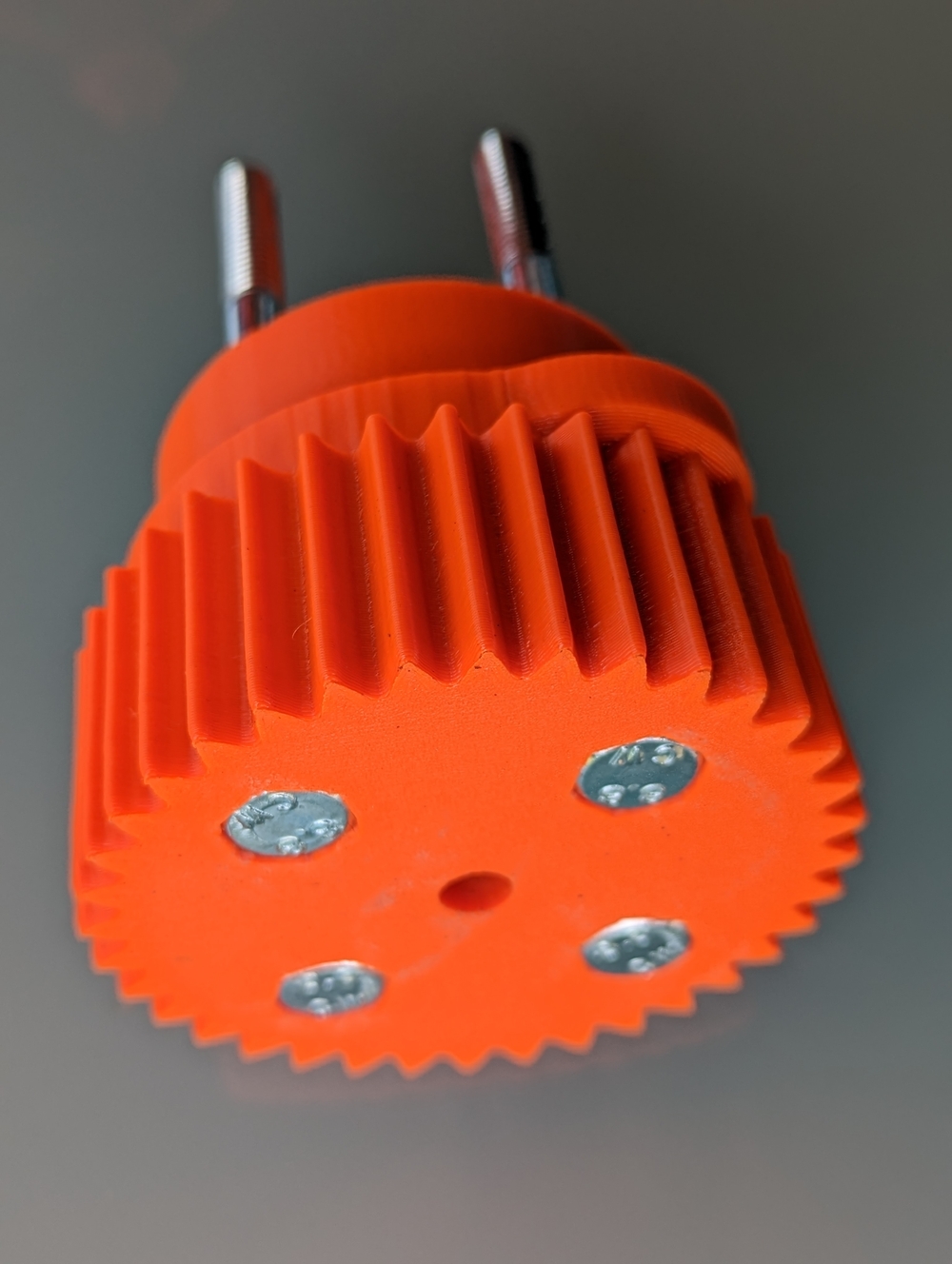

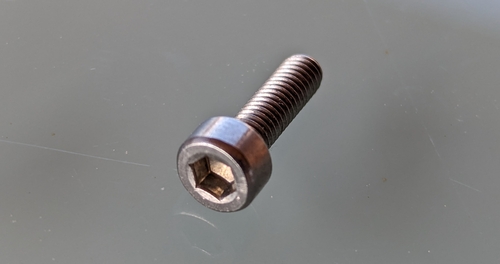

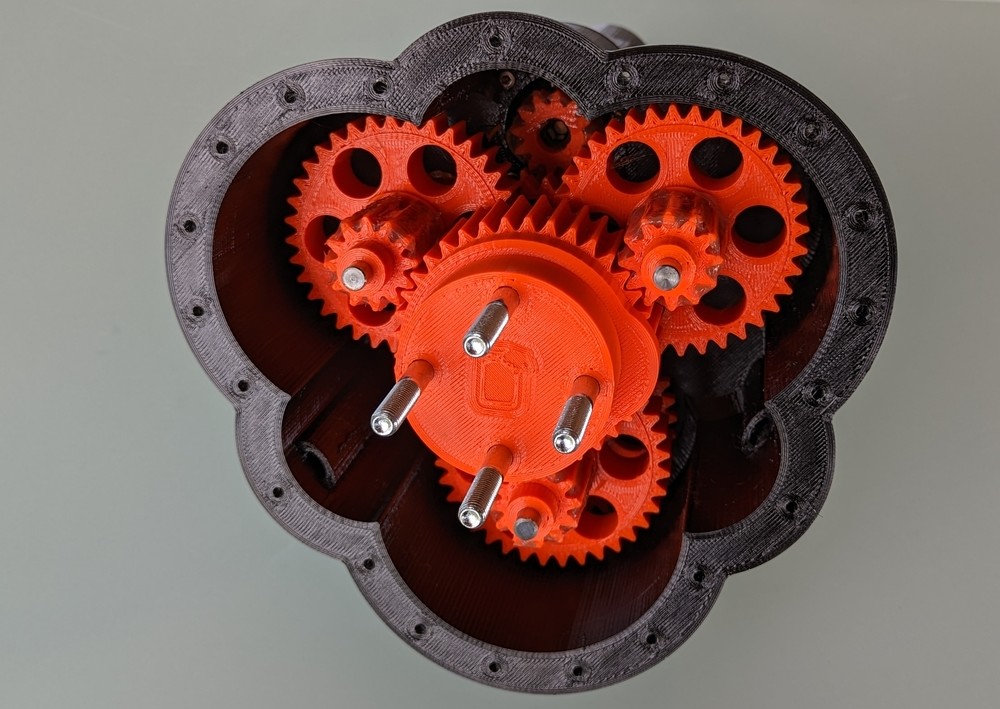

30. Insert four M8 screws into gear 1.stl


31. Place the 1.stl gear on the center axis

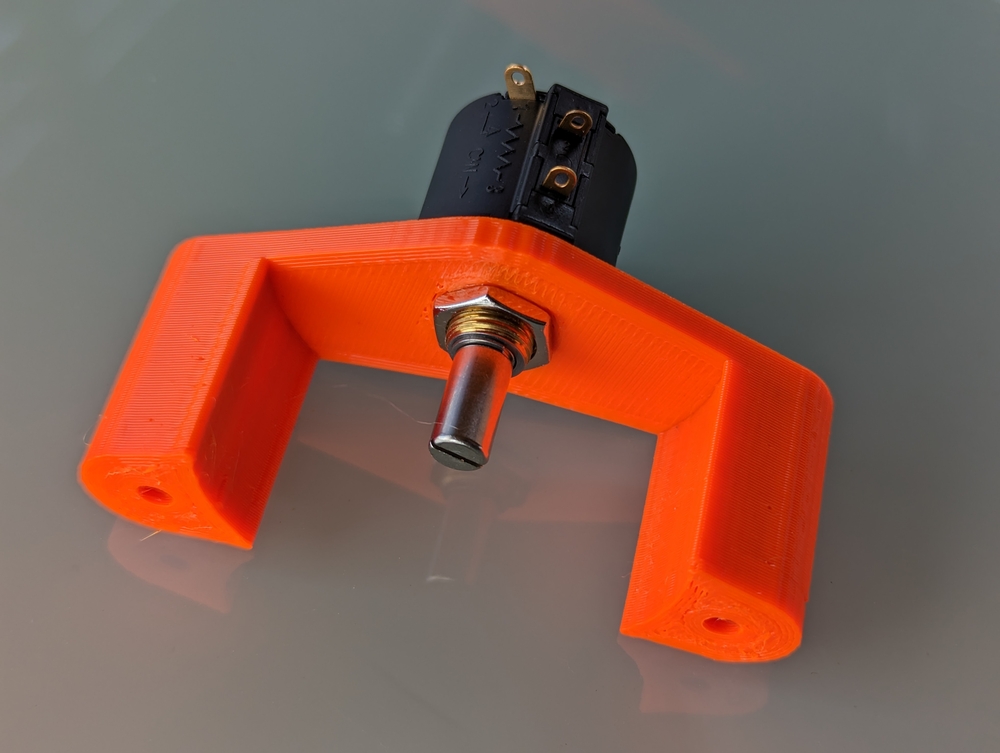

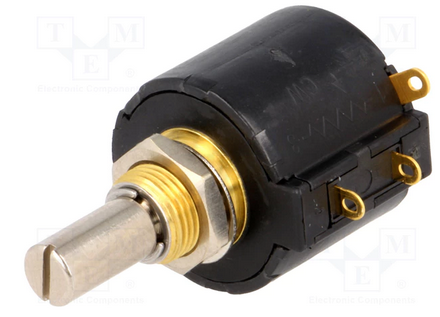

32. Now screw the three-step potentiometer to part 12.stl, with orientation according to the picture.


33. Using a vice, very carefully press the 11.STL gear onto the potentiometer shaft as shown in the picture

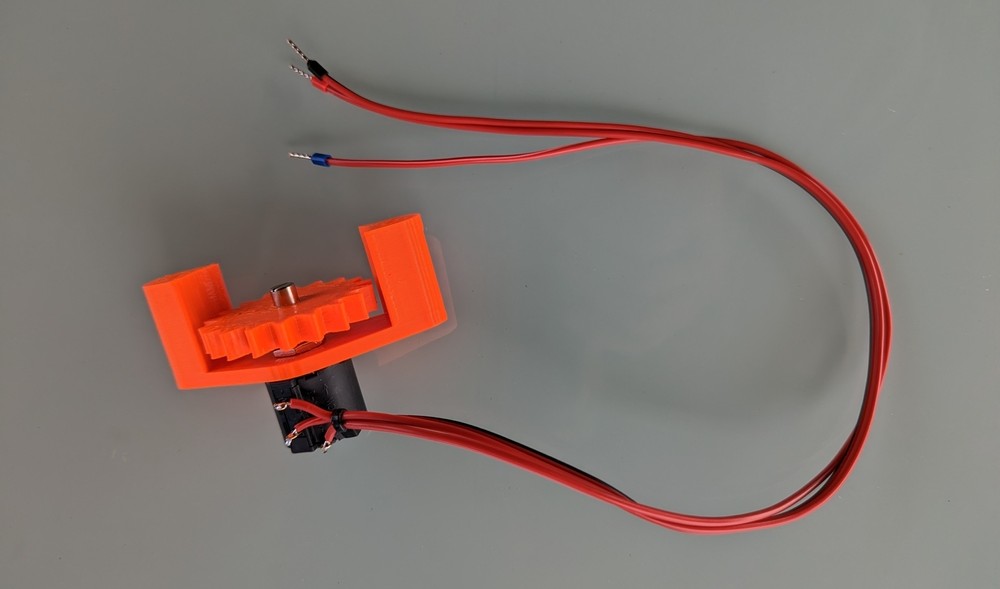

34. Solder three 0.5mm^2 wires, 20cm long, to the potentiometer. Crimp the ends with end caps

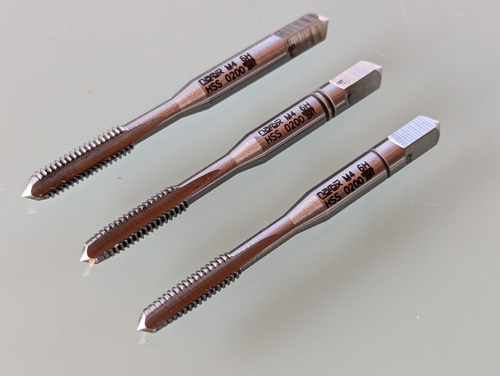

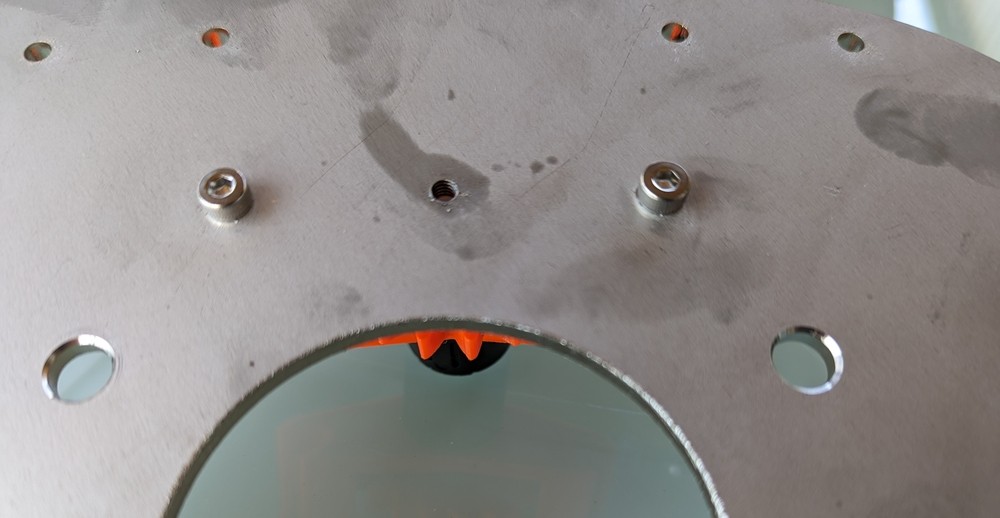

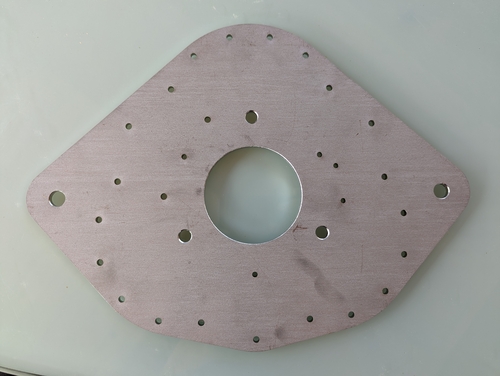

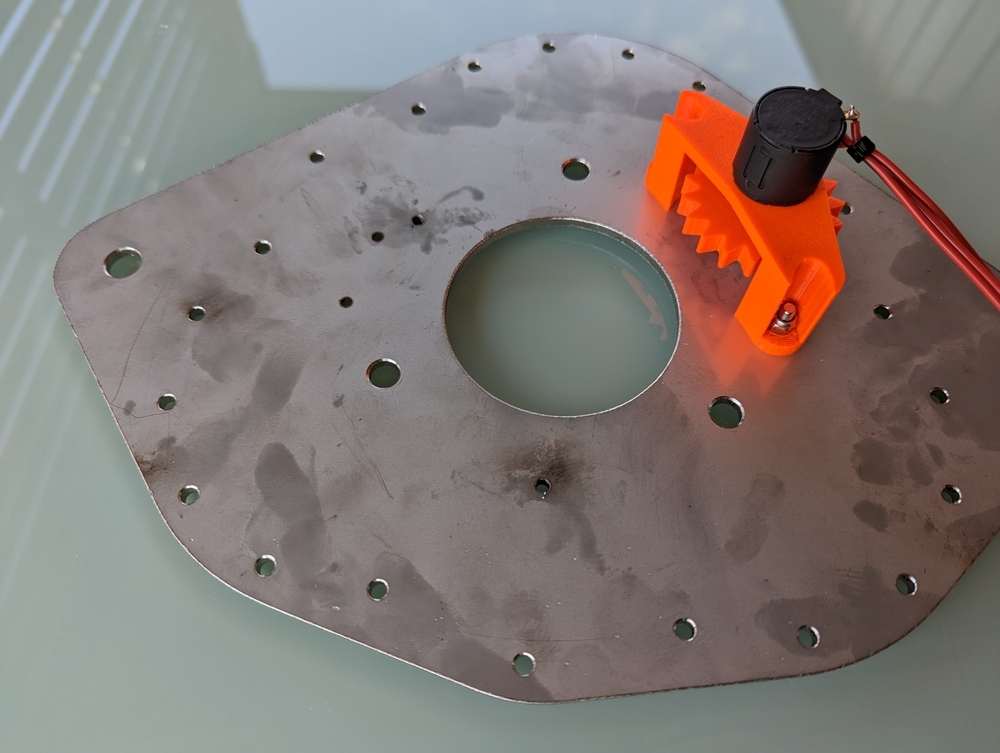

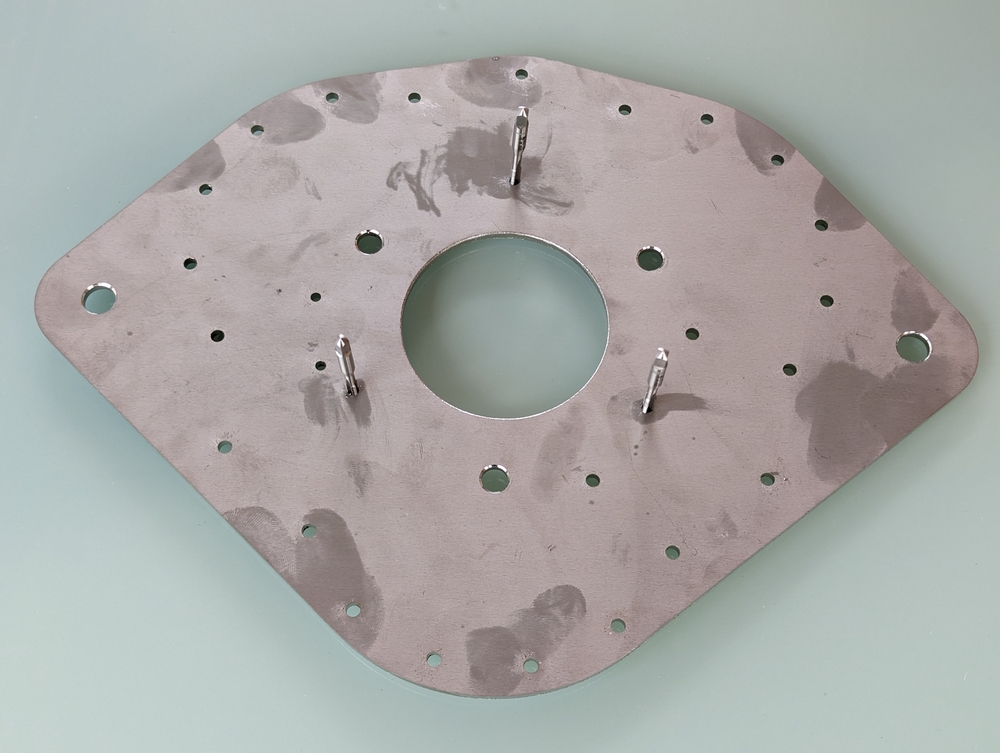

35. Cut M4 threads into the three holes of the main stainless steel plate as shown in the picture

36. Set the azimuth potentiometer to the center position, and screw it to the main stainless plate using two M4x16 screws, plus nuts.


37. Push the wires through the body of the rotator - pay attention to the orientation - they belong to the tunnel located below

38. Place the main stainless steel plate on the rotator body so that the outer axes pass through the plate outwards and secure 21 M4x16 screws. Tighten the screws sensitively, they are cut directly into the plastic

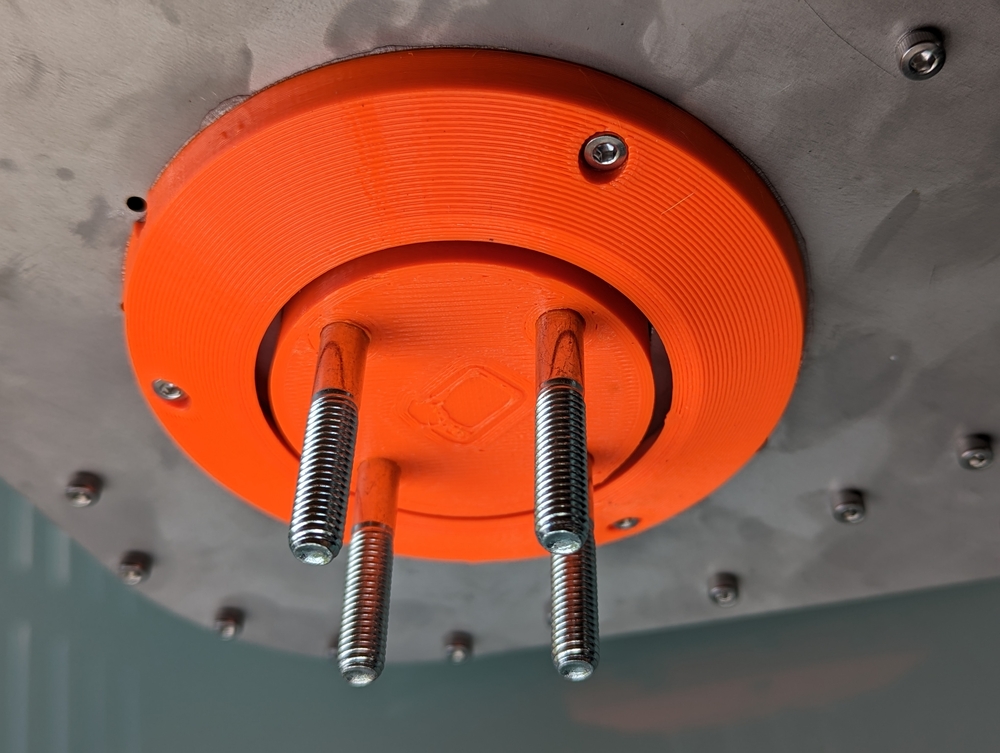

39. Apply silicone sealant to the perimeter groove of part 10.stl

40. And screw it with three M4x16 screws to the main stainless plate

41. apply a small amount of silicone sealant to the center wheel and then slide part 13.stl onto it

42. Now the rotator is complete, ready for use

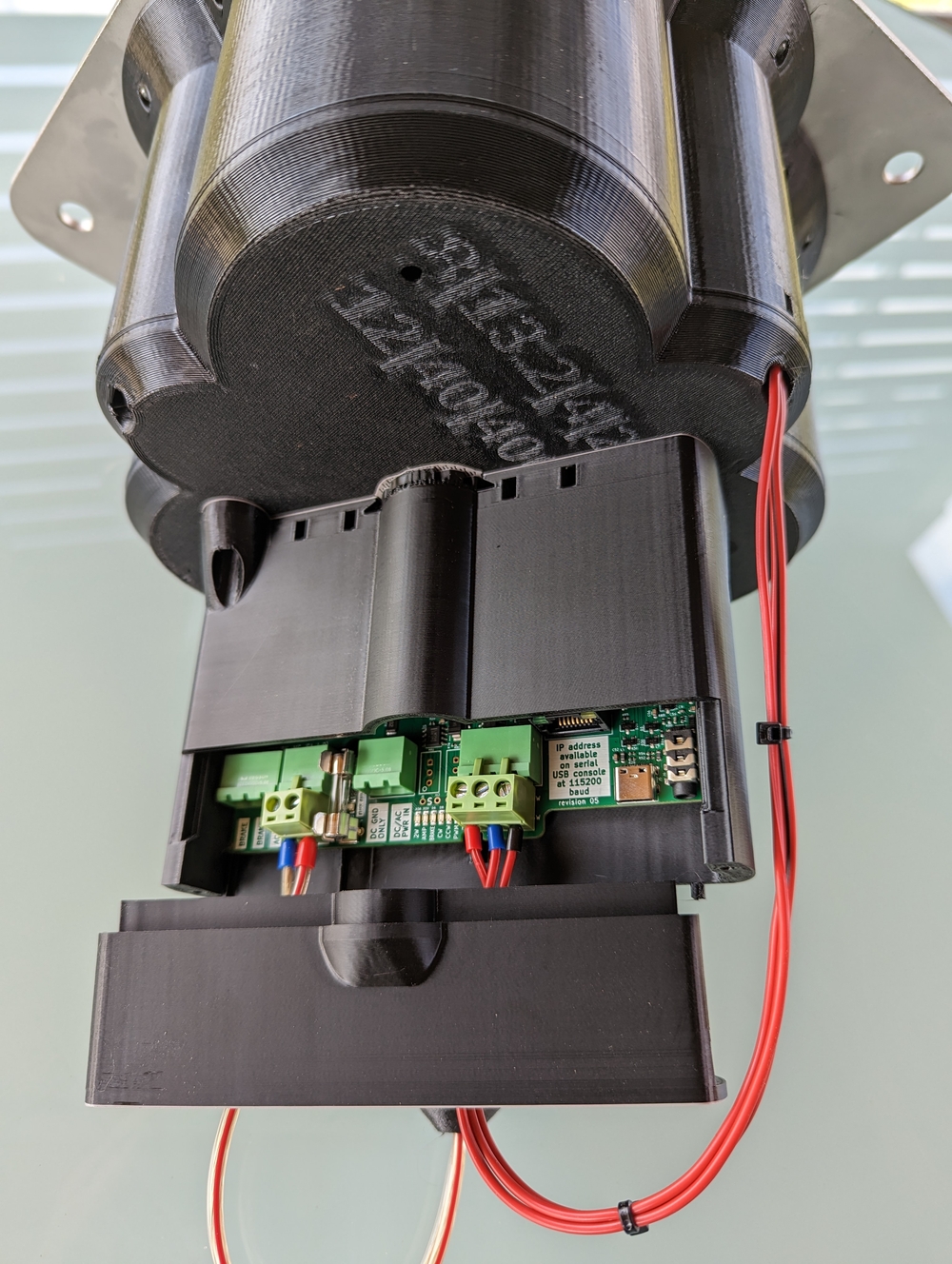

43. An example of using a rotator under a mast
