ESP32 pocket e-ink

(Development version)

• Pocket design with LiPo battery
• 1,54 inch 200x200px e-ink
• Three butons with wake up function
• Micro USB for external power and firmware upload
• Measure circuit
• ESP32 with WiFi connectivity

• .PDF schematics
• Interactive BOM

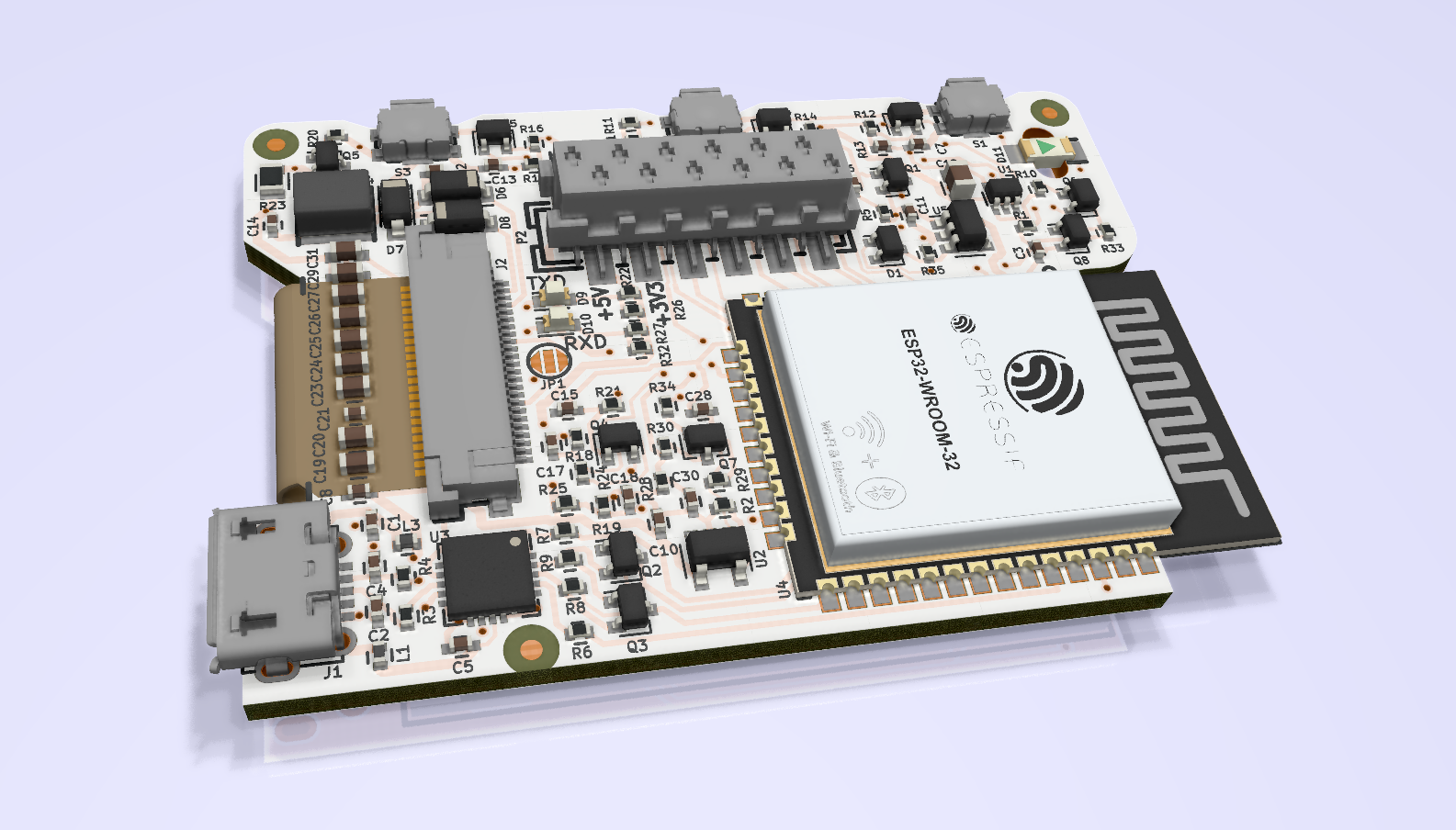

• .STEP 3D model
• .zip KiCad source code

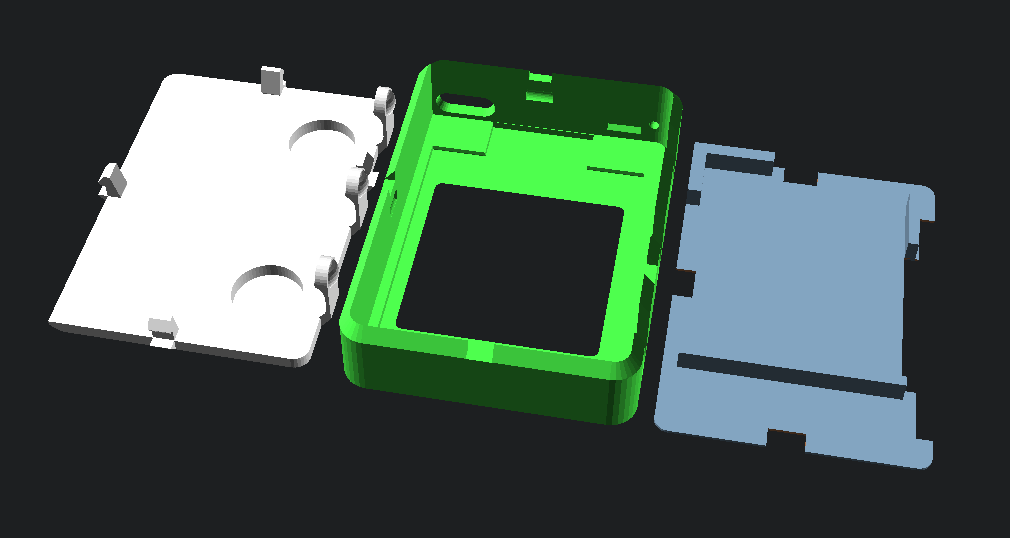

• .zip 3D model source and .stl for case
