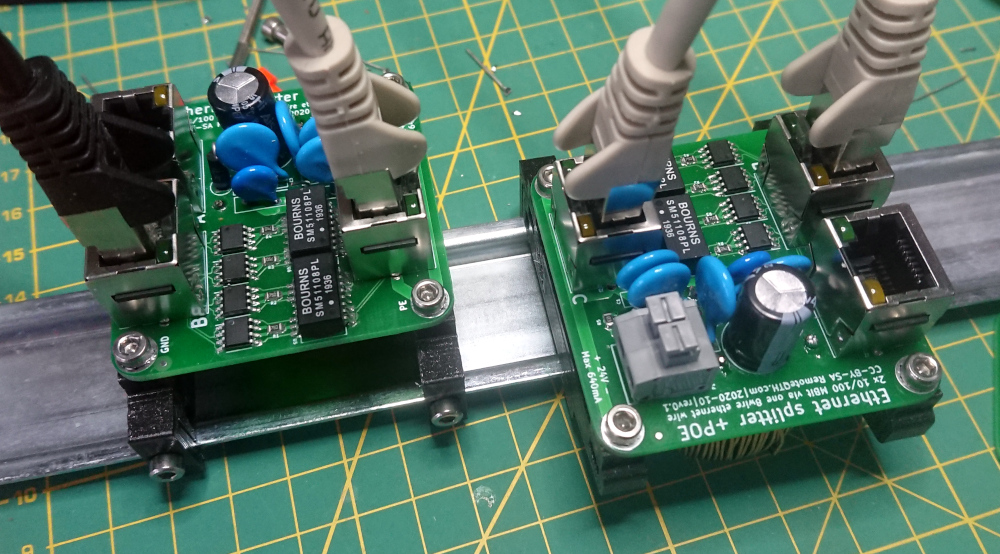

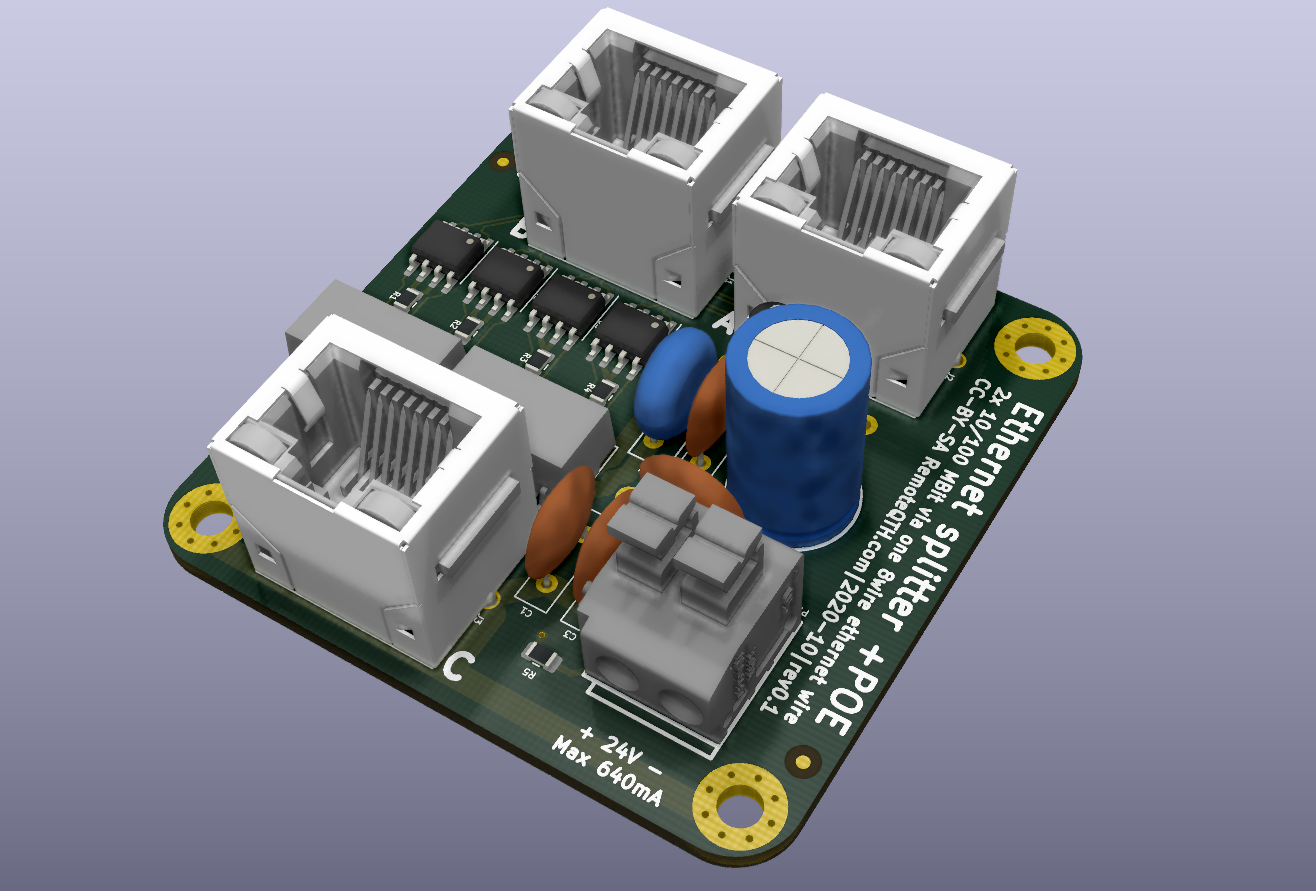

Ethernet splitter +POE
- For split/join two 100 Mbit ethernet, to one UTP wire +POE (for use need two module)
- POE terminal transfer DC voltage from one end to second
- POE limitation MAX 24V/640mA (15W)
- Both side center RJ45 connetor LED, show if POE is present
- POE voltage and polarity protect with fitration common mode choke on both side
- ESD protection with transient voltage suppressor
- Ethernet is galvanically isolated, with insulation 2x 1,5 kV
- Center single wire recomended use with SFTP cable (shield)
- Two grounding potentials GND and PE (Earth) for center line
