Icom IC-705 USB-C 13,8V (rev.03 2025)
Order
(59EUR)
TNX OK1IAK for idea & OK1WPM for simulation
USB-C | 13,8V | 3A | FILTER | DC-JACK
Block diagram
Functionality

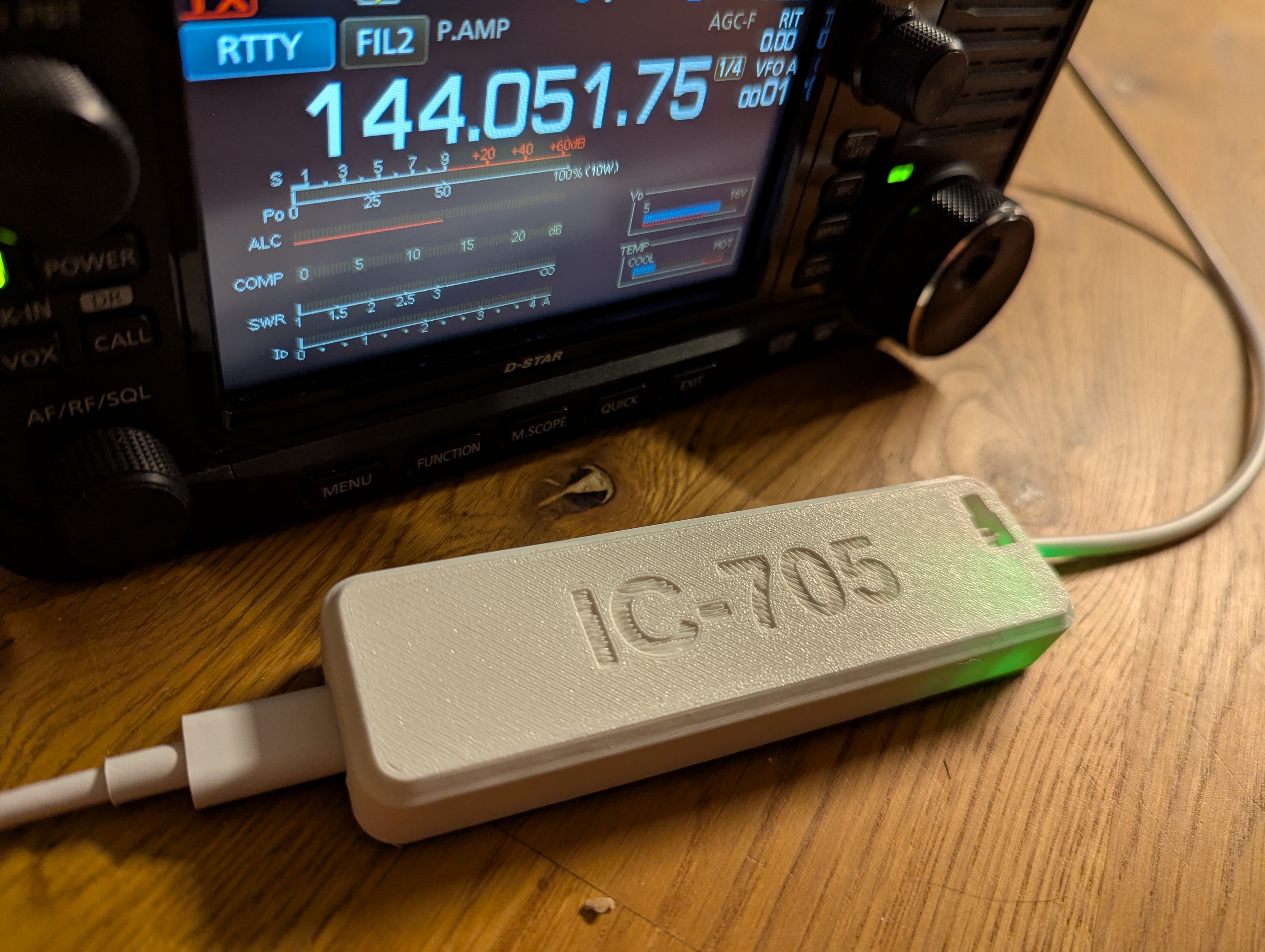

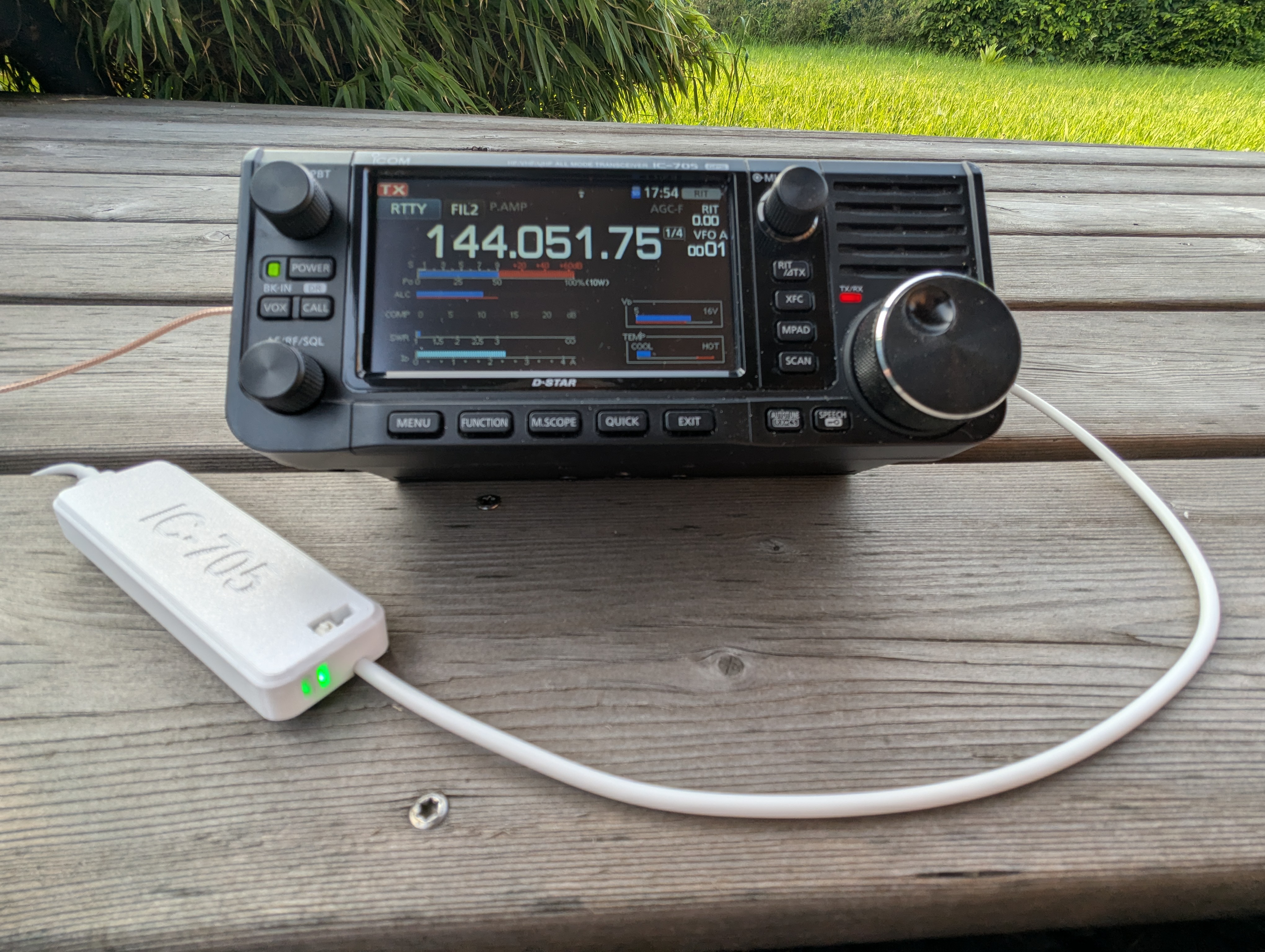

13.8V, max 3A
output allows you to use TRX
IC-705 with 10W output power

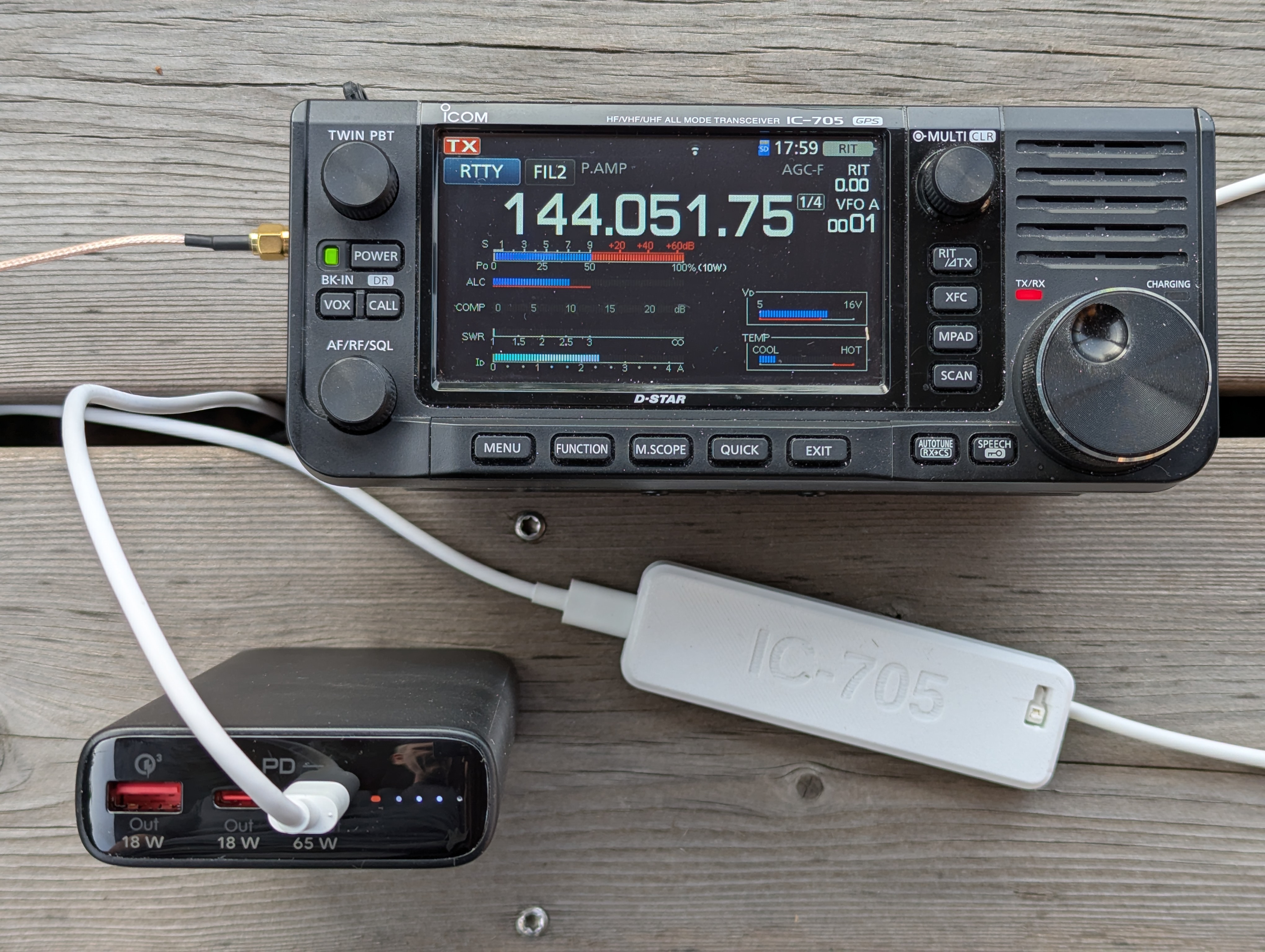

Universal -
use any
USB-C power source
with 15V voltage profile (Apple divider 3, BC1.2 SDP, CDP and DCP detection)

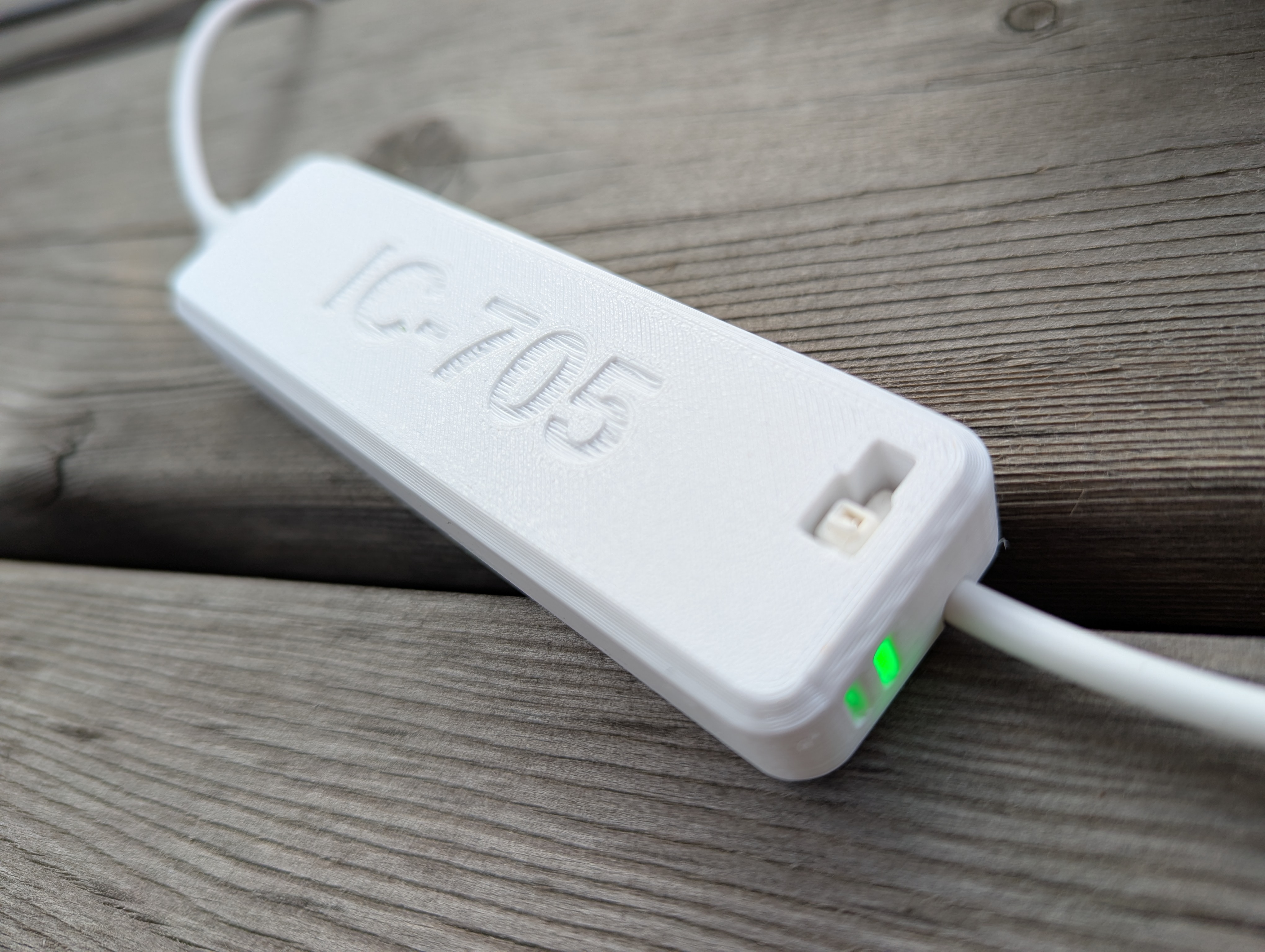

LED indication
of the output voltage for detecting the correct PD source

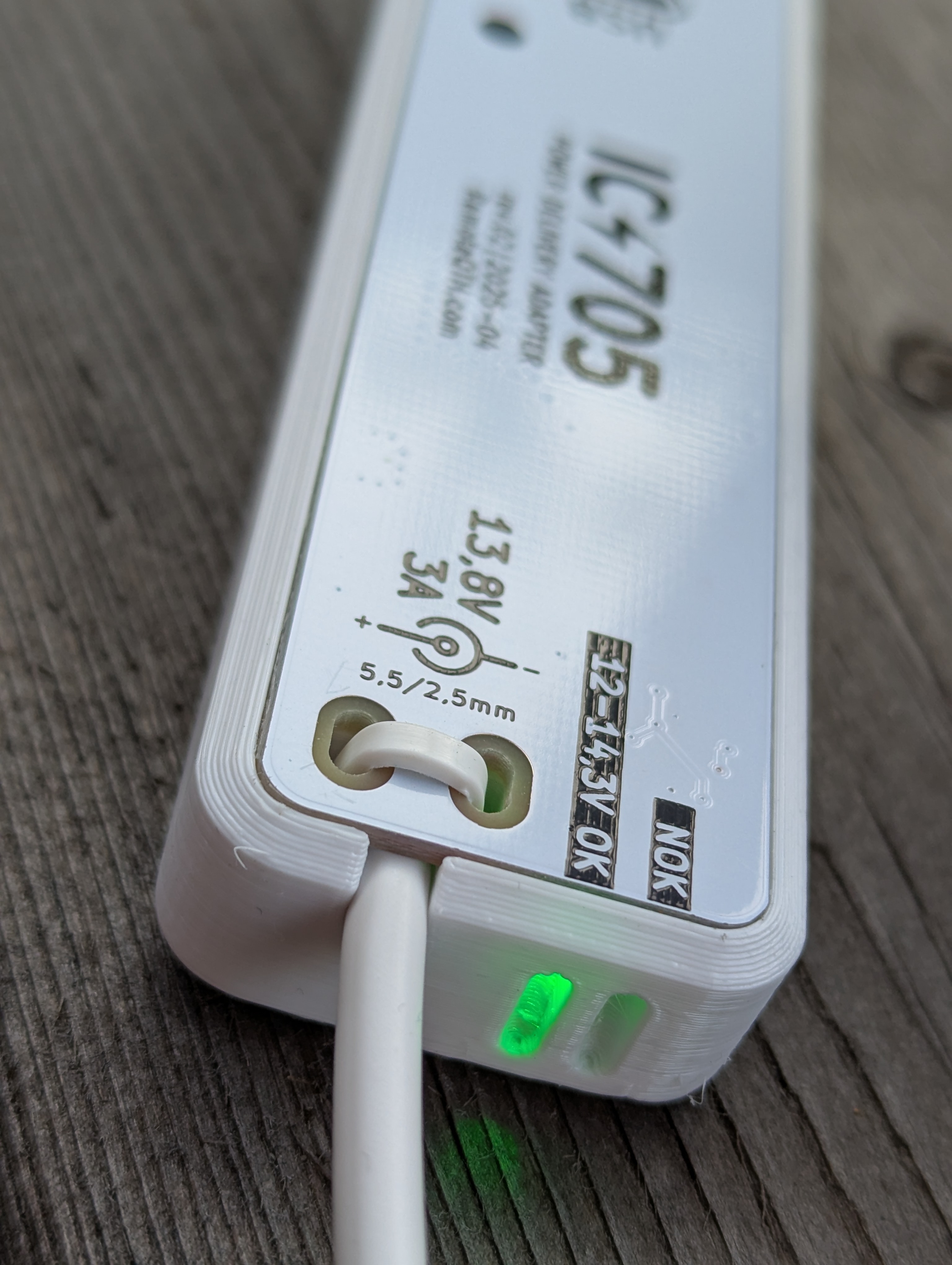

GREEN
- the output voltage is OK, between
12 and 14.3V
RED
- voltage is out of range -
USB-C power delivery probably does not support the 15V/3A
profile
filtering
of the supply voltage against interference TRX IC-705

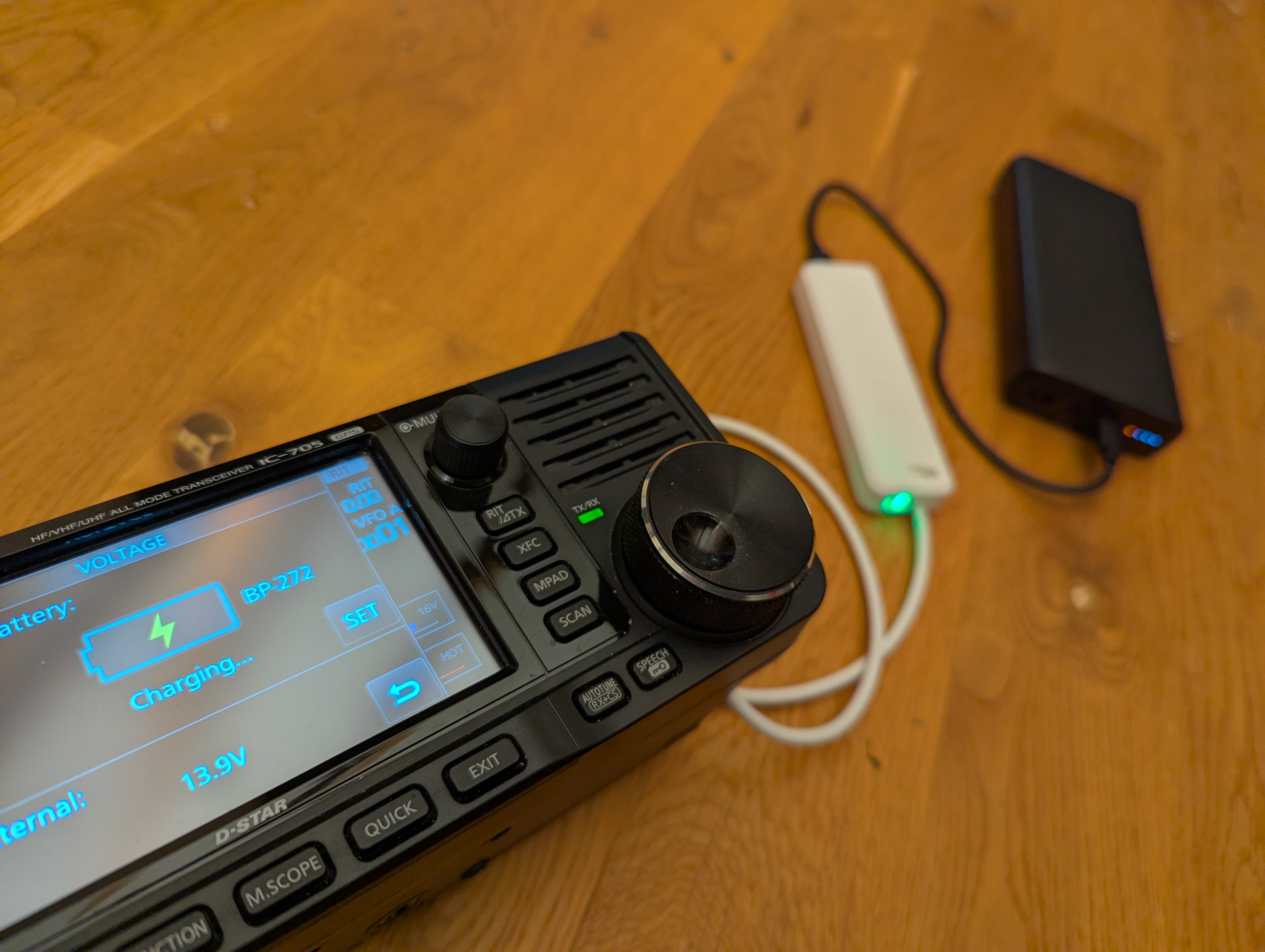

charging the internal battery from a
USB-C PD
power supply
Parameters
Dimensions
106 x 32 x 13mm
Weight
63g
Output Voltage
13,8V (±0,4V) / max 3A,
output current under overload conditions is constant
Files
3D print preview
.3mf
| rev 0.1
.stl
| rev 0.1 (white PETG)
.PDF
schematics rev 0.3
iBOM.html
rev 0.3
