Expandable DIN module

Interfaces

Front view	pinout
	1 - 11-13.8V / 1A max DC PWR input 2 - GND
	2x JST 1-wire for DS18B20 thesrnistor 1 - +3,3V / max 500mA 2 - 1-wire bus (Gpio15) 3 - GND
	2 - RS485-A 1 - RS485-B
Four LEDs	RED - fail fuse GRN - ETH 100M GRN - ETH ACT GRN - Power
	USB-C serial +5V VBUS SBU1 - 3V3 Gpio33 (I2C SDA) SBU2 - 3V3 Gpio32 (I2C SCL)
	1,2,3,6 - Ethernet 4+5 - POE DC power input 12-24V/max 1A, any polarity 7+8 - POE DC power input 12-24V/max 1A, any polarity Green LED - 100M Yelow LED - ACT

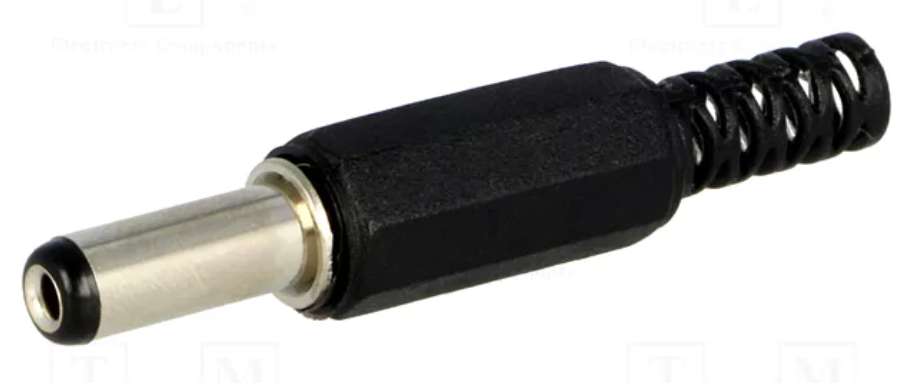

1x	DC Power connector 5,5/2,1mm	https://www.tme.eu/cz/details/pc-2.1_5.5-14/konektory-dc/changzhou-dahua-imp-and-exp-group-co/vg18013a/
2x	DS18B20 with JST conector	https://www.laskakit.cz/en/dallas-ds18b20-digitalni-vodotesne-cidlo-teploty-3m/
1x	RS485 connector	https://www.tme.eu/cz/details/tj0231530000g/rozpojitelne-svorkovnice/amphenol-anytek/
2x	M3x10mm	https://www.tme.eu/cz/details/b3x10_bn2844/srouby/bossard/1489380/
1x	1A fuse	https://www.tme.eu/cz/details/0218001.txp/pojistky-5x20mm-zpozdene/littelfuse/
30g	fillament PETG-V0 UL94-V0 UL certificate IEC 60695-11-10	https://www.prusa3d.com/cs/produkt/prusament-petg-v0-natural-1kg/
