DIN module SOLARBEAM (rev.01 2025)

Interfaces

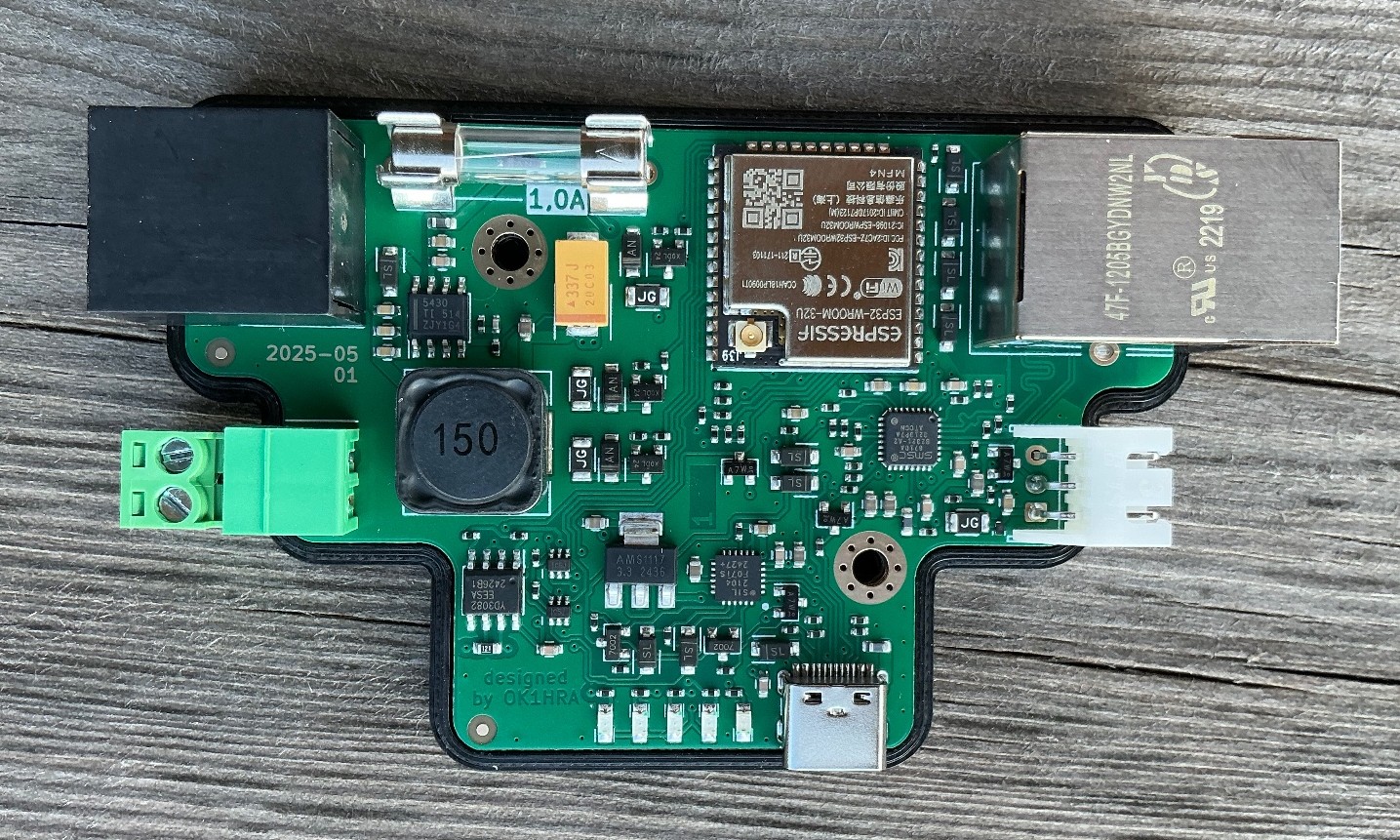

Front view	pinout
	1 - from 12 to 24V DC from PWR input 2 - open colector 500mA Stykac2 with 10k pull-up 3 - from 12 to 24V DC from PWR input 4 - open colector 500mA Stykac1 with 10k pull-up 5 - from 12 to 24V DC from PWR input 6 - open colector 500mA SSR with 10k pull-up 7 - RS485-A 8 - RS485-B
	2 - input power from 12 to 24V DC/1A 1 - GND
	SMA female 2,4G WiFi antenna connector
Five LEDs	RED - fail fuse RED - SSR RED - STYKAC1 RED - STYKAC2 GREEN - Power
	USB-C serial +5V VBUS SBU1 - 3V3 Gpio33 (I2C SDA) SBU2 - 3V3 Gpio32 (I2C SCL)
	JST 1-wire for DS18B20 thesrnistor 1 - +3,3V / max 500mA 2 - 1-wire bus (Gpio15) 3 - GND
	1,2,3,6 - Ethernet 4+5 - POE DC power input 12-24V/max 1A, any polarity 7+8 - POE DC power input 12-24V/max 1A, any polarity Green LED - 100M Yelow LED - ACT

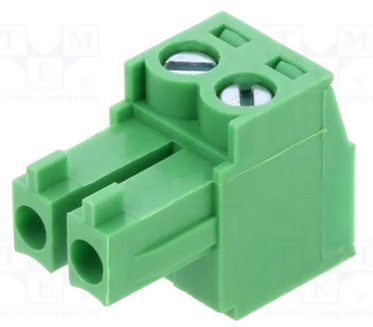

1x	Power connector	https://www.tme.eu/cz/details/tj0231530000g/rozpojitelne-svorkovnice/amphenol-anytek/

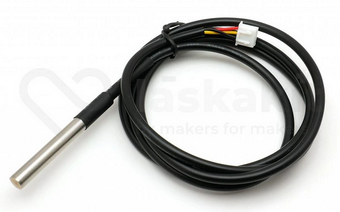

1x	DS18B20 with JST conector	https://www.laskakit.cz/en/dallas-ds18b20-digitalni-vodotesne-cidlo-teploty-3m/
1x	WiFi antenna + 5cm UF.L pigtail	https://www.hadex.cz/o856-antena-wifi-24ghz--pigtail-ufl-sma/?gQT=1

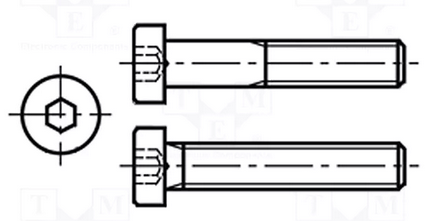

2x	M3x10mm	https://www.tme.eu/cz/details/b3x10_bn2844/srouby/bossard/1489380/

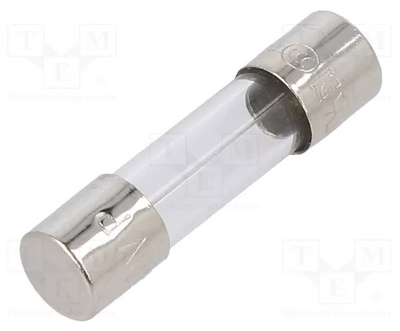

1x	1A fuse	https://www.tme.eu/cz/details/0218001.txp/pojistky-5x20mm-zpozdene/littelfuse/

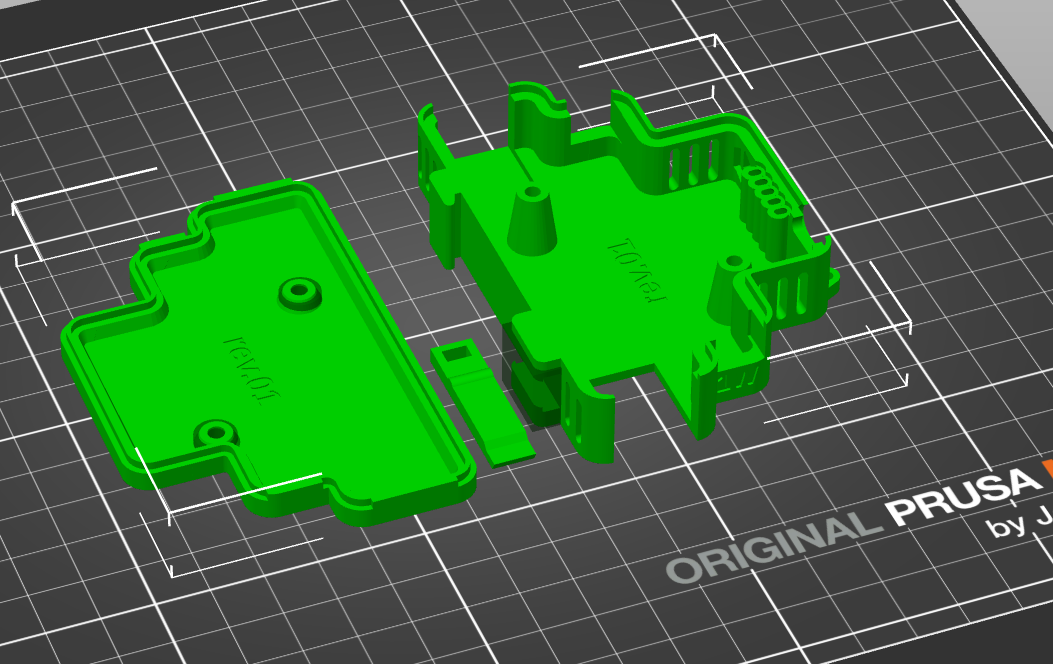

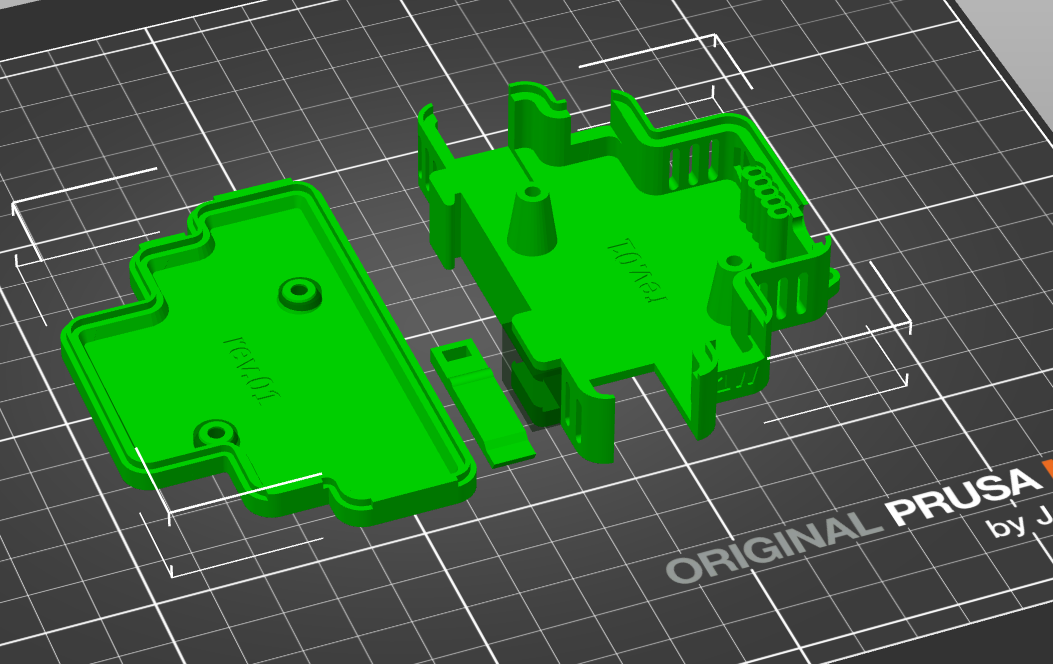

30g	fillament PETG-V0 UL94-V0 UL certificate IEC 60695-11-10	https://www.prusa3d.com/cs/produkt/prusament-petg-v0-natural-1kg/
