Icom IC-705 USB-C power delivery (rev.03 2025)

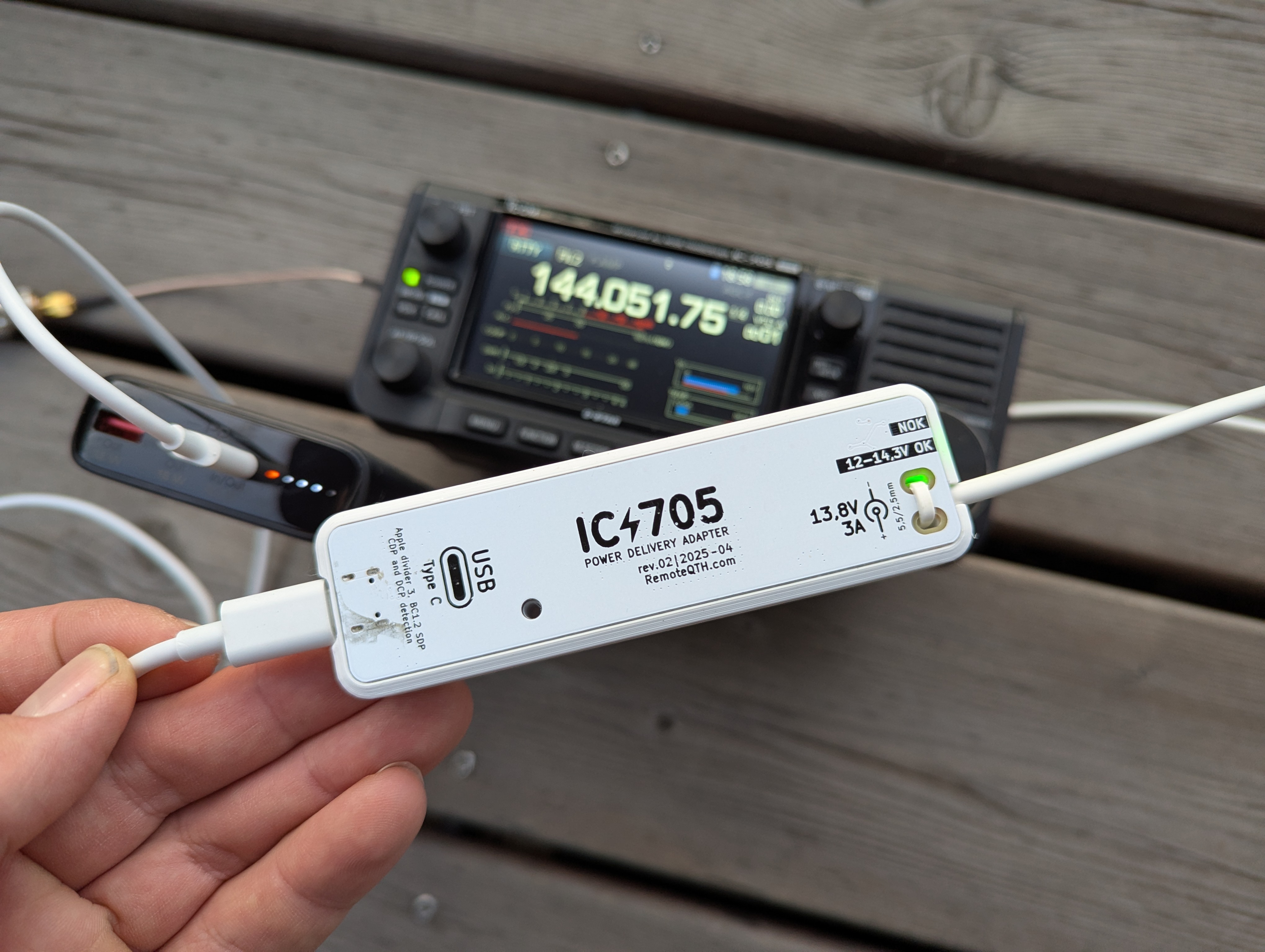

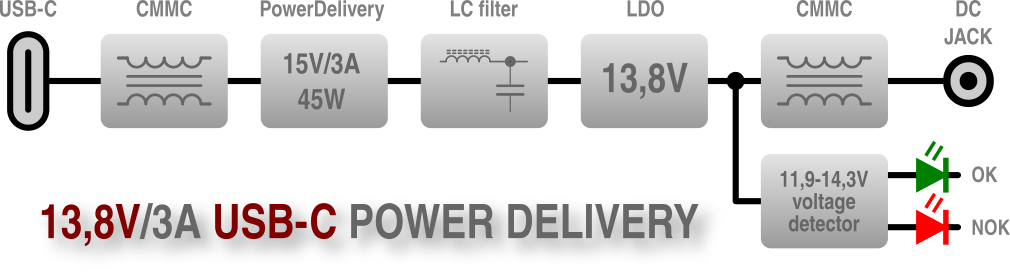

Block diagram

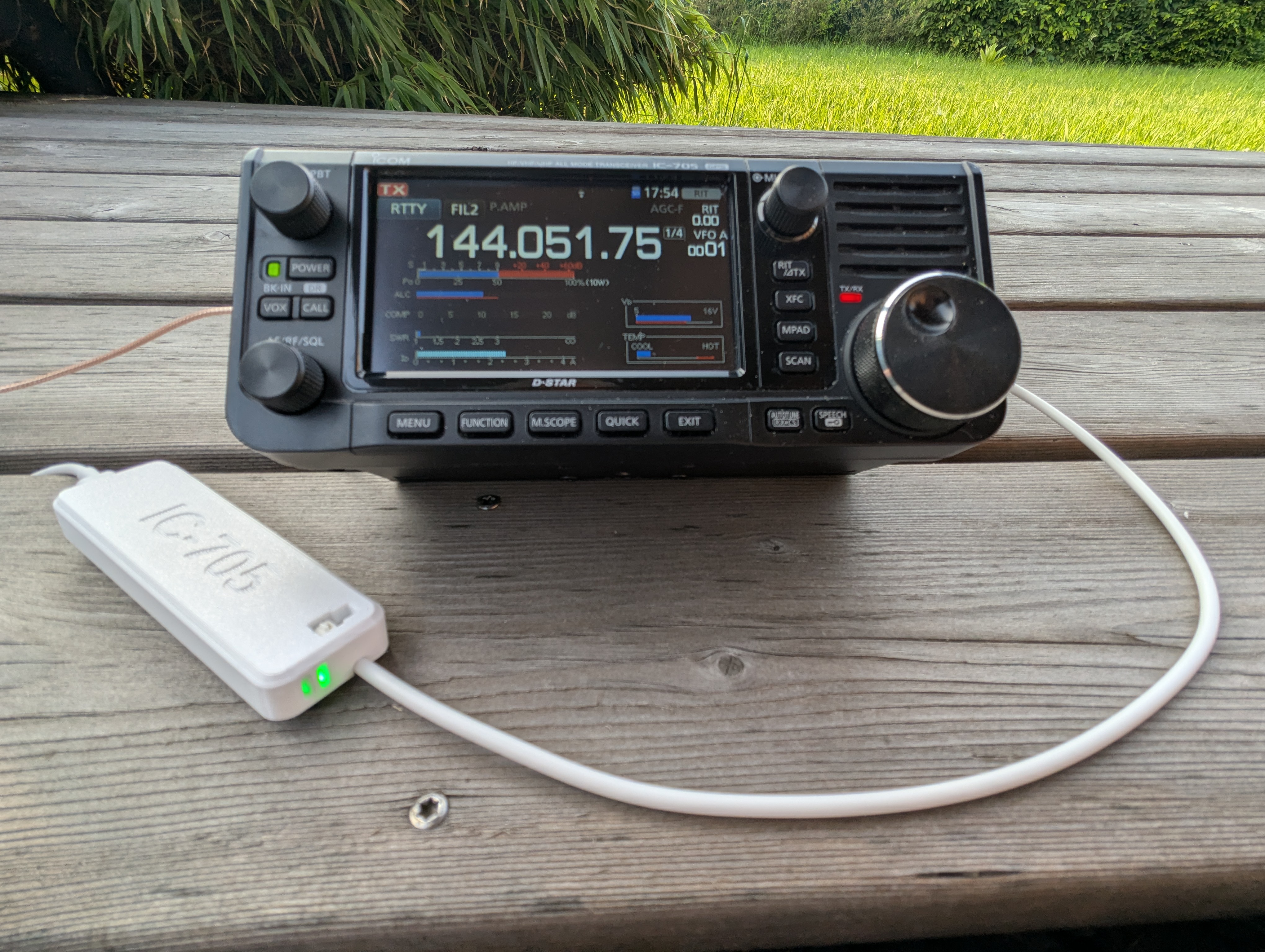

13.8V, max 3A output allows you to use TRX IC-705 with 10W output power

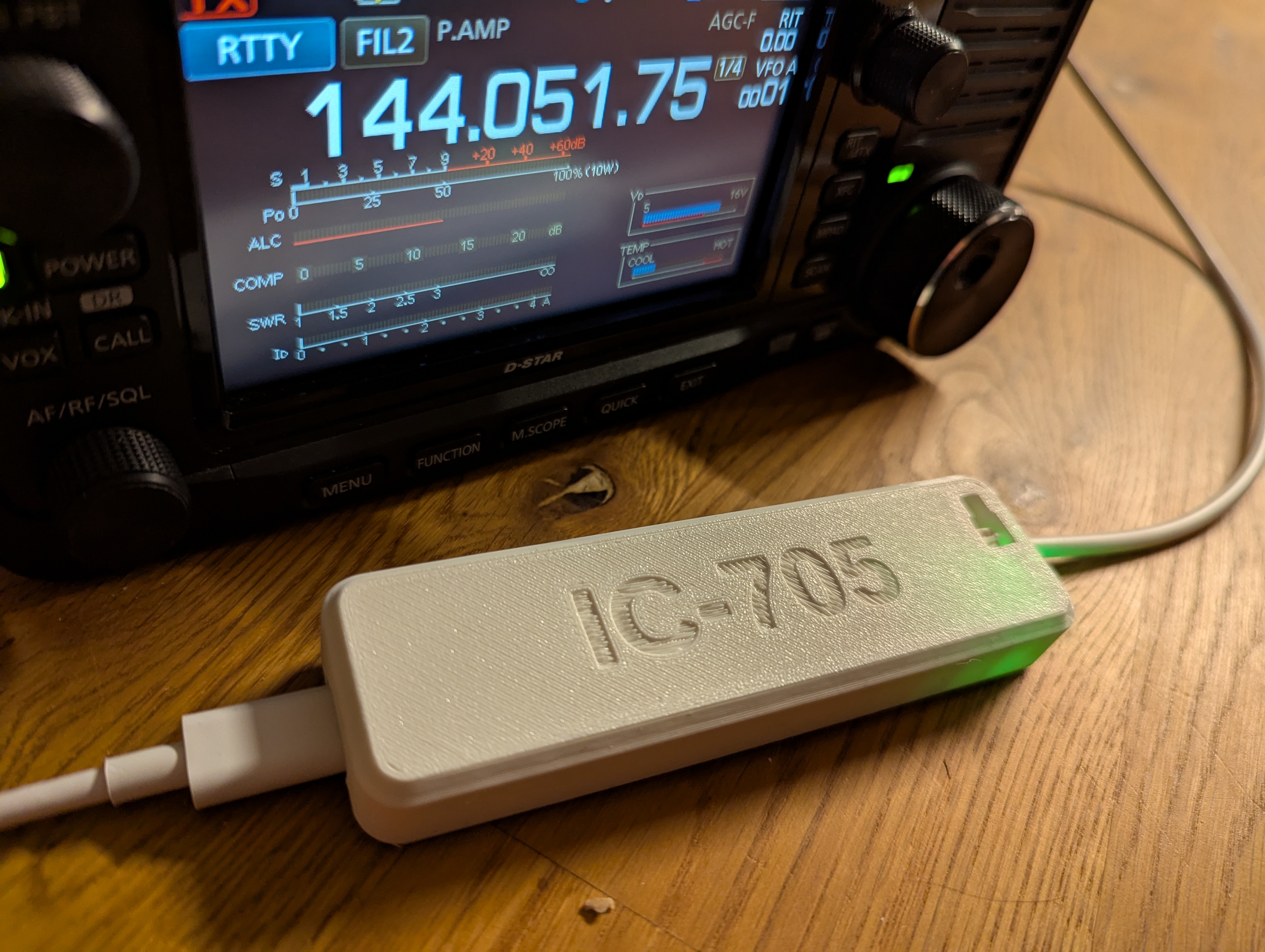

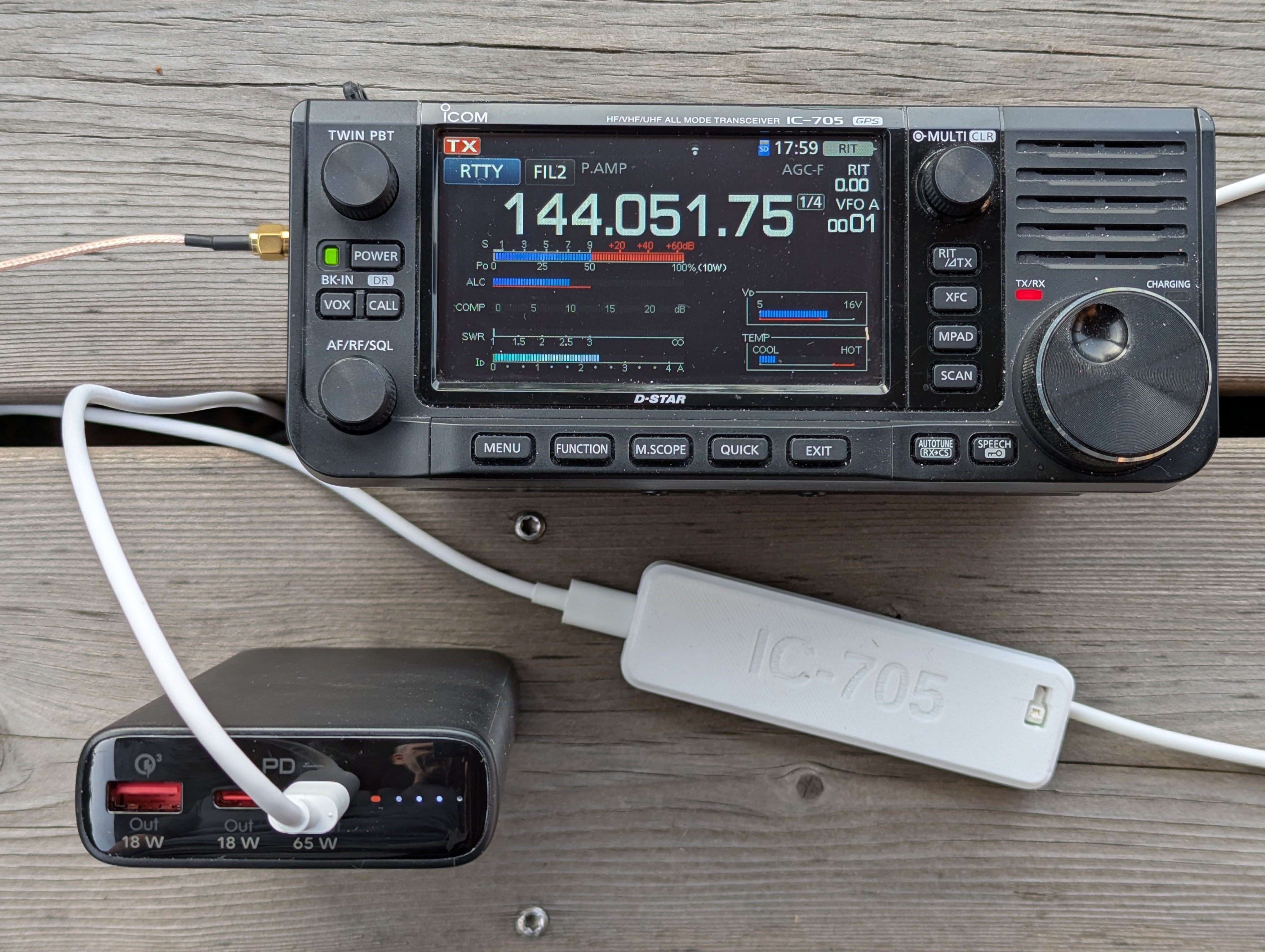

Universal - use any USB-C power source with 15V voltage profile (Apple divider 3, BC1.2 SDP, CDP and DCP detection)

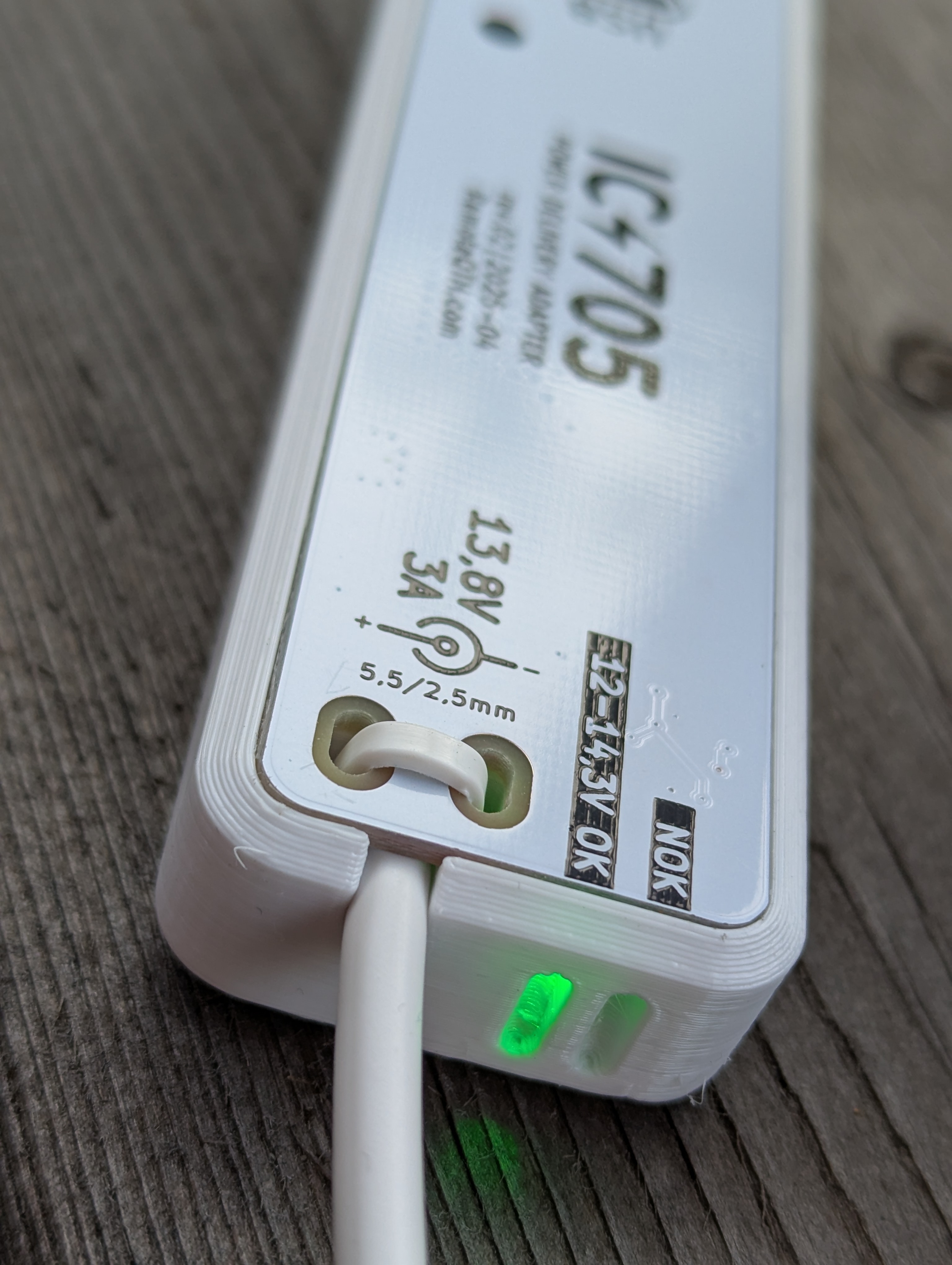

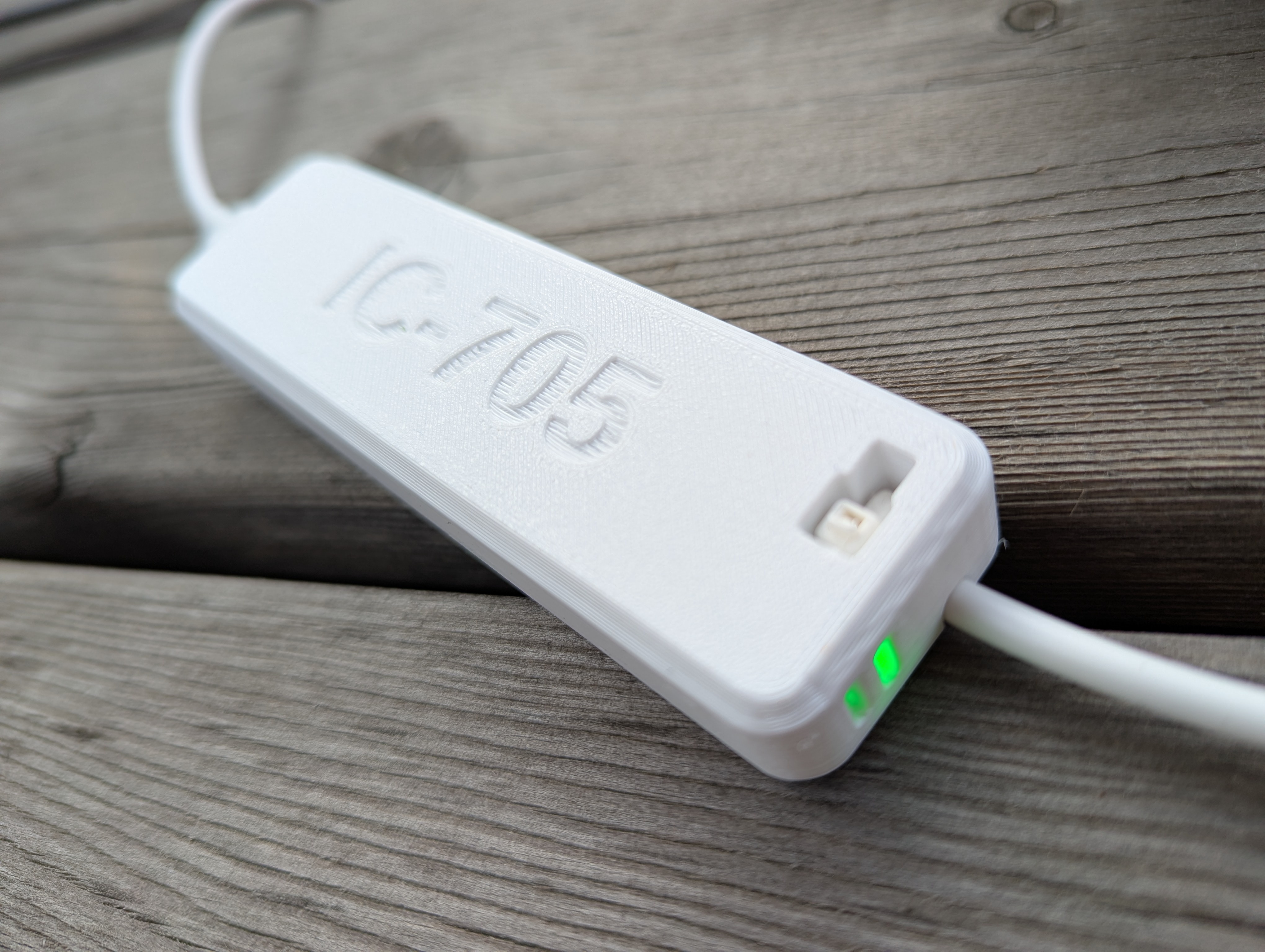

LED indication of the output voltage for detecting the correct PD source
- GREEN - the output voltage is OK, between 12 and 14.3V
- RED - voltage is out of range - USB-C power delivery probably does not support the 15V/3A profile
filtering of the supply voltage against interference TRX IC-705

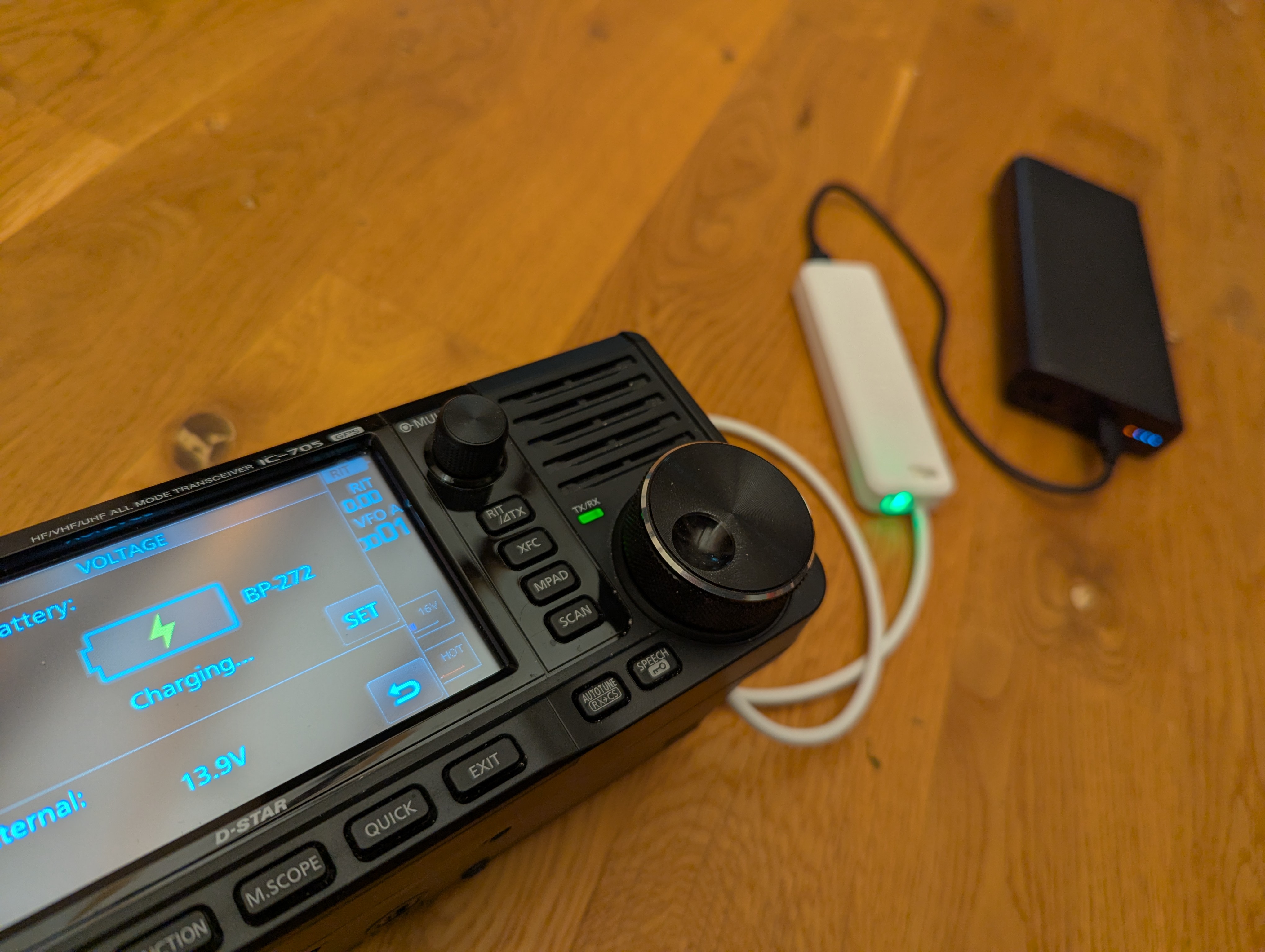

charging the internal battery from a USB-C PD power supply

Dimensions 106 x 32 x 13mm
Weight 173g
Output Voltage 13,8V / max 3A (output current under overload conditions is constant)
