rx-splitter
RX splitter
- Split RX antenna to TRX and SDR
- Safe TRX, if turn off, TRX and SDR is grounded
- Bypass to VNA - ground if not use
- DC bias current for eliminate relay resistance, indicated with LED
- 12V DC power spply

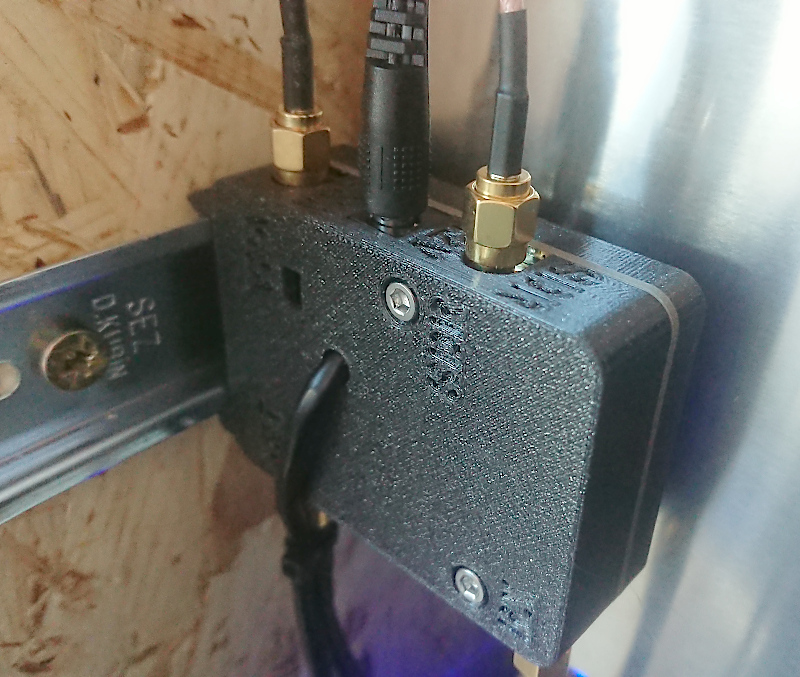

- 3D print case for mount to DIN rail
Source
