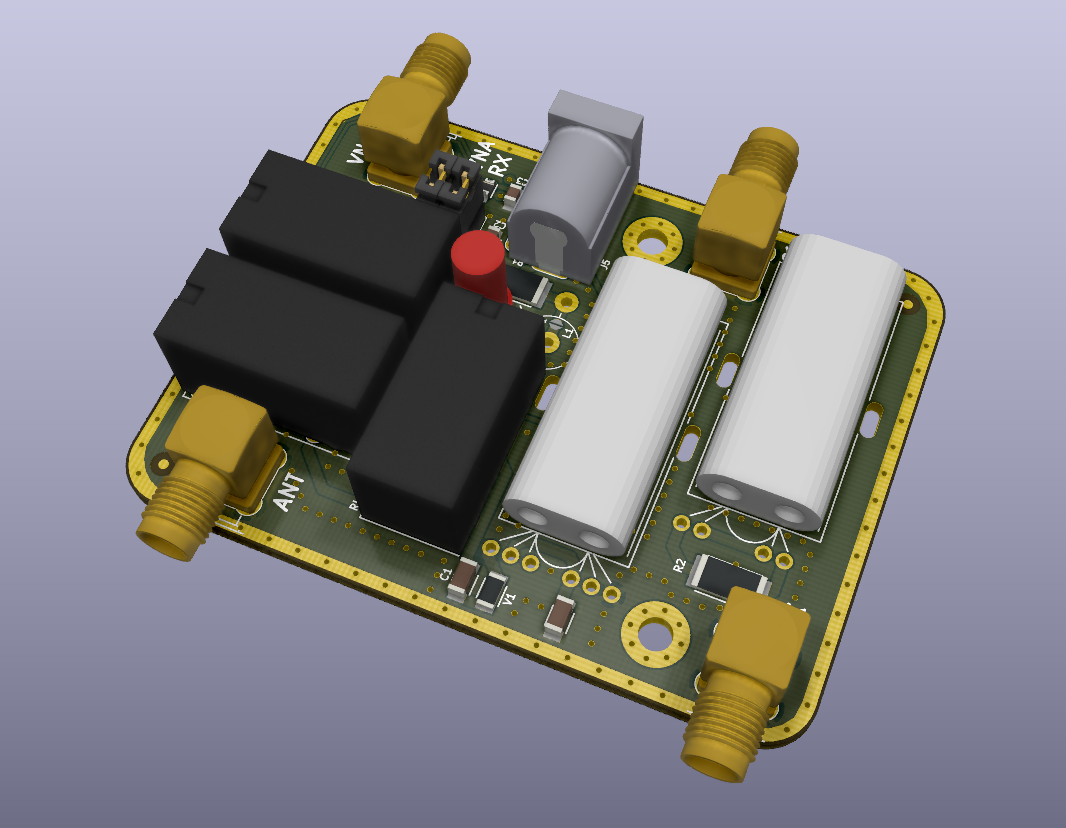

RX splitter

remoteqth.com_img_wiki-rx-splitter-0.3-02.jpg remoteqth.com_img_wiki-rx-splitter-0.3-03.jpg

remoteqth.com_img_wiki-rx-splitter-0.3-04.jpg remoteqth.com_img_wiki-rx-splitter-0.3-05.jpg

  • Split RX antenna to TRX and SDR
  • Safe TRX, if turn off, TRX and SDR is grounded
  • Bypass to VNA - ground if not use
  • DC bias current for eliminate relay resistance, indicated with LED
  • 12V DC power spply
  • 3D print case for mount to DIN rail
