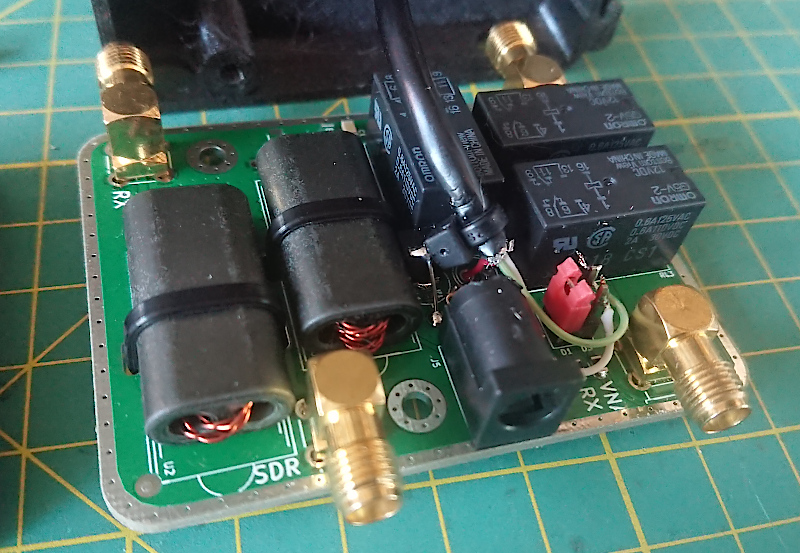

Split RX antenna to TRX and SDR
Safe TRX, if turn off, TRX and SDR is grounded
Bypass to VNA - ground if not use
DC bias current for eliminate relay resistance, indicated with LED
12V DC power spply

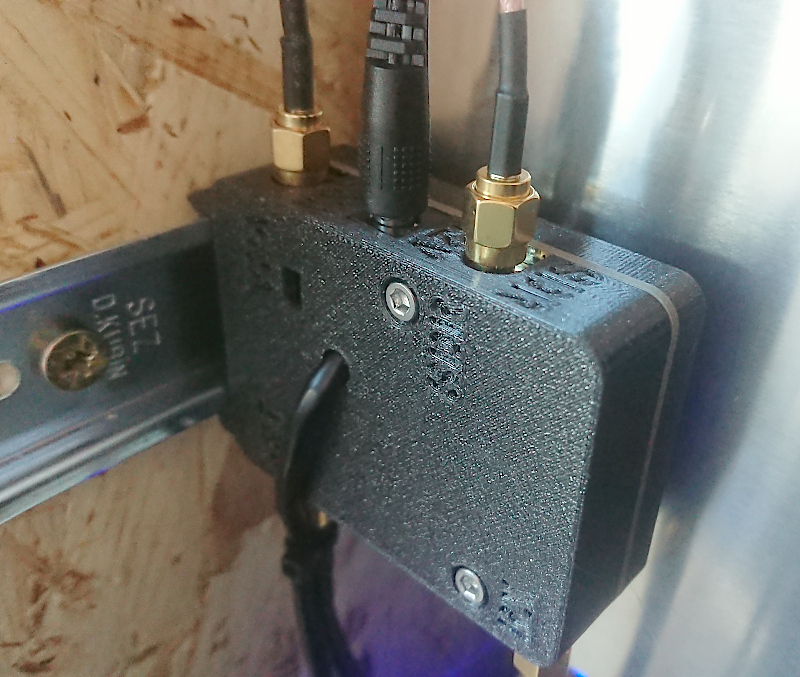

3D print case for mount to DIN rail
