USB rotator interface 4

Web page



New features

  • independent power GND
  • support two wire or grounded center azimuth potentiometer
  • support ten turn potentiometer
  • support cw/ccw pulse inputs
  • compact small smd layout
  • better mechanical assembly with 3d print parts
  • robust usb-B connector
  • support PWM start/stop with DC power (optional)

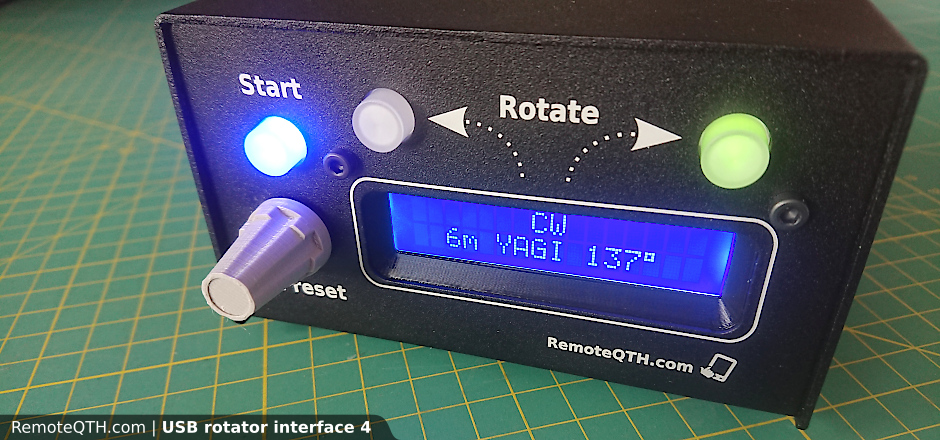

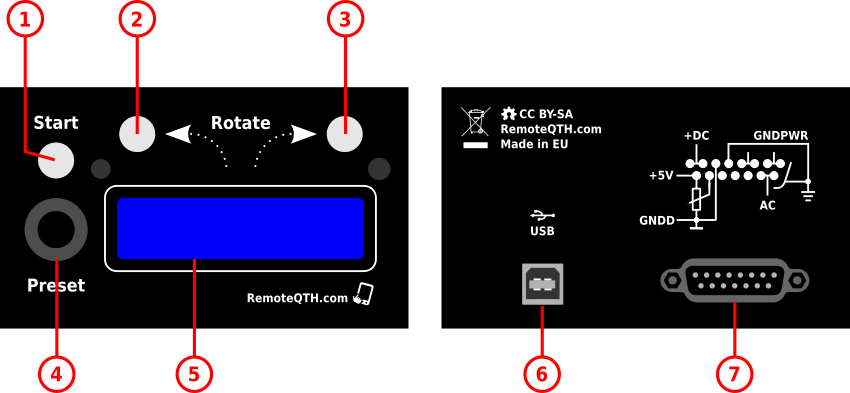

  1. Start light button
  2. CCW rotate light button
  3. CW rotate light button
  4. Preset encoder
  5. LCD display

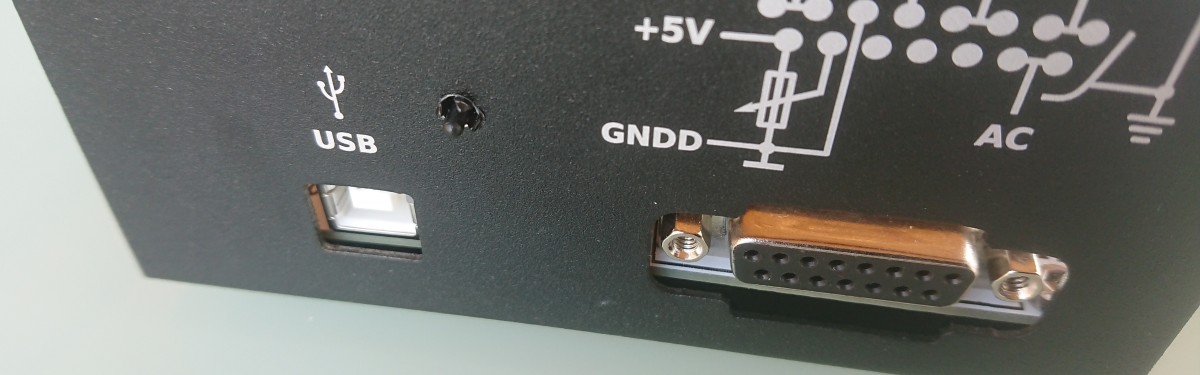

  6. USB-B connector
  7. D-Sub 15 pin connector

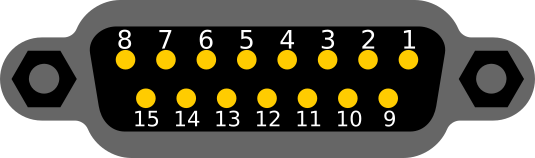

D-Sub 15 pin connector layout

Pin number AC motor functionality DC motor functionality
1 - DC motor (+) output
3 AC motor output CCW DC motor (-) output
5 GND (power input) / (motor output)
6 GND digital (USB) input
7 AC motor output CW DC (+) power for motor input
9 AC power input -
11 AC brake output DC brake output

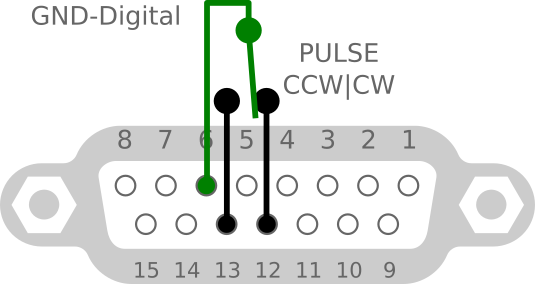

12 PULSE CW input - open collector with 10k pull up to +5V
13 PULSE CW input - open collector with 10k pull up to +5V
14 Azimuth input 0-5V DC from potentiometer
15 +5V DC input (max 400mA) also for azimuth potentiometer
shield GND (power input) / (AC motor output)

Voltage/current carrying capacity is limited by the relays used, see datasheet.


How to assembly

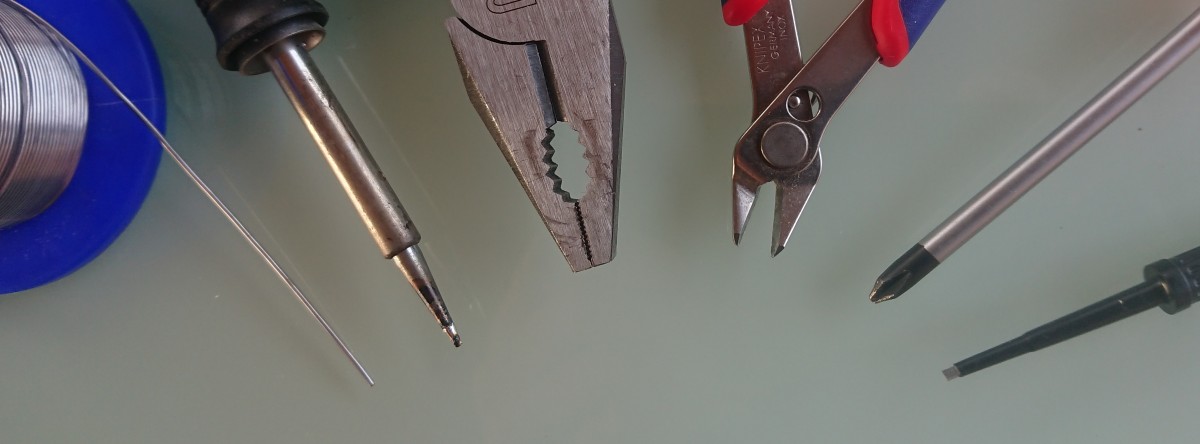

What tools do you need to build

  • Tin
  • Solder
  • Pliers
  • Splitters
  • Phillips screwdriver
  • Small flat screwdriver
  • + 2,5mm imbus (packed in KIT)
  • Ohmetter (for op-amp preset)
  • Electric drill and 3.5mm drill bit for DC PWM (optional)

Steps of assembly

For finding any components use .html | Interactive BOM 4.0.3 with search window.
The estimated difficulty of the assembly - for moderately advanced solder maker.

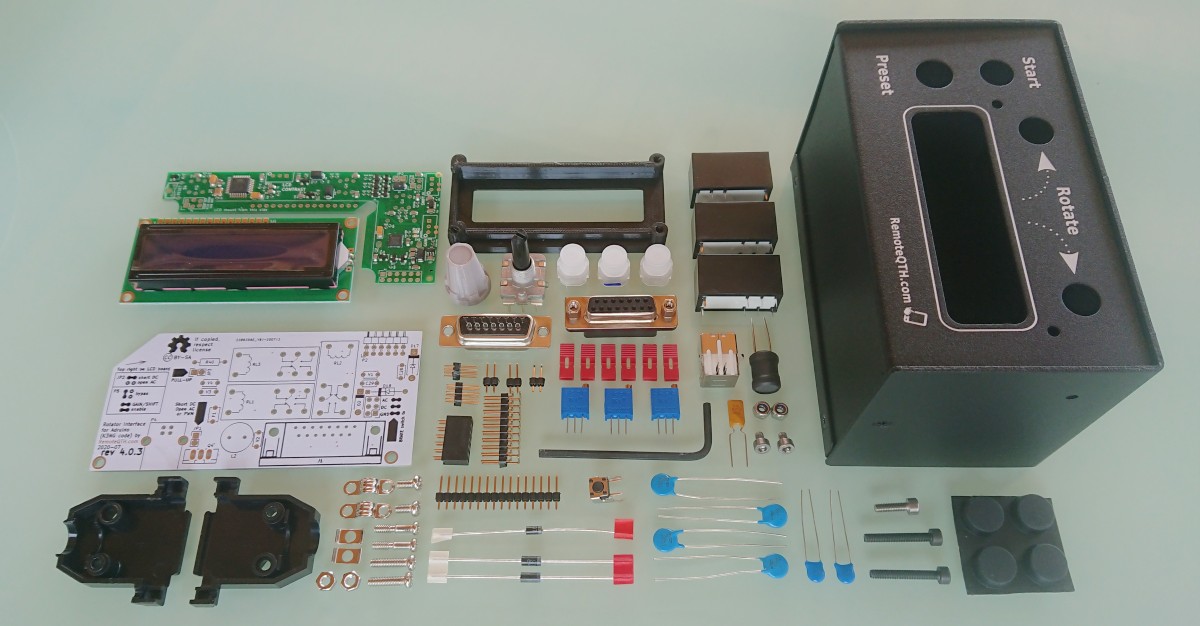

  1. Check all parts remoteqth.com_img_wiki-rot4-04.jpg

  2. First time solder three connectors P2,P3, P4 remoteqth.com_img_wiki-rot4-54.jpg

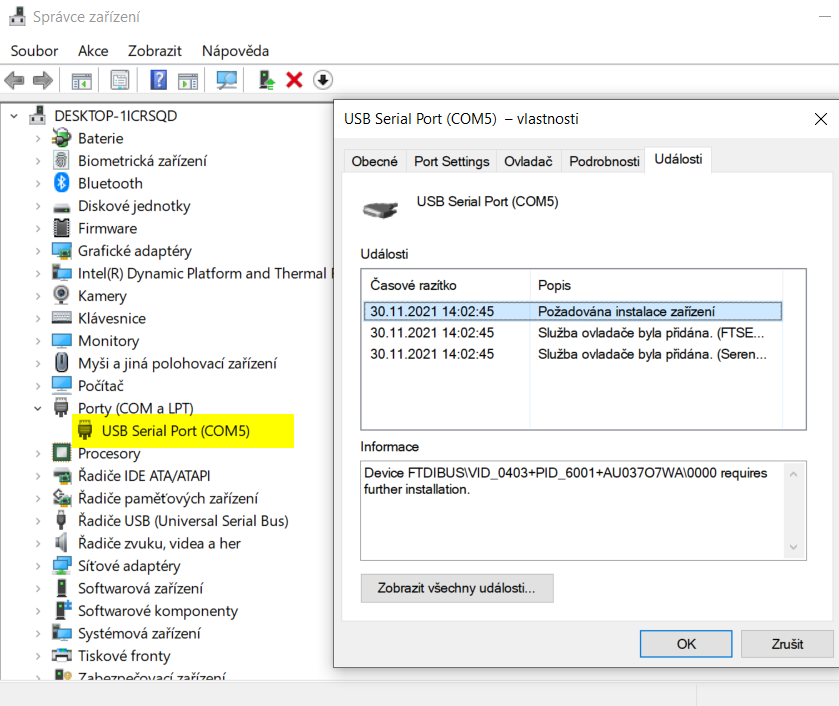

  3. Connect USB cable to Rotator interface and your PC, and check (device manager in windows) that the USB converter has been recognized correctly. Contact us if you have any problems and do not continue assembly.

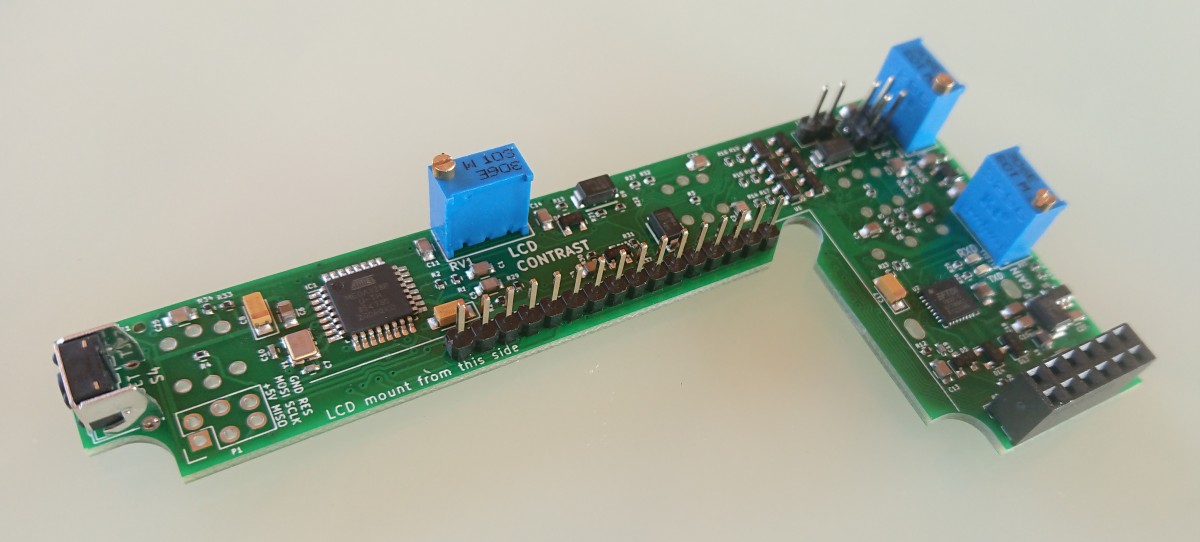

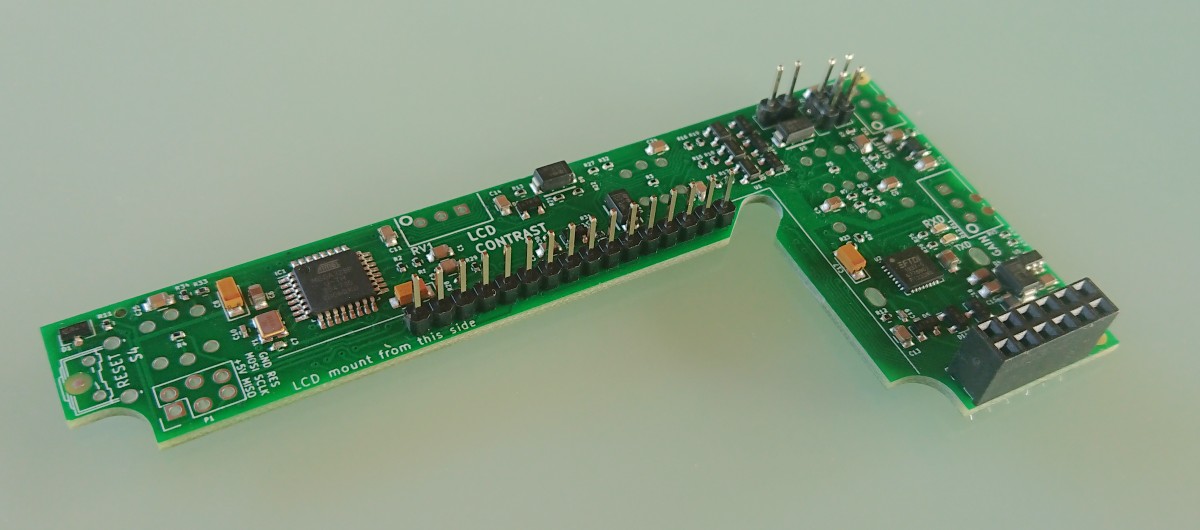

  4. Solder pinheader P5, JP2, U1 and pinsocket 6×2 P3
    WARNING, do not solder P1!
    Explanation: P1 use in factory for upload bootloader to CPU, therefore no further need. remoteqth.com_img_wiki-rot4-05.jpg

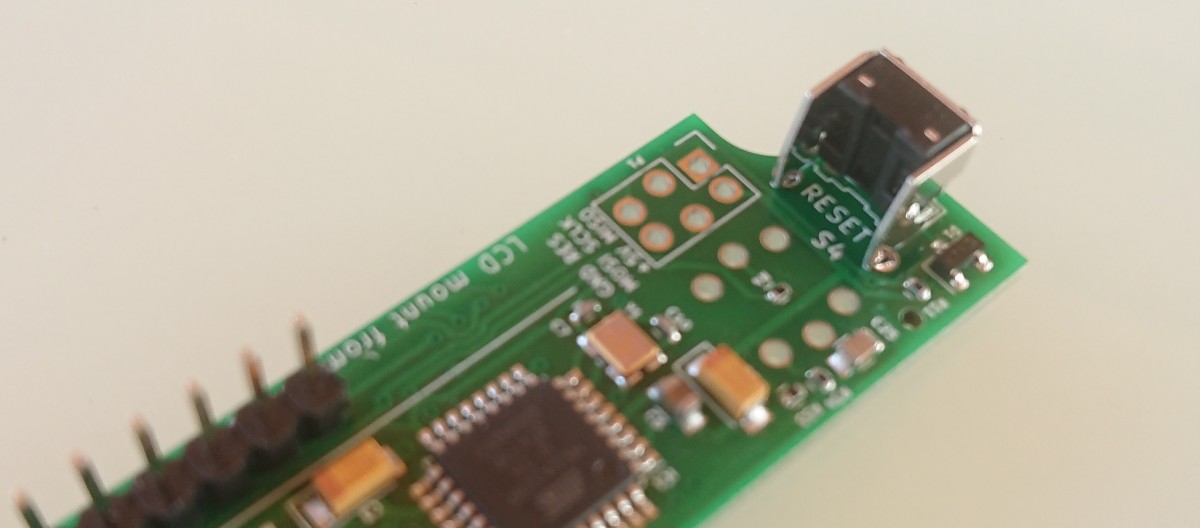

  5. Solder S4 reset switch remoteqth.com_img_wiki-rot4-06.jpg

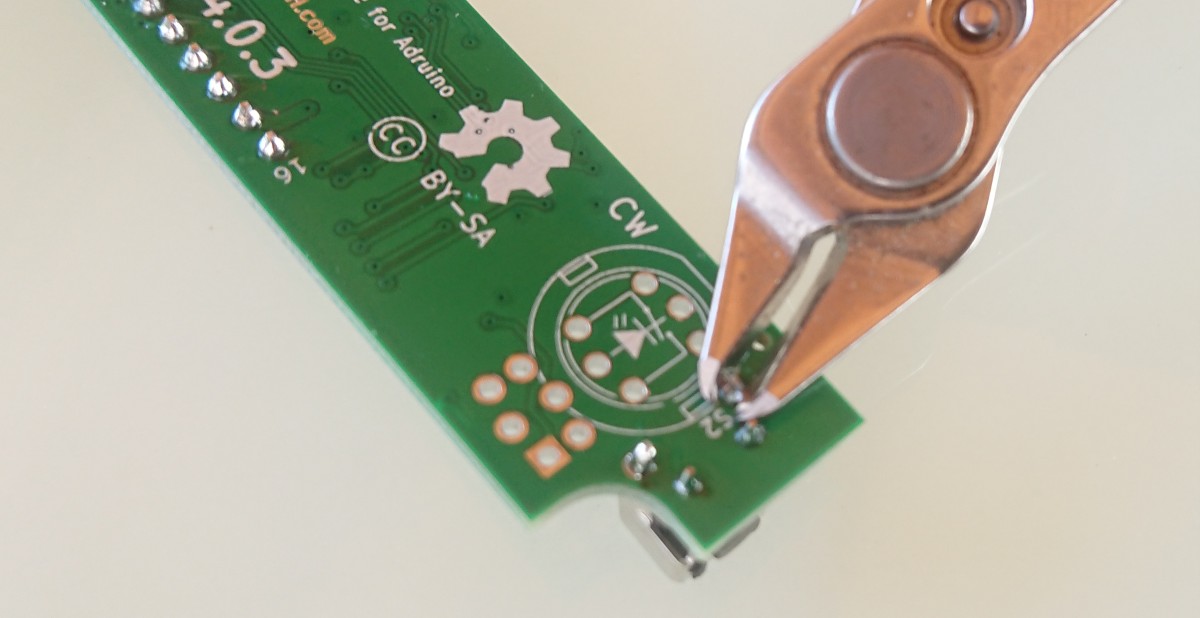

  6. Cut one of pin S4 switch nearest to S2 switch, see picture remoteqth.com_img_wiki-rot4-07.jpg

  7. Solder ten turn trimmer RV1, RV2, RV3 with orientation by silkscreen or picture remoteqth.com_img_wiki-rot4-08.jpg

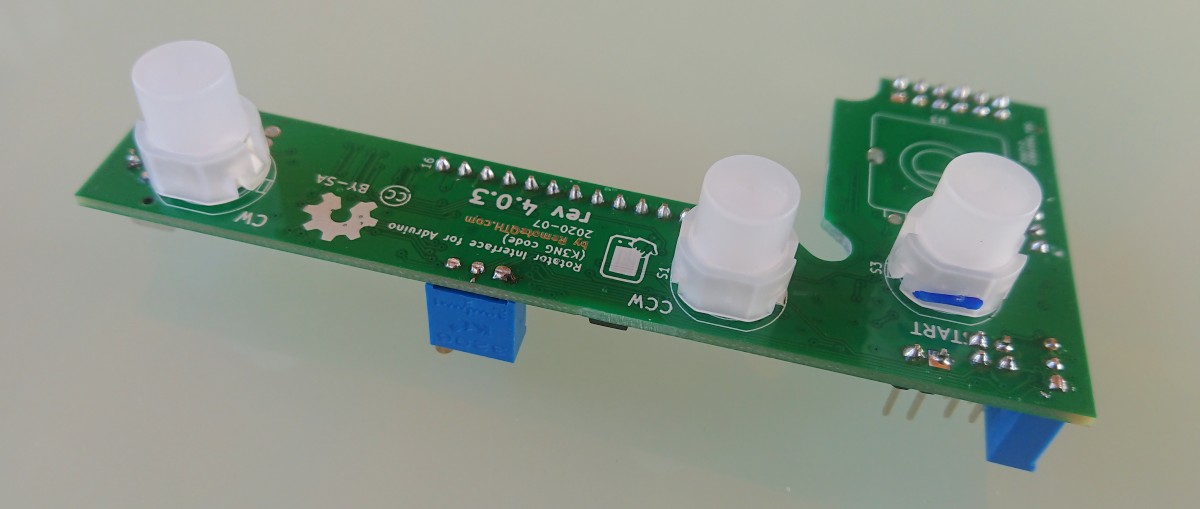

  8. Solder light switch S1, S2 and S3 marked blue - from 2021 year without mark - all is same
    Warning - solder this part carefully with regard to nearby SMD components so that they are not damagedremoteqth.com_img_wiki-rot4-09.jpg

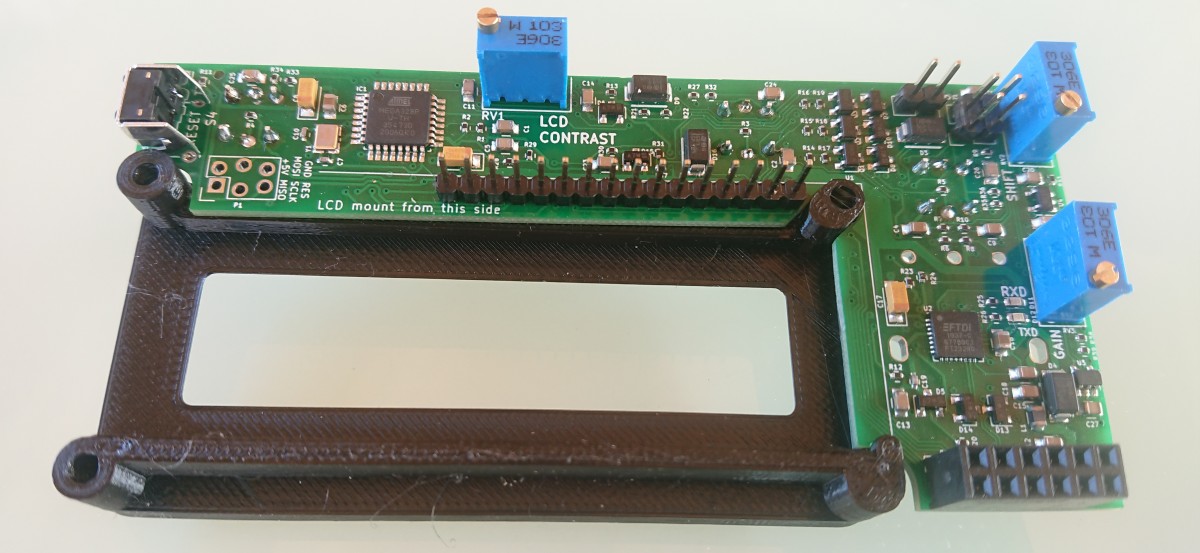

  9. Put 3D print LCD frame remoteqth.com_img_wiki-rot4-10.jpg

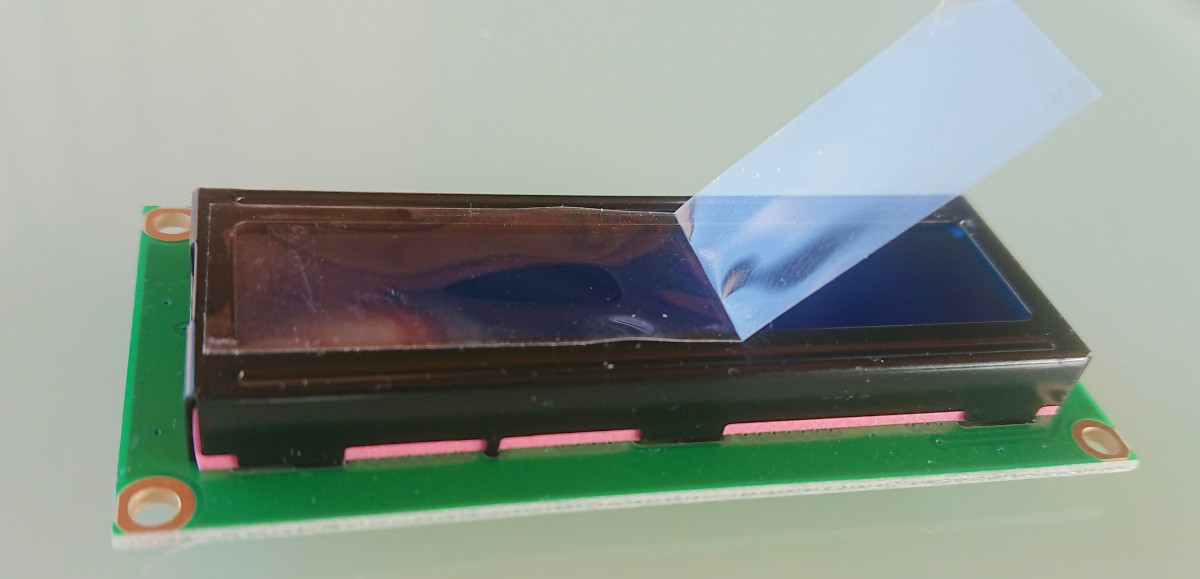

  10. Remove protective foil from LCD remoteqth.com_img_wiki-rot4-11.jpg

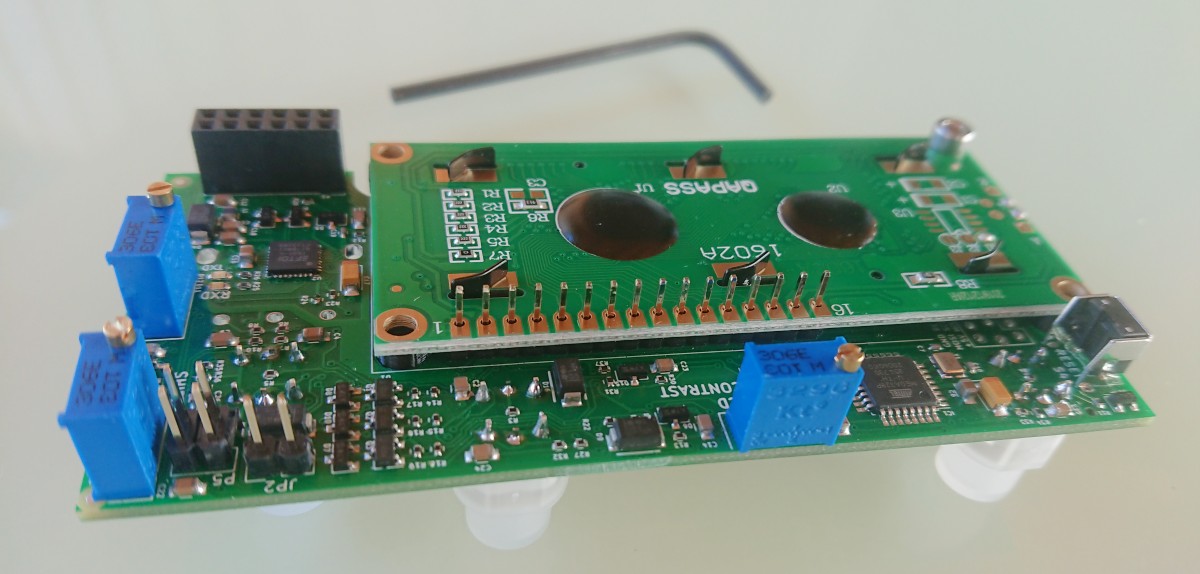

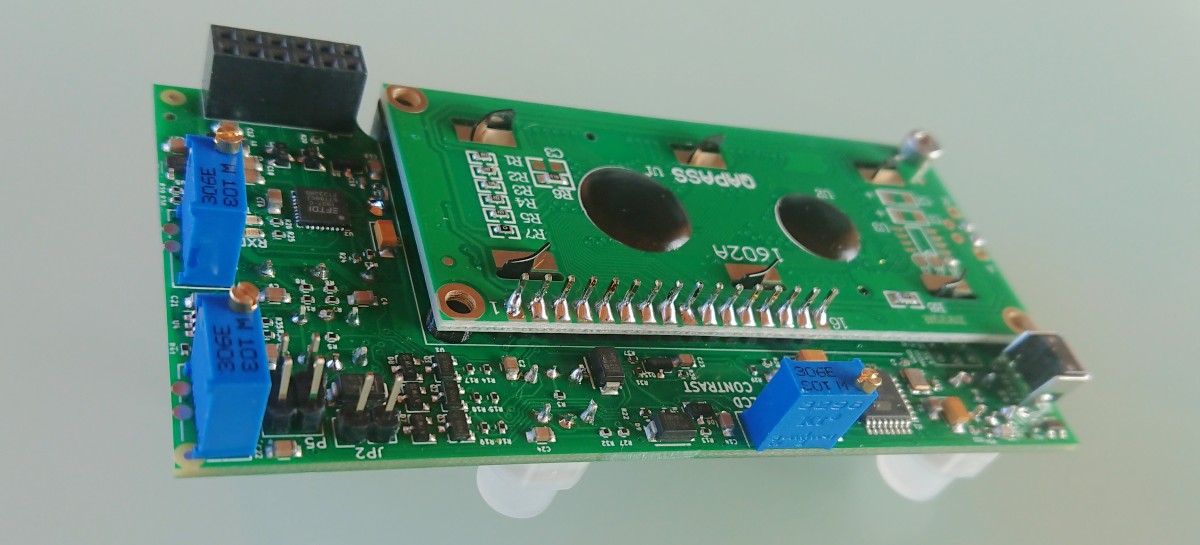

  11. Put on LCD to pinheader and screw the M3x10 into the corner of the plastic frame (without the use of a nut, the hole is conical) remoteqth.com_img_wiki-rot4-12.jpg

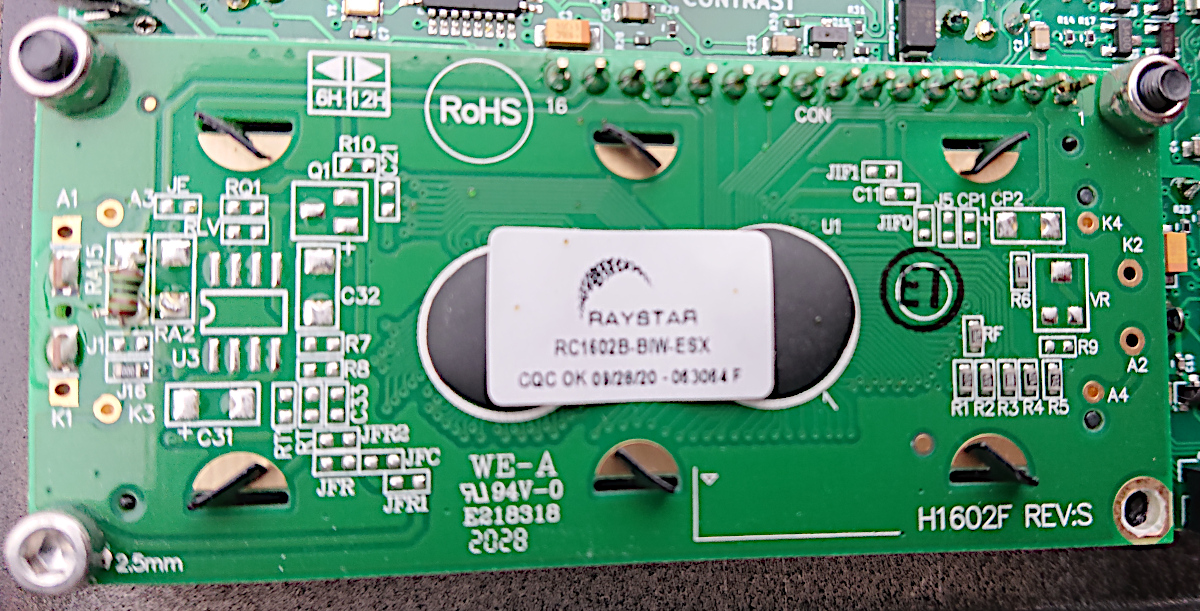

    NOTE: if your kit contains an LCD with 2.5 mm holes, use a 3 to 3.2 mm drill bit to enlarge them (4x) remoteqth.com_img_wiki-rot4-33.jpg

  12. During solder LCD press the frame and the LCD so that there is no space between them remoteqth.com_img_wiki-rot4-13.jpg

  13. Solder all 16 pins remoteqth.com_img_wiki-rot4-14.jpg

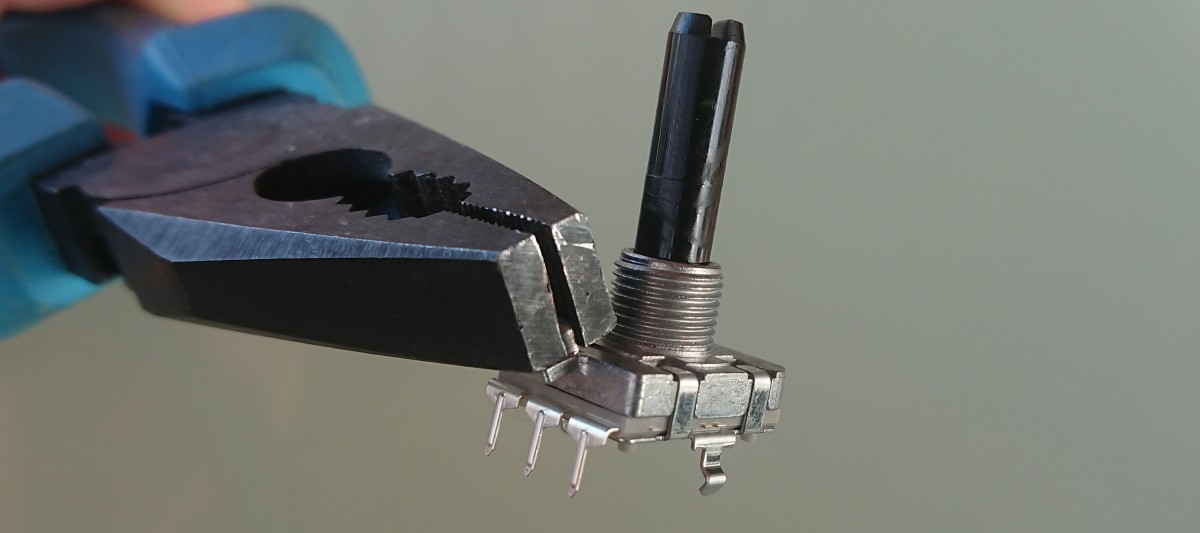

  14. Break and remove the peg from rotary encoder remoteqth.com_img_wiki-rot4-15.jpg

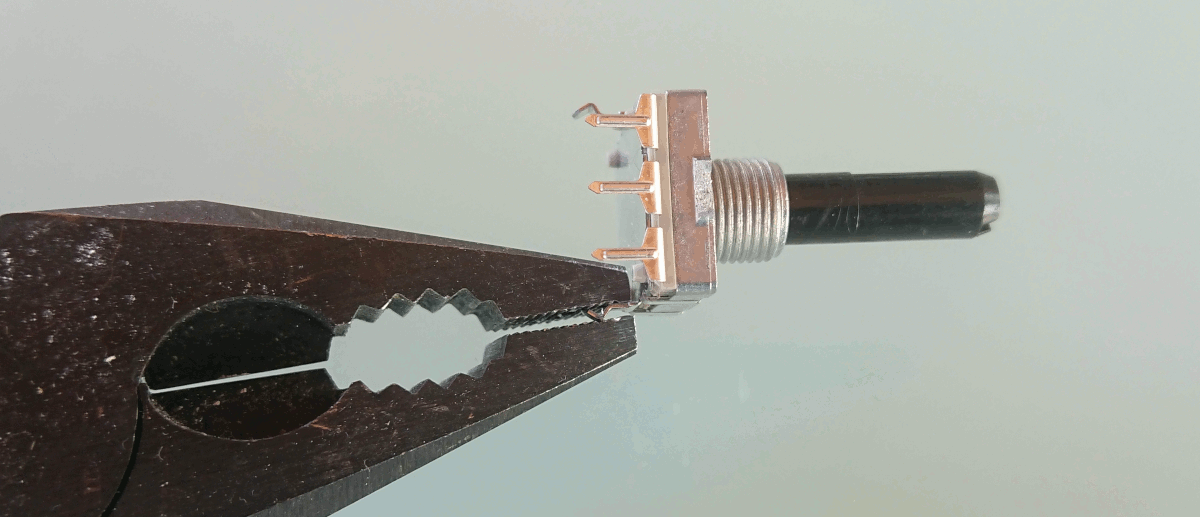

  15. Straighten the two side pins using pliers

  16. Solder U3 rotary encoder
    WARNING - solder this part carefully with regard to nearby SMD components so that they are not damaged

  17. Open aluminium box and insert two black M3x20 to front panel remoteqth.com_img_wiki-rot4-17.jpg

  18. Fit the front panel (by screwing) and lightly tighten the nuts remoteqth.com_img_wiki-rot4-18.jpg

  19. If use DC motor continue on white base PCB soldered D2 diode marked 1N4007. For AC is D2 not use! remoteqth.com_img_wiki-rot4-19.jpg

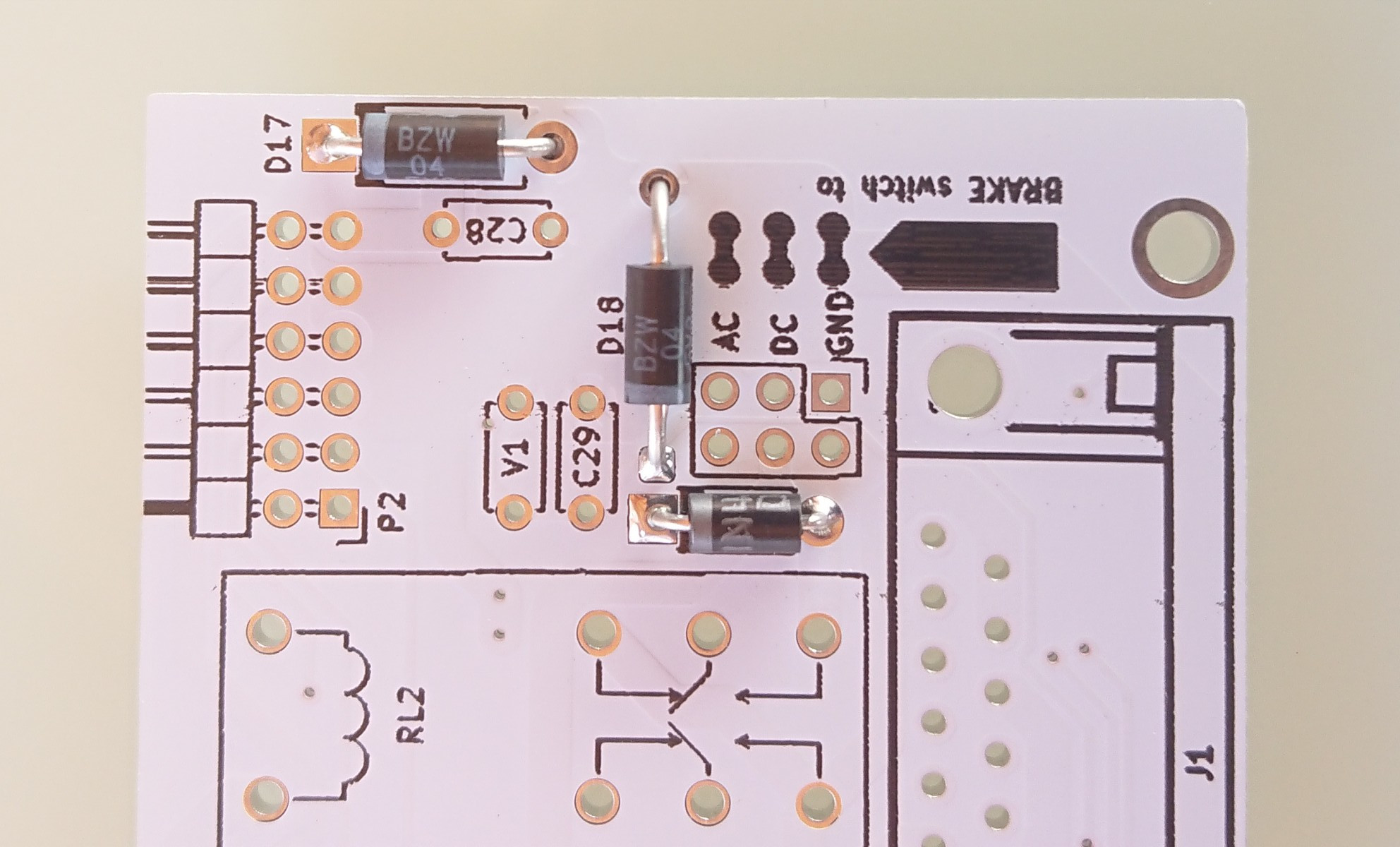

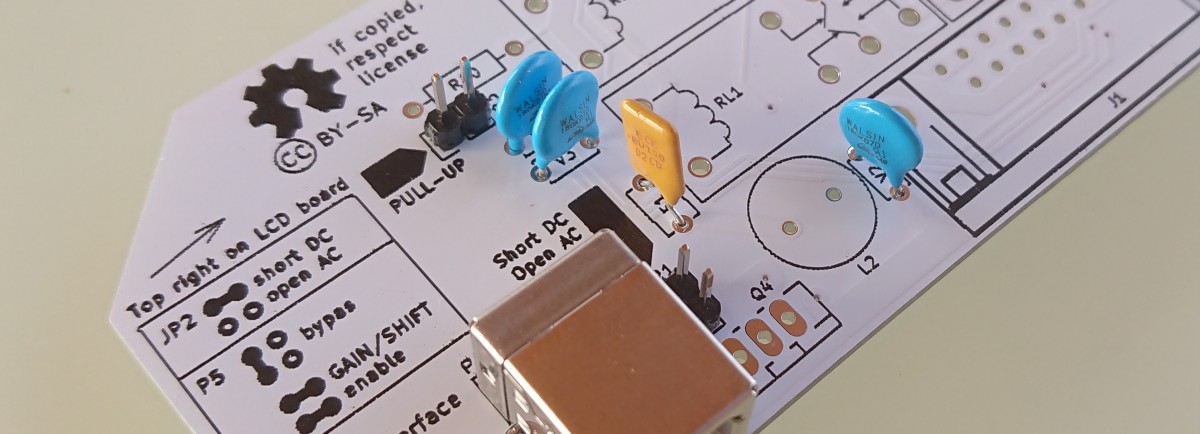

  20. Solder D17, D18 zener diode marked BZW04 remoteqth.com_img_wiki-rot4-20.jpg

  21. Solder R40 resistor (without picture)

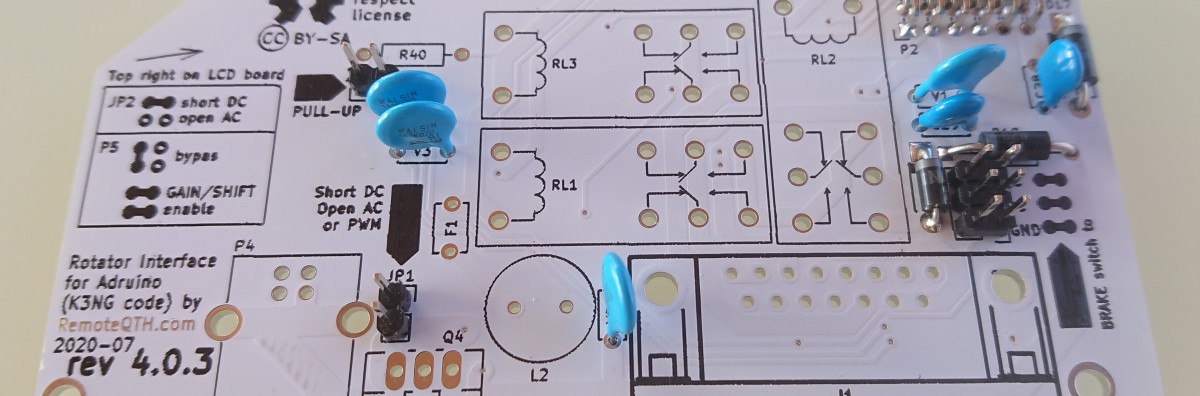

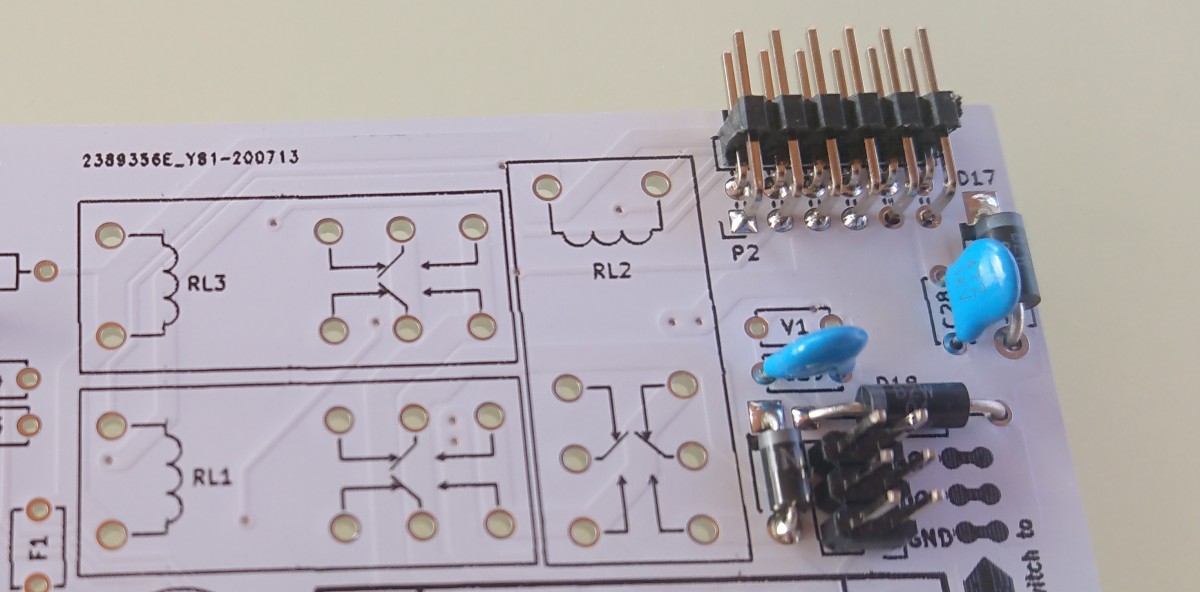

  22. Solder pinheader JP3, JP1, P6 and P2 (cut to 6×2) remoteqth.com_img_wiki-rot4-21.jpg

  23. Solder C28 and C29 capacitor marked 472 remoteqth.com_img_wiki-rot4-22.jpg

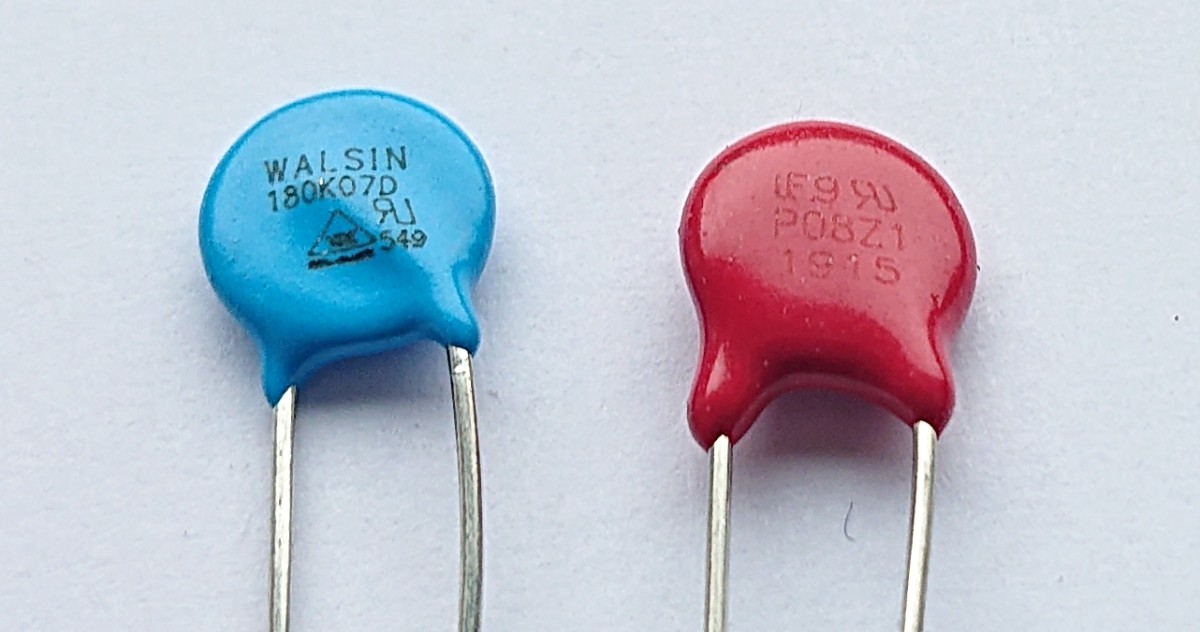

  24. Solder V1, V2, V3, V4 varistors marked 180K07D
    (From September 2021 change of type from blue to red)

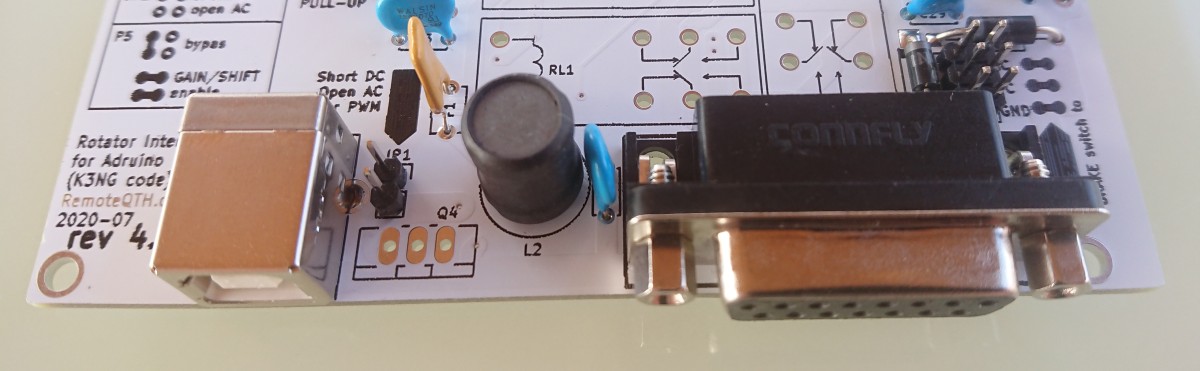

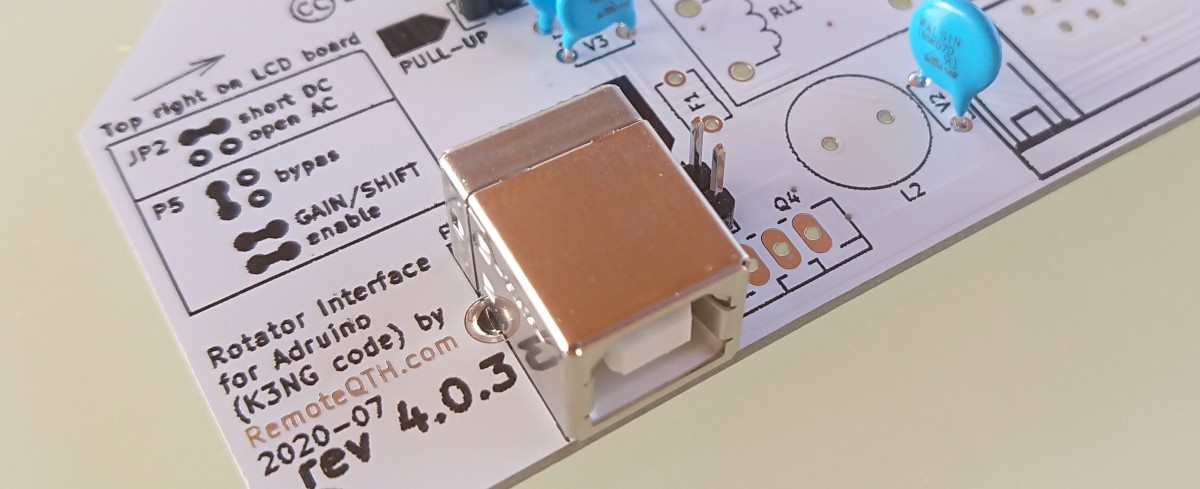

  25. Solder P4 USB-B connector remoteqth.com_img_wiki-rot4-24.jpg

  26. Solder polyfuse F1 remoteqth.com_img_wiki-rot4-25.jpg

  27. Solder J1 DB-15 female connector remoteqth.com_img_wiki-rot4-26.jpg

  28. Solder L2 inductor remoteqth.com_img_wiki-rot4-27.jpg

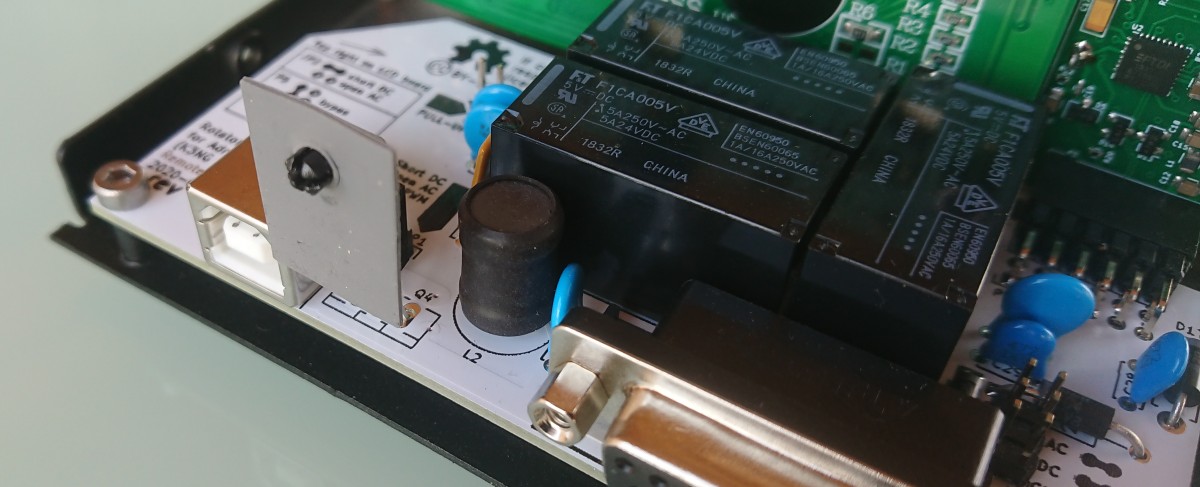

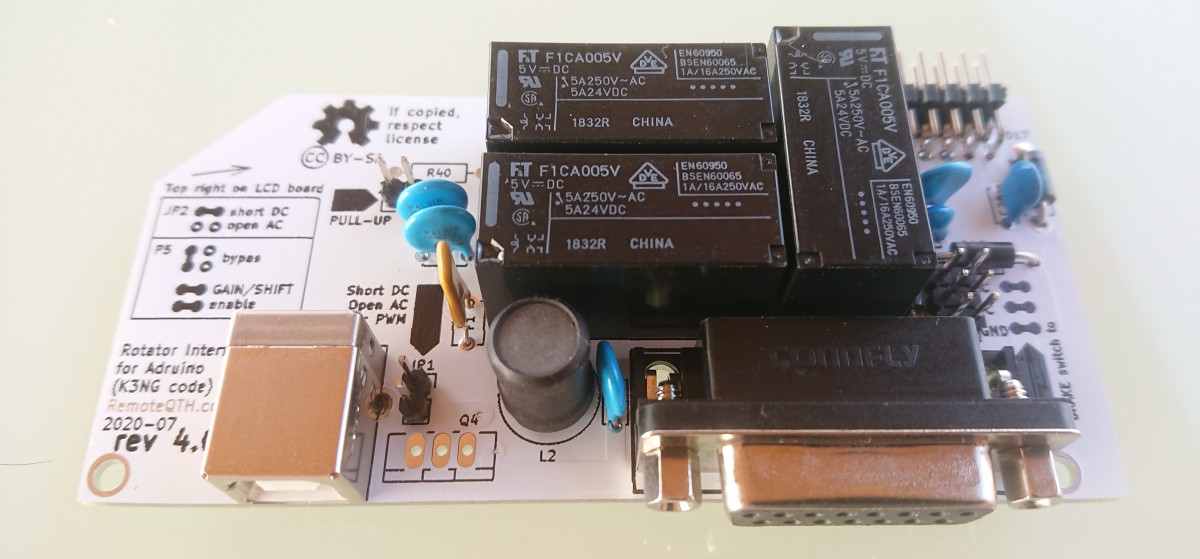

  29. Solder RL1, RL2, RL3 relay remoteqth.com_img_wiki-rot4-28.jpg

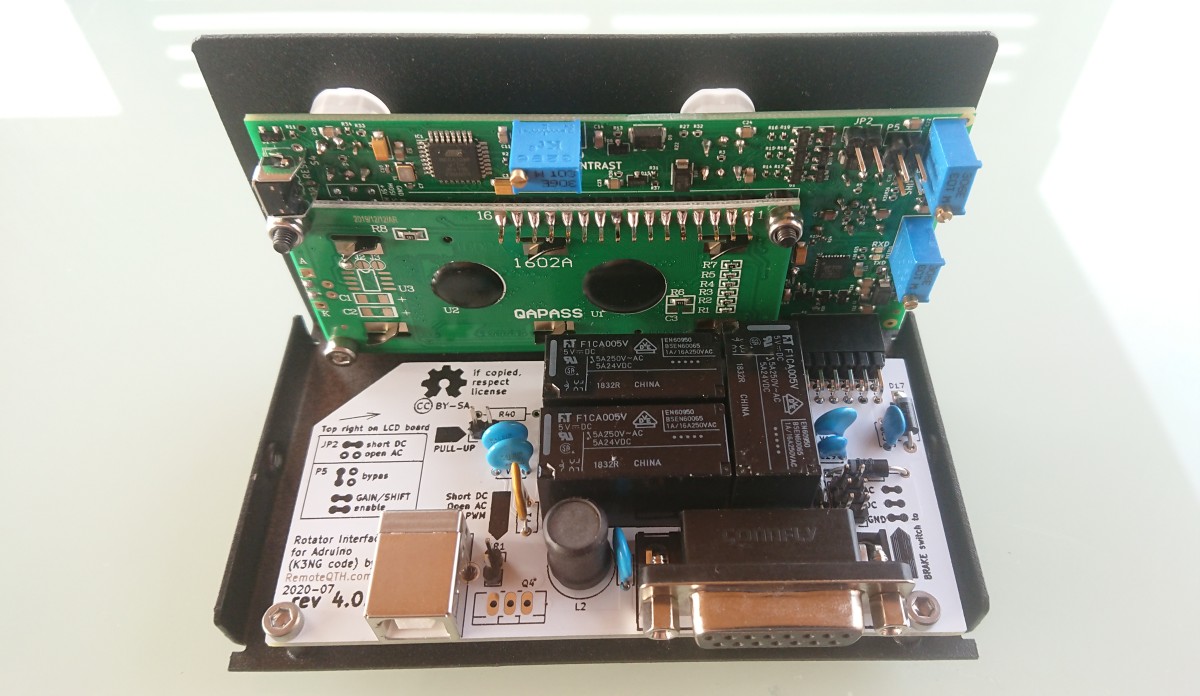

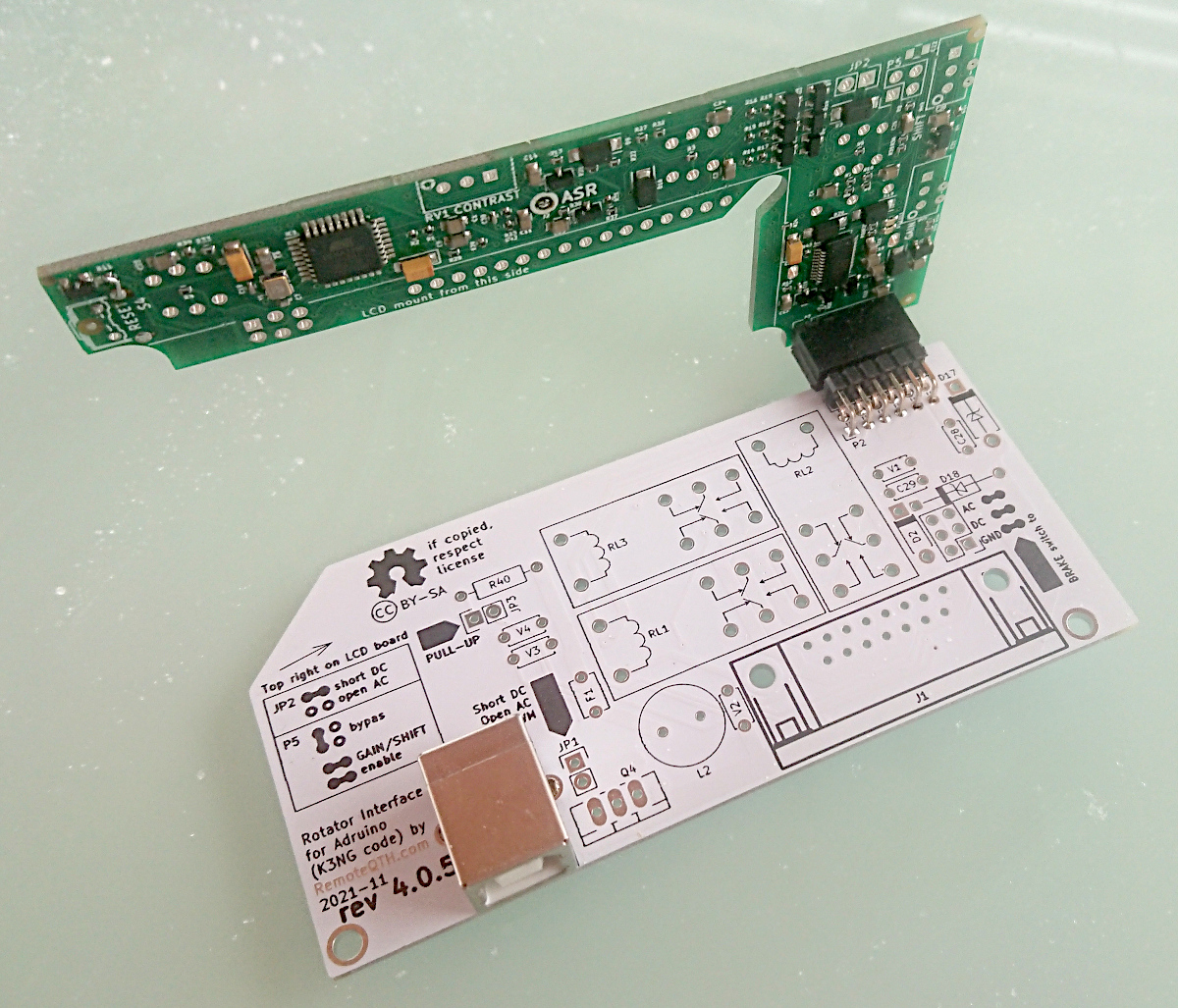

  30. Connect P2 put in P3 connector and screw two M3x4 to bottom aluminium box spacers remoteqth.com_img_wiki-rot4-29.jpg

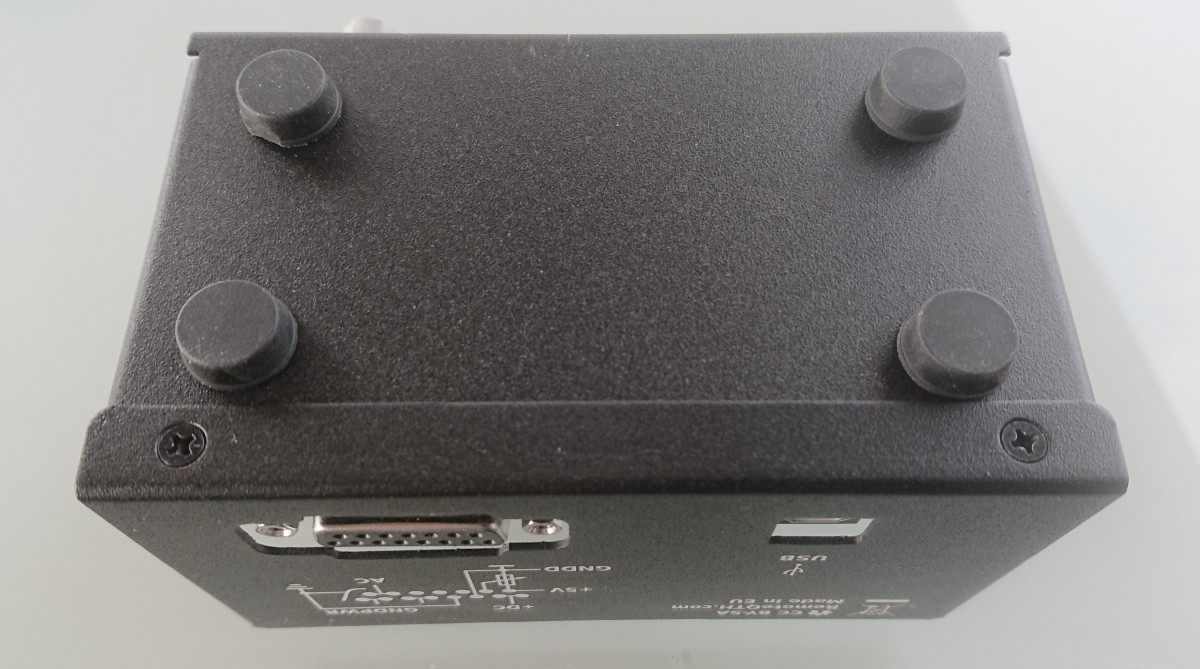

  31. Screw two black countersunk screws into the bottom rear panel and stick four rubber feet remoteqth.com_img_wiki-rot4-30.jpg

  32. Put the knob on rotary encoder axis remoteqth.com_img_wiki-rot4-31.jpg

  33. Screw two black countersunk screws into the top cover of alluminium box.
  34. Next step preset jumpers below and upload test firmware.


Jumpers and potentiometers preset

After setting jumpers dependancy to your hardware continue upload test firmware.

  • RV1 - set LCD contrast after upload firmware
  • JP2
    • AC motor OPEN
    • DC motor SHORT
  • JP3 - enable pull up
    • Three wire azimuth potentiometer OPEN
    • Two wire grounded azimuth potentiometer SHORT (+ adjust with P5)
  • JP1 - enable PWM for DC motor (optional)
    • default SHORT
    • enable OPEN - must be install Q4

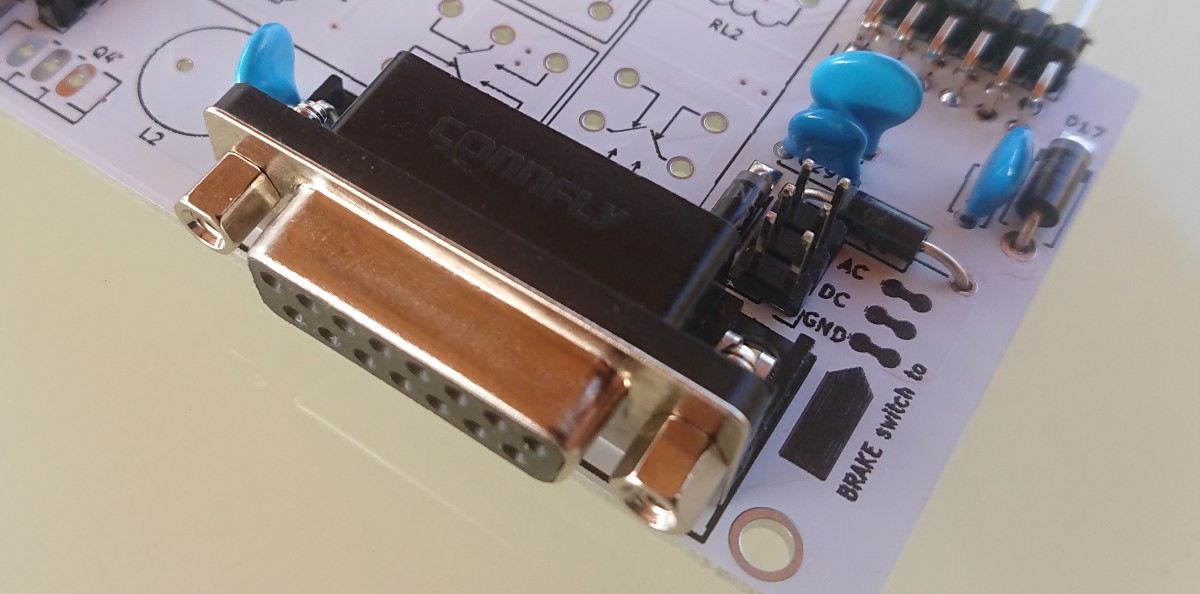

  • P6 - select output for brake, between
    • AC
    • DC
    • GND
    • default disable (bypass)
    • enable
  • RV2 - tune SHIFT
  • RV3 - tune GAIN

Install test firmware

This firmware testing harware after assembly and helped you with azimuth potentiometer.

  1. Install Arduino IDE
    1. LiquidCrystal
    2. LcdBarGraph
  2. Download firmware from GitGub
  3. Select menu Tools/Board:“Arduino Nano”
  4. Select menu Tools/Processor:“ATmega328P”
  5. Connect USB cable between Rotator and PC
  6. Select menu Tools/Port/YOUR-CONNECTED-PORT
  7. Upload firmware
  8. After firmware upload PRESET LCD CONTRAST with resistance trimmer RV1

Test functionality - we recommend testing everything

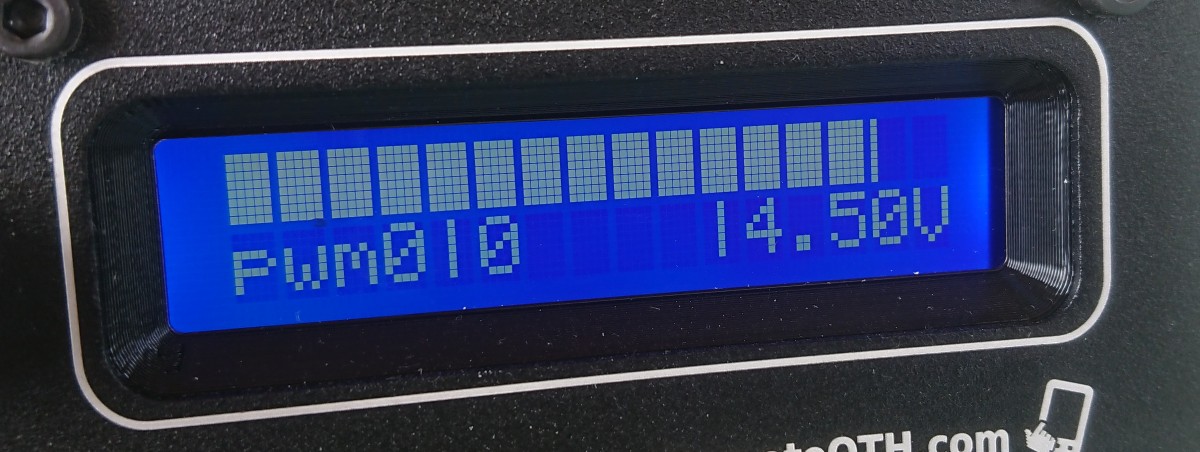

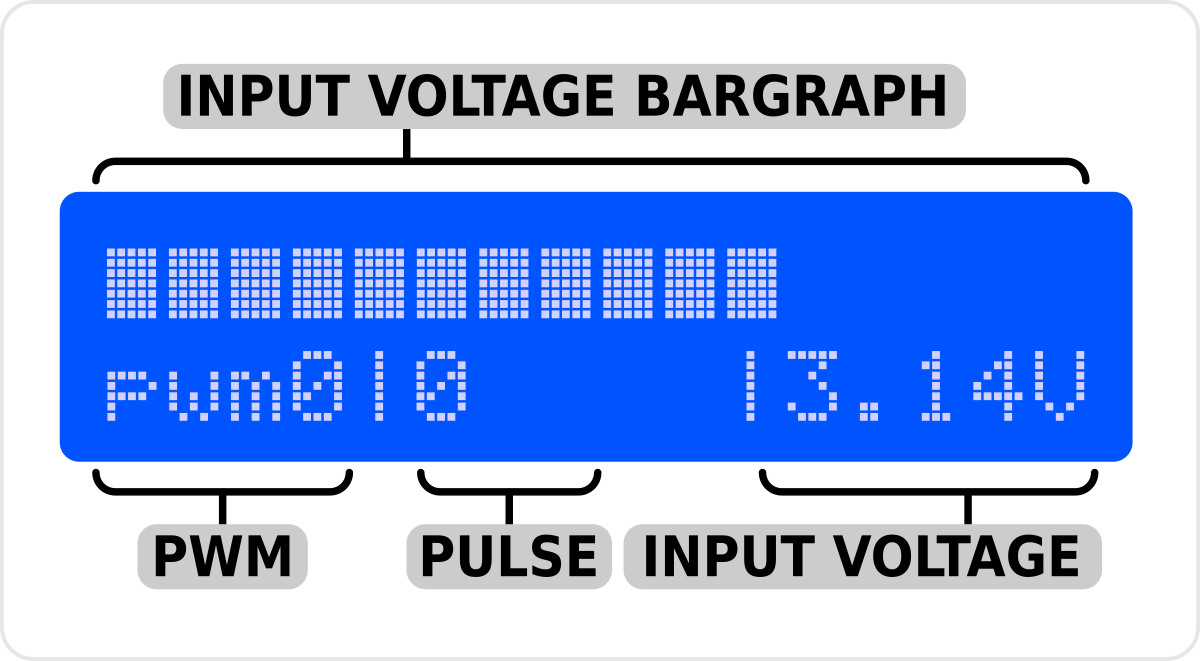

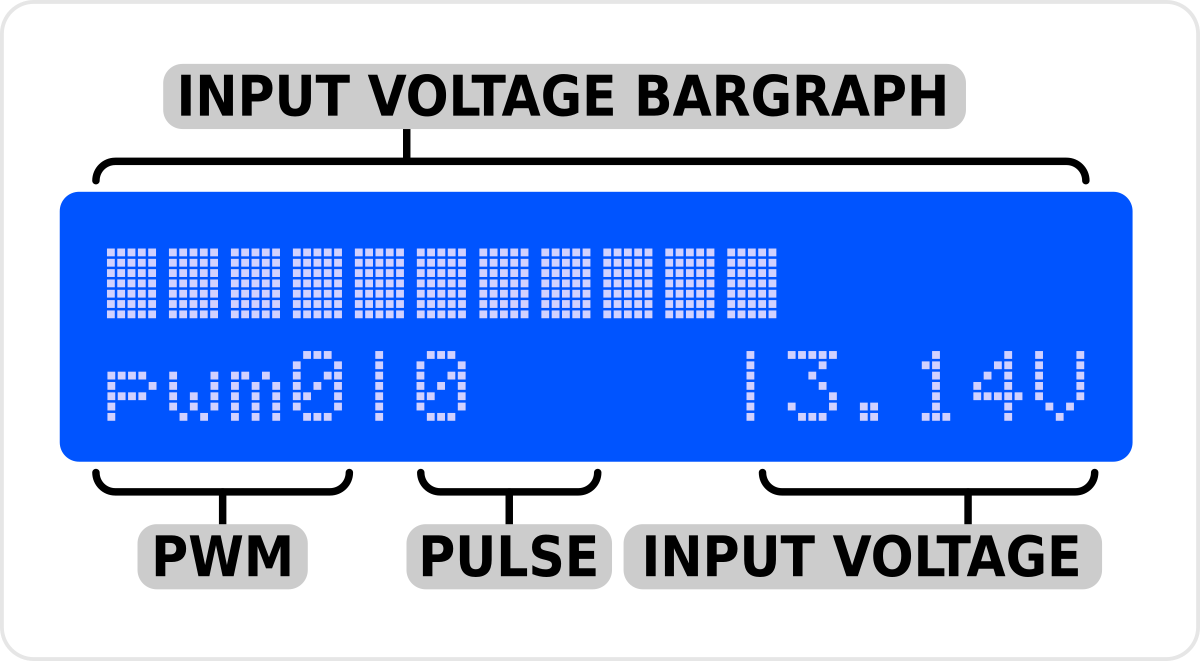

  • Measure azimuth voltage input (bargraph and value) - connect azimuth potentiometer and test if analog voltage input work and how is his range.
  • Counter CW and CCW pulse input (must grounded to digital GND) - this tested two digital input path.

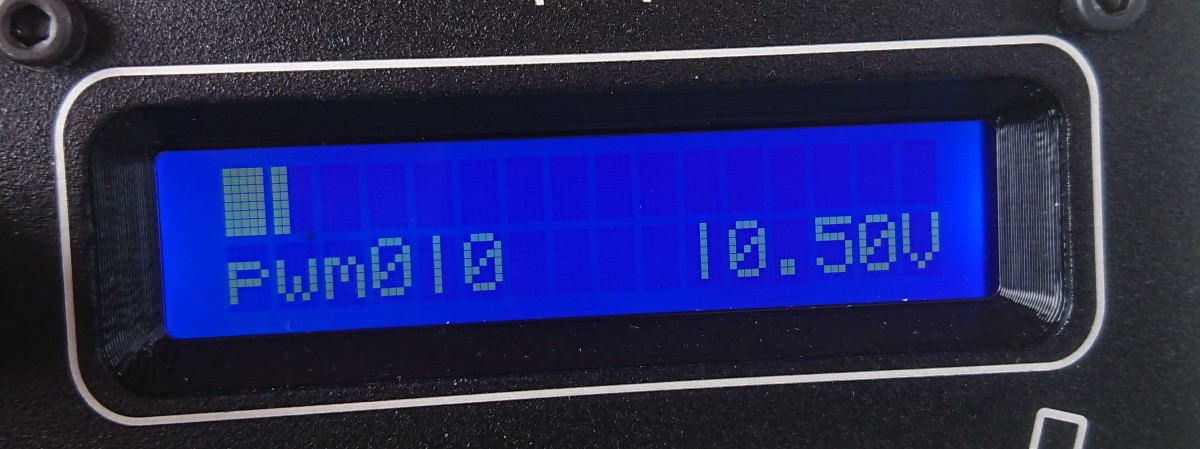

  • Encoder functionality set pwm outputs on LCD and mosfet gate - turn encoder increase/decrease PWM value. If connect PWM mosfet, also test output PWM power from 0 to 100%. With osciloscope also easurable on gate of mosfet.
  • Light button feedback and switch relay - every button must light after press and switch on one ofrom three relays (tested input from button and output to light and enable relay).

This firmware use also for tune SHIFT and GAIN op-amp functionality.

Digital power supply

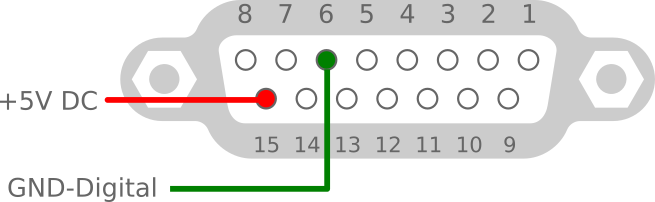

For independent powered without USB. Also better (recommended) way, because USB power produced lower voltage over isolating diode D4.

  • Voltage +5V
  • Power consumption < 400mA

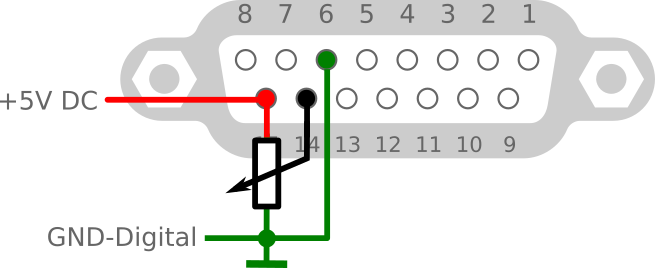

Connect Azimuth potentiometer

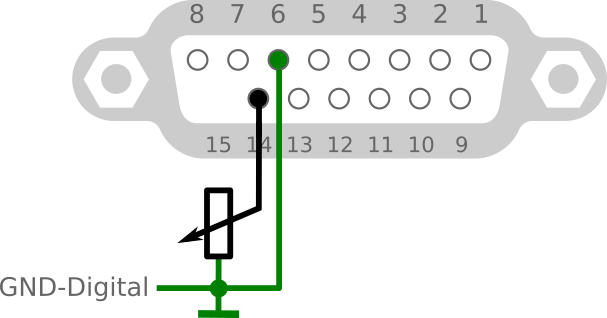

3 wire one turn

  1. JP3 jumper switch OPEN.
  2. P5 jumper switch to bypass.
  3. Optimal value is about 600 ohm. Corresponds to 8mA current.
  4. Avoid values lower than 100 ohms.
  5. If test firmware indicate range 0-5V, continue by connecting the motor.

2 wire, grounded

  1. JP3 jumper switch SHORT.
  2. P5 jumper switch to enable.
  3. Optimal value is near internal pull-up R40, which is the value 510 ohm.
  4. Next step Setting gain/shift op-amp - for 2 wire azimuth potentiometer set shift to 0 and increase only GAIN (RV3).
  5. If preset op-amp indicate in test firmware range 0,5-4,5V, continue by connecting the motor.

3 wire, one from ten turn

  1. JP3 jumper switch OPEN.
  2. P5 jumper switch to enable.
  3. Worked with one turn (or any part) from 10k ten turn potentiometer.
  4. If preset op-amp indicate in test firmware range 0,5-4,5V, continue by connecting the motor.

Connect Azimuth cw/ccw pulse

  1. JP3 jumper switch OPEN.
  2. P5 jumper switch to enable.
  3. Input must grounded to digital GND.
  4. Next step test with test firmware.
  5. Note: K3NG firmware use only pin12.

Setting gain/shift op-amp

P5 DISABLE shift/gain op-amp (bypass)

P5 ENABLE shift/gain op-amp
Warning - this circuit is sensitive to the stability of the 5V power supply. If enabled, ensure a sufficiently sized 5V power supply with short leads.

With enable, activate circuit two OP-amp for

  • SHIFT RV2 level down from up to 3,5V
  • GAIN RV3 in range 1-21

For use continue with this step

  1. First disconnect USB interface from power and turn RV2 and RV3 to start (full counterclockwise if control screw is down)

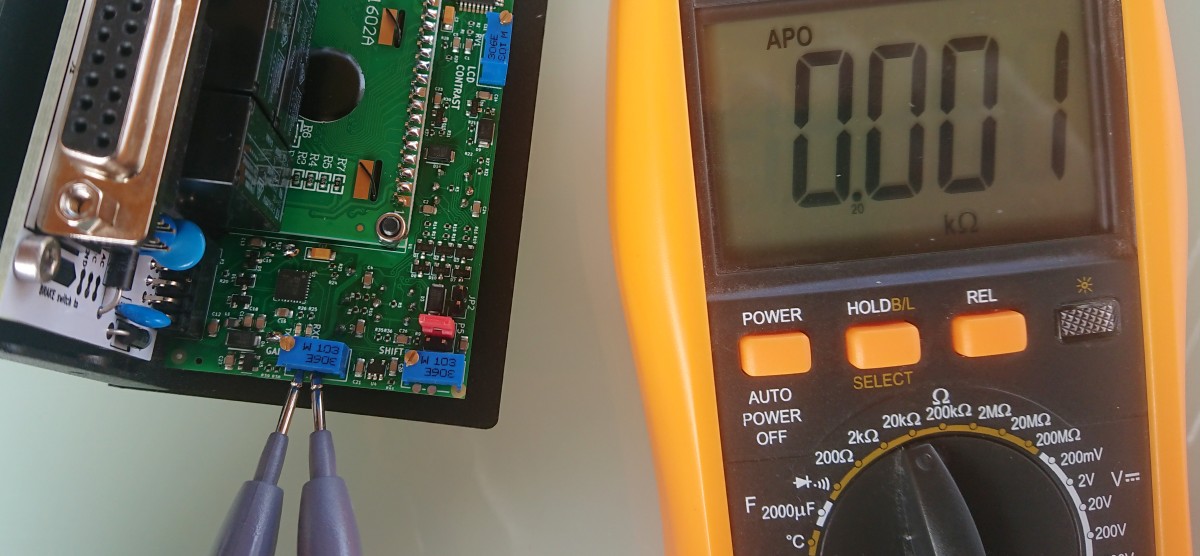

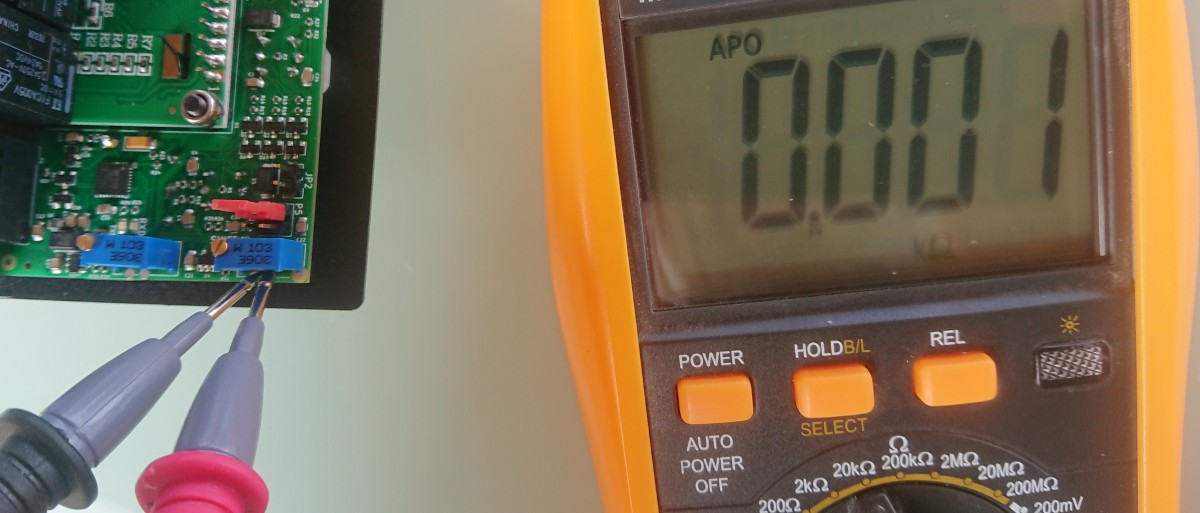

  2. Test if RV2 and RV3 on start with ohmeter on test points
    1. between W1 and W2 for RV2 turn to 0 Ω
    2. between W3 and W4 for RV3 turn to 0 Ω
  3. Connect to power and upload test firmware (if not)
  4. Turn the azimuth potentiometer to the stop, which produces lower voltage.
  5. Use RV2 for shift voltage down, not 0V - optimally 0,5V.
    - for 2 wire azimuth potentiometer shift not set, will remain on 0.
  6. Turn the azimuth potentiometer to the oposite stop, which produces higher voltage.
  7. Use RV3 for increase voltage up to 4,5V (not full 5V).
  8. Jump to step 4. and reply for precise tune output between 0,5-4,5V on full azimuth potentiometer range.
  9. Now ready for upload K3NG rotator fimware.

Connect AC motor

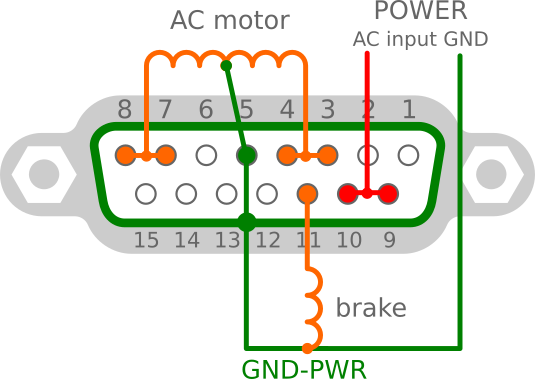

For connecting AC motor power, use only power GND on pin 5 and shield. Do not use independent digital GND.
For AC motor do not use D2 diode, if install, remove it.
Notice: do not forget to connect the capacitor as well, according to the original connection of your motor.

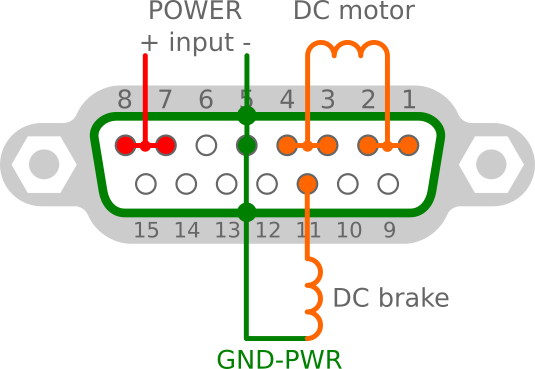

Connect DC motor

For connecting AC motor power, use only power GND on pin 5 and shield. Do not use independent digital GND.

Enable PWM

(Optional hardware).
WARNING - use only with DC motor, do not solder if use AC motor.

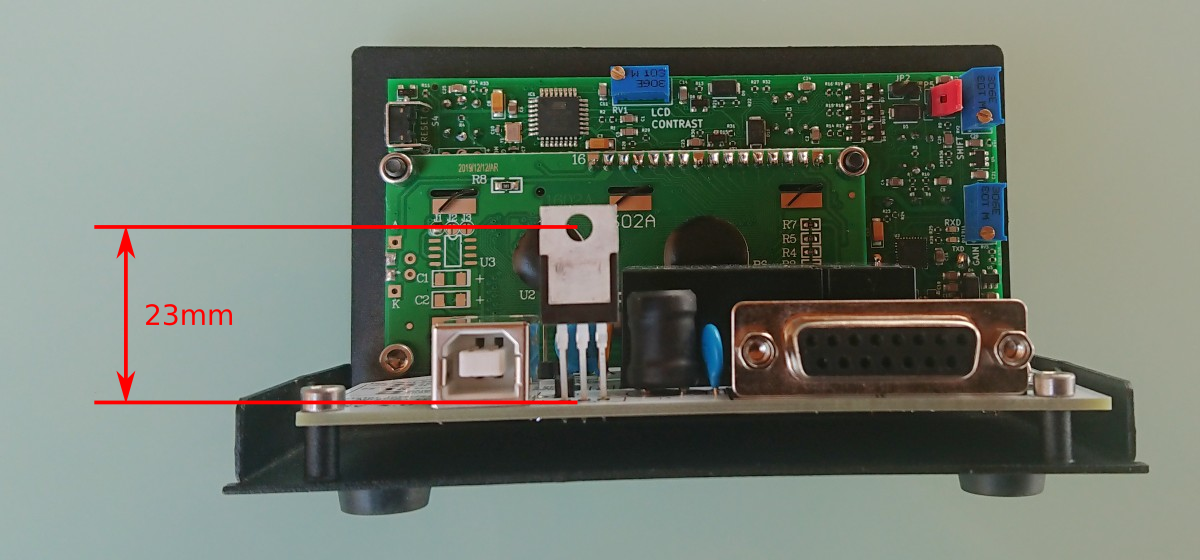

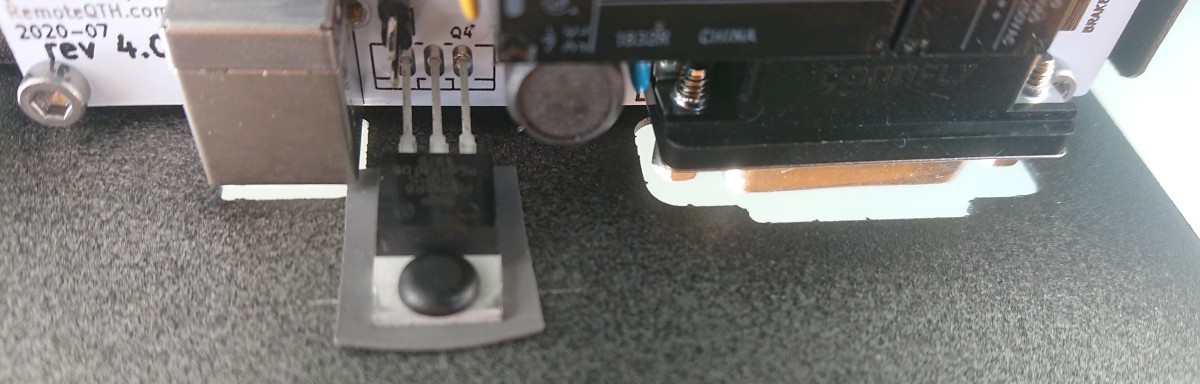

Solder Q4 mosfet with distance - see picture

Drill a 3.5mm hole in the rear panel according to the size in the picture

Insert duty rollers and silicone insulation from the outside into the mosfet

Put rear panel and mount to back with two screws.

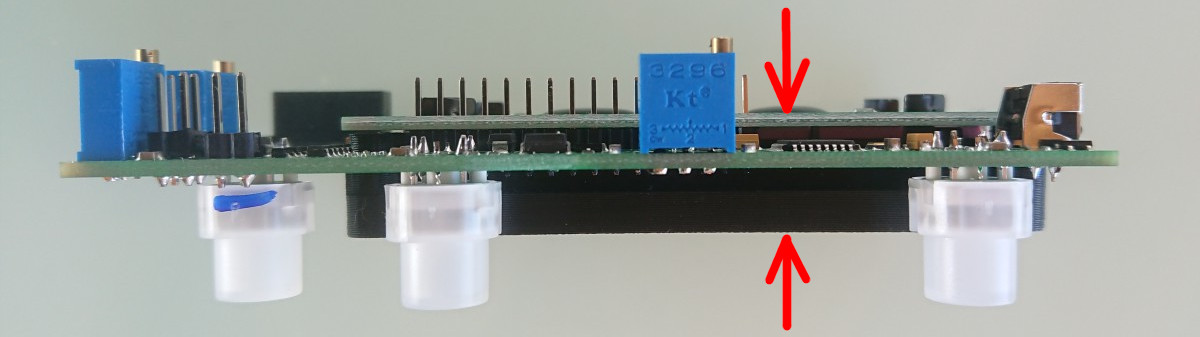

Insert the inner part of the plastic pin from the side of the mosfet. More power may be needed.


This firmware originaly produced Anthony K3NG, TNX! and source available on GiHub.
For more information use the author's extensive wiki.

  1. First prepare hardware with Test firmware, after finish continue.
  2. Install Arduino IDE
  3. Download firmware - preconfigured version K3NG firmware 2020_08_26

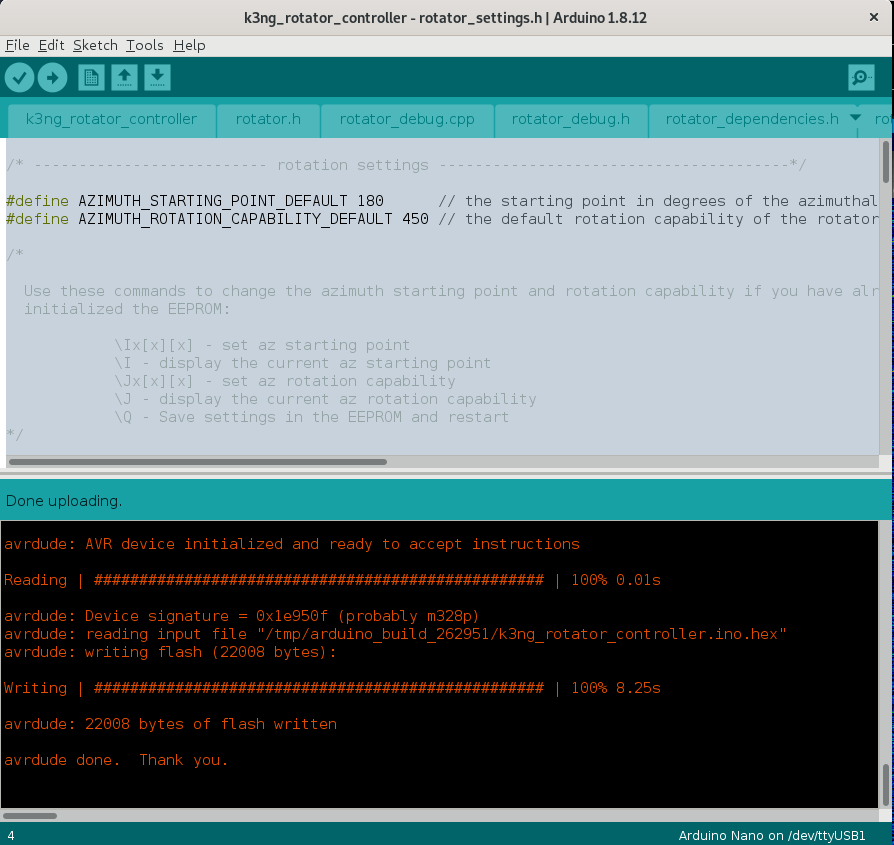

  4. Open file rottator_settings.h and edit two line which is used to set the azimuth range of the rotator
  5. Select menu Tools/Board:“Arduino Nano”
  6. Select menu Tools/Processor:“ATmega328P”
  7. Connect USB cable between Rotator and PC
  8. Select menu Tools/Port/YOUR-CONNECTED-PORT
  9. Upload firmware

Calibrate K3NG firmware with CLI

This is quick view, for more information use the author's extensive wiki Heading Calibration Command Reference.

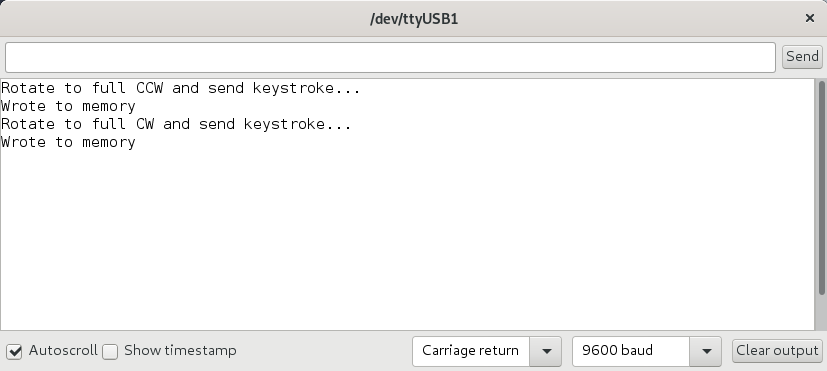

  1. Open serial monitor in Arduino CLI (Ctrl+Shift+M)
  2. Set Carriage return and 9600 baud
  3. Previous start point and range also available preset via CLI
    \Ix[x][x] - set az starting point
    \I - display the current az starting point
    \Jx[x][x] - set az rotation capability
    \J - display the current az rotation capability
    \Q - Save settings in the EEPROM and restart
  4. For callibration voltage to preset azimuth range in firmware use
    O  - Azimuth offset calibration
    F  - Azimuth full scale calibration
  5. for erase EEPROM command
    \E  - initialize EEPROM

Setup pulse input

Control software

Some tips

  1. Compiled binary files from release page can windows users upload with utility XLoader
  2. Azimuth shorts you can replace with prefixes which are in the same direction from your QTH. For example see prefixes from OK.
  3. And Azimuth you can replace with name your antenna or tower, e.g. 20m YAGI.
  4. If do not show degree character (°), change in file rotator_settings.h settings to

    If the LCD displays instead of the character degree (°) lower case “alpha” (α), find in source code all string 'char(223)' and replace to 'char(178)'.
