Modular antenna switch with ethernet control

(Development version)

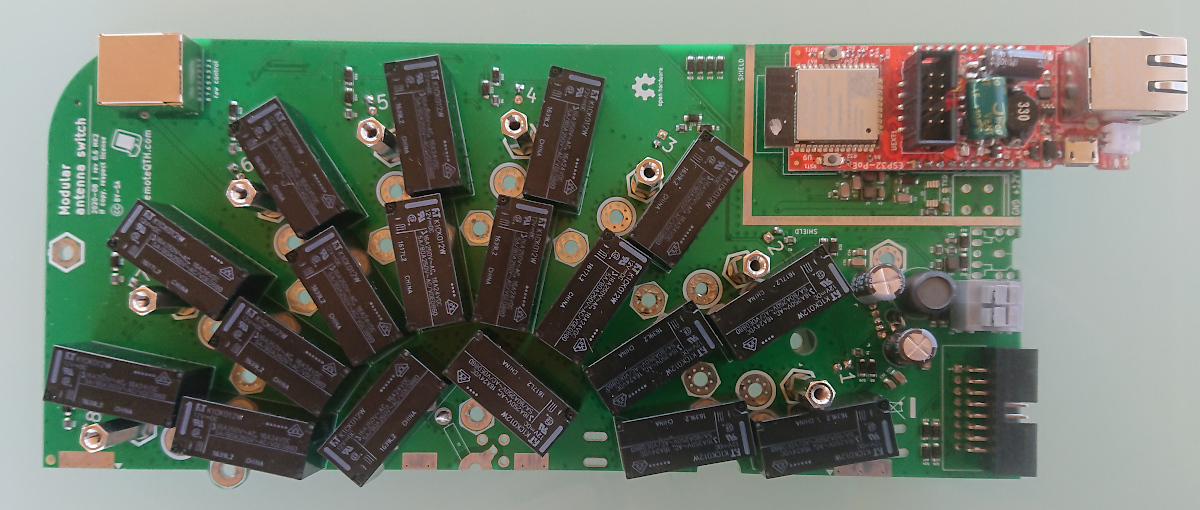

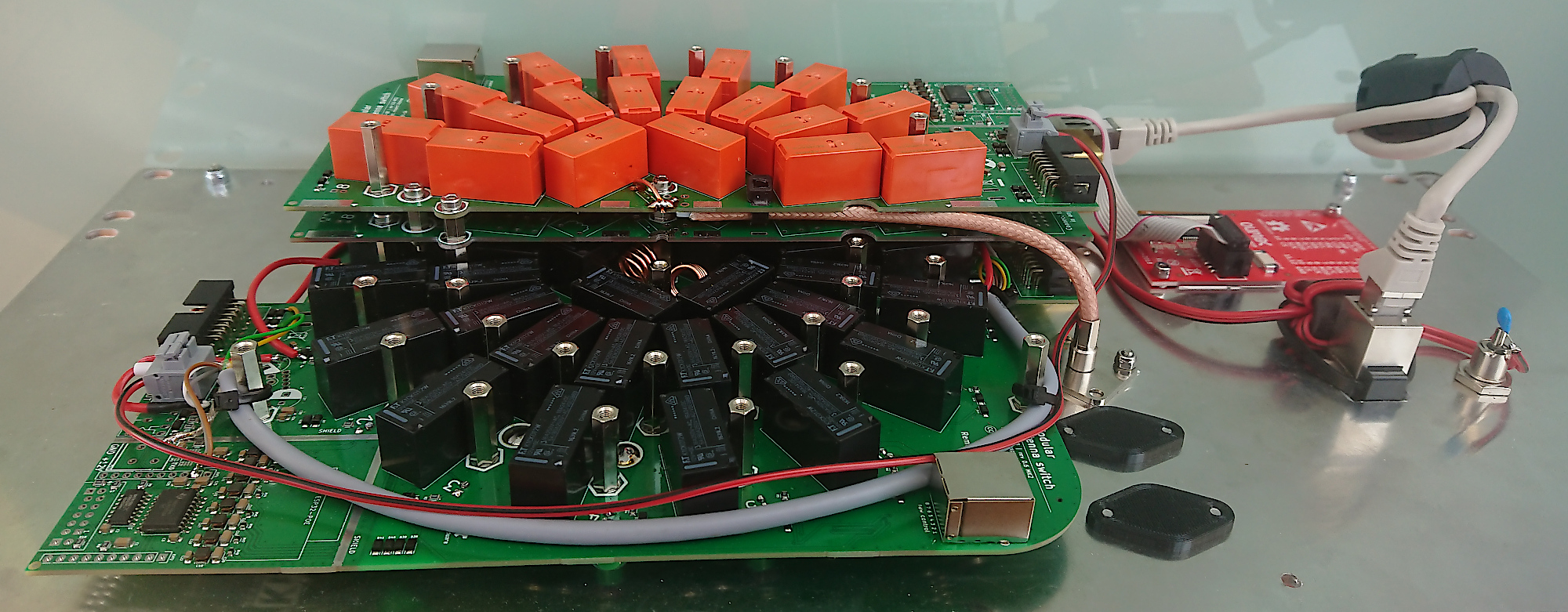

remoteqth.com_img_wiki-modular-eth-ant-sw-01.jpg remoteqth.com_img_wiki-modular-eth-ant-sw-02.jpg

  • Modular design with 8 output module
  • Minimal configuration 8×1, expanded up to 16×4
  • Ethernet connection over ESP32
  • Optional CI-V control input
  • Step down power supply with 13,8V input
  • RAW control connector
  • LED indicate active output
  • Optional LCD display
  • 5U rack mount case

Source
