ci-v_mqtt_stepper


Icom CI-V stepper allows tuning with stepper motor Nema 17 some devices dependancy to Icom frequency

Quick start guide

  1. Connect hardware
    1. Stepper
    2. Endstop switch
    3. 24V DC power Supply
    4. TX inhibit output
    5. CI-V
  2. Configure over USB CLI

Hardware

Known issue

  1. Q1 - bad footprint pinout

Connect

Endstop

Switch for calibrate start point motor stepper (zero step, zero °). After start up stepper spins reverse ↺ and wait for endstop signal who stops him and resets counters.

Stepper

Connect two phase NEMA 17 stepper motor. Another type not supported. One of the phases is known by the ohmmeter. Another phase is isolated.

  • If stepper rotate reverse, you can change polarity one phase or activare reverse from CLI.

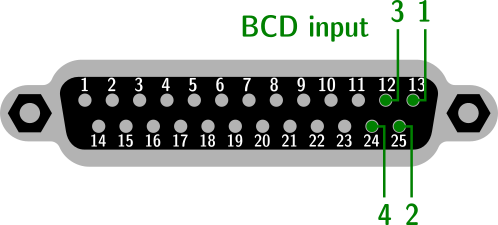

BCD input

Activate by grounded +5V pull-up.

CAT

Connected to Icom or MicroHam CI-V outputs.

TX Inhibit output

Open collector without pull-up.

Power supply

24V with 1A power rating. Lowest voltage accepted, but stepper lower torque.

USB Command Line Interface (CLI)

How to connect

  • Connect USB micro cable between CLI stepper and your PC
  • after run it set
    • com port dependency to your system
    • baudrate to 115200
    • Connection type to Serial
    • In Terminal category turn off options Implicit CR and Implicit LF by picture
    • press Open

CLI commands

After open PuTTY press character [?] who show actual setting and available command

Secure remote manage

Configuration available via serial CLI (command line interface). This interface can be safely accessed to the Internet and encrypted connections to manage all features

What you need

  • any version Raspberry PI
  • microSD card with Raspbian Lite
  • micro USB cable
  • 5V power adapter with micro usb cable
  • ethernet connection
  • for first start HDMI monitor and USB keyboard

How to start

  • after first boot login to serial console with default login pi and password raspberry
  • run command and enable SSH
    sudo raspi-config
  • run command and write down the shown IP address
    ip a
  • you can disconnect HDMI monitor and USB keyboard
  • connect to Raspberry PI from any other PC
  • update system with run command
    sudo apt-get update && sudo apt-get upgrade
  • install screen fith command
    sudo apt-get install screen
  • run screen
    screen /dev/ttyUSB0 115200
  • now after pres ? key show status information and you can configure via CLI \\
  • close screen with CTRL+A K and confirm y
  • disconnect from Raspberry PI use command
    exit

Firmware

For upload firmware you have two possibilities # Download 'source' from [GitHub|https://github.com/ok1hra/CI-V_stepper] and compile in [Arduino IDE|https://www.arduino.cc/en/Main/Software] ## Install [EEPROM library|https://www.arduino.cc/en/Guide/Libraries] # Download 'compiled binary' from [release page|https://github.com/ok1hra/CI-V_stepper/releases] and upload with some tool ## for example [avrdude|http://www.ladyada.net/learn/avr/avrdude.html] or [Xloader|http://xloader.russemotto.com/] for windows

!! Firmware source contains some settings which does not available from CLI * You can enter 'frequency and uStep directly in to firmware' without CLI wizard. How to Disable preset coment line Write frequency and uSteps i to arrayunsigned_long_storagefreqtostep_112_2_7000000_0_7010000_500_7020000_1000_7030000_1500_7040000_2000 Upload firmware Select BCD input to bank-0 (must be, because only bank-0 saved also frequency, higest bank saved uStep only) Save frequency/uStep table from RAM to EEPROM with command [s] in CLI Replay edit table, upload and save for any higher bank After fill EEPROM to your liking, enable command in source file After upload frequency/uStep table will be set by preset selected bank. For more info use command [l] or [e] in CLI. * Time (second number in ms) after which reduce stepper current and save last position to eeprom, if disable endstoplong_currentruntimeout_2_0_1000 * Enable serial debug if uncoment this line * CLI baudrate, default is 115200const_int_baudrate0_115200

!MQTT variant * need install wiznet ethernet module * use another firmware [GitHub|https://github.com/ok1hra/MQTT-stepper] * for setup and control see source code header
