7 ANT RX modular switch system

Modular 7ANT RX switch with controller, up to 3 RX and REMOTE control

This is modular 7 RX antenna switch. It allows you to use up to 7 independent RX antennas (beverages, Bi-dir beverages, RX loops etc.) to one, two or three RX (TRX). You can use just one board for single RX output or up to three boards for three independant RX. ALL outputs are wide-band, there is NO BPF in the way between ANT port and output. Also ANT ports could be open or connected to the 50 or 75 ohms dummy loads. Dummy loads could be isolated by simply LC BPF isolation. This is there for M/M setup with middle splitter box. You can use controller with BPFs and preamp. Front-end protections are built-in as well as RX way switching. You are able to share any antenna to any RX at different bands or different antennas at the same band at all outputs.

This is ideal solution for Single OP through SO2R to Multi-Multi, with up to 2 (3) independent RX per band!

Main functions:

Modular 7 RX ANT switch

7 RX antenna inputs
Broad band 0,1 to 30 MHz
NO Band Pass Filters in switch!
Low insertion loss
High Isolation
Internal dummy loads 50 or 75 Ohm / 2W
Simply LC BPF ONLY for dummy load isolation
Internal high voltage/current protections

Electrostatic protection with glim lamps.
Stainless screws.
Quality PTFE SO-239 connector.
IP56 box. Protect against standing water and snow.
Size 25x20 cm.

Controller

Manual rotary switch 7 RX ant + off
Three bands BPF + BYPASS
RX ANT switch for TRX without RX ANT input
Inside:

Three BPFs for 160m-80m-40m and bypass.
High IP3 preamp with 18 dB gain
Variable ATT allows you to set gain of preamp.
IN/OUT protections / limiters.

Remote control version:

DB15 male connecotr for external remote module.
Remote control disable front switches
PTT indication at remote
IRemote controll allows antenna, BPF, preamp and RX way switching

You can use CAT-5 cable - please read this note

Splitter - optional box for two RX per band

link

Broadband: 0.1 MHz to 60 MHz
Splitter or Combiner
Low loss
Protections- high voltage / current
50/75 ohm impedance - easy jumper switch

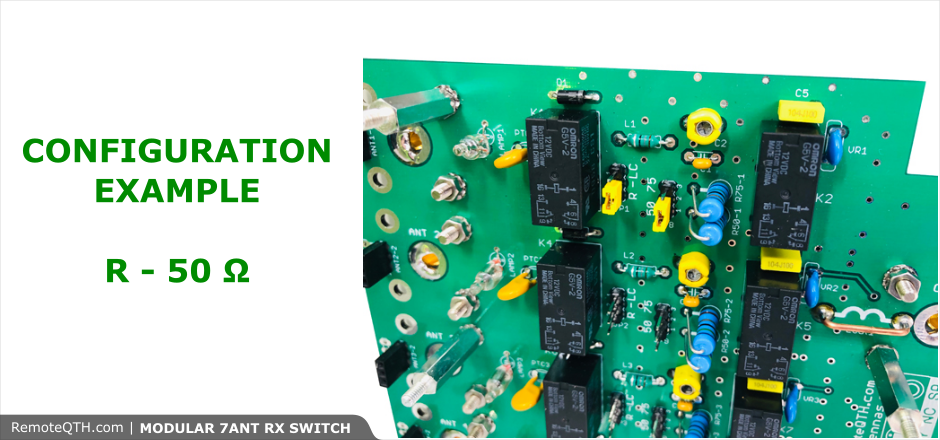

CONFIGURATION EXAMPLE More: in manual

Single Operator - All bands more: in manual
Single Operator 2 RX (SO2R) / Multi Operator 2 RX - without Bi-Dir beverage more: in manual
SO2R / Multi operator 3 RX - without Bi-Dir beverage more: in manual
SO2R / Multi operator - with Bi-Dir beverage more: in manual
Two independant RX on bands more: in manual

Remote Control examples:

7ANT controller must have remote input

Example of User Interfaces with our OLI IP 12 or REMOTIUS 64 controllers

Band Pass Filters characteristic:

160m BPF

80m BPF

40m BPF

Band Pass Filters characteristic with preamplifier:

Option - Common-mode current choke to ham shack:

Link to CMCC

CMCC	CMCC 1 to 3 port

Download

7ANT RX SWITCH
Manual in WiKi	WiKi
RF Switch board rev 0.2	sch	pcb	197
Controller front panel	sch	pcb
Controller connector panel	sch	pcb
Controller RX way switching	sch	pcb

We believe open source is a better way of doing things. View and download the Shield Schematic and PCB Kicad/Eagle CAD files, LibreCAD .DXF, or Inkscape .SVG files. The hardware designs are released under the Attribution-NonCommercial 2.0 Generic

Users photos

At TM0T	At TM0T	At TM0T
At TM0T	At TM0T	At TM0T

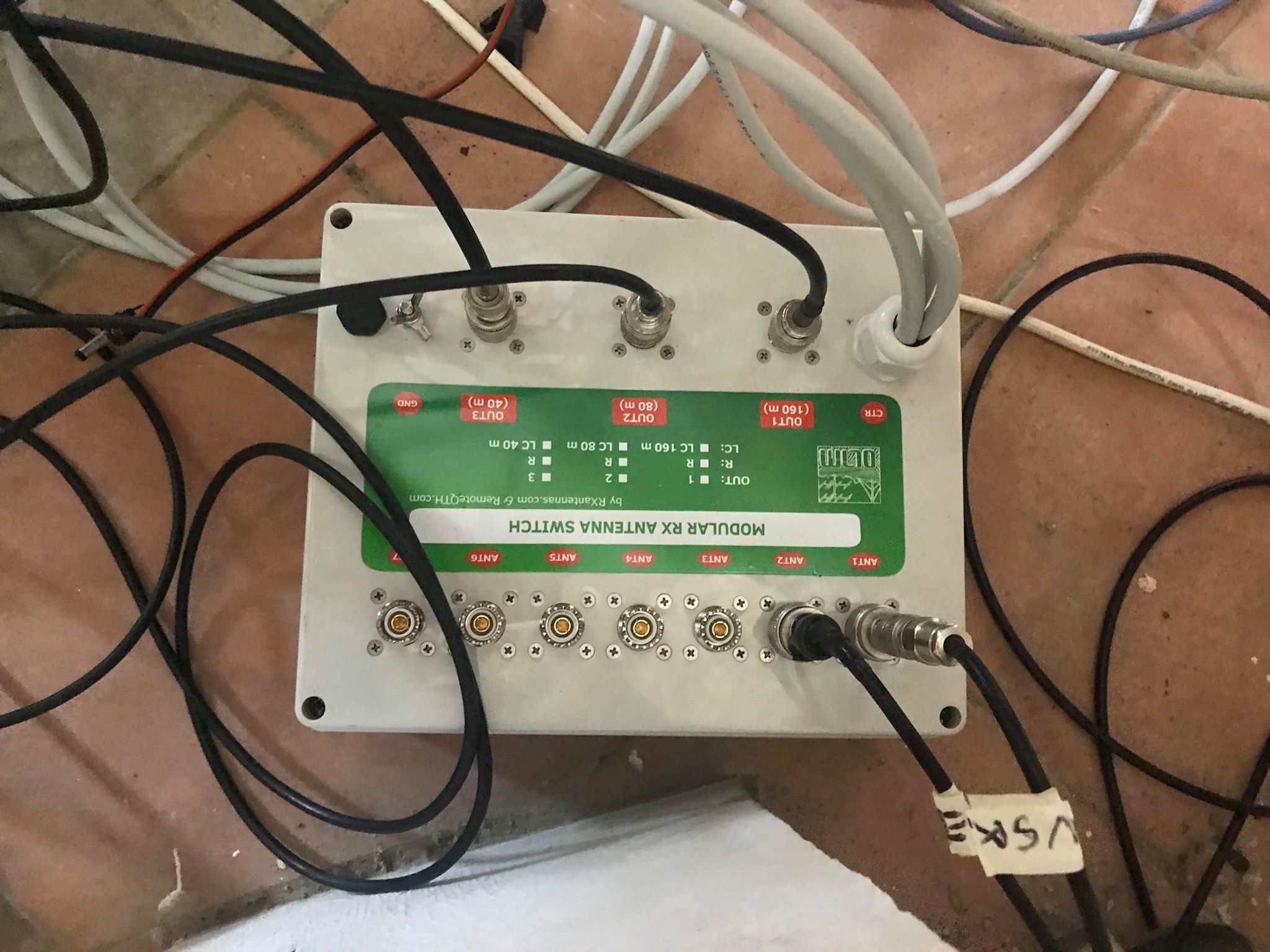

At D4C by PY2LED

At PY0F

Pse visit web

At PY0F

User review

Andreas, DK4WA @ DP9A: Your products are excellent! Your Modular 7 ANT RX switch system is working great @DP9A! I can also recommend your Single wire beverage/BOG antenna box. Very well manufactured and with very good options regarding the termination resistance and feedline impedance (50/75 Ohm). Also we (DP9A) successful use your Antenna one to two STACK MATCH.
